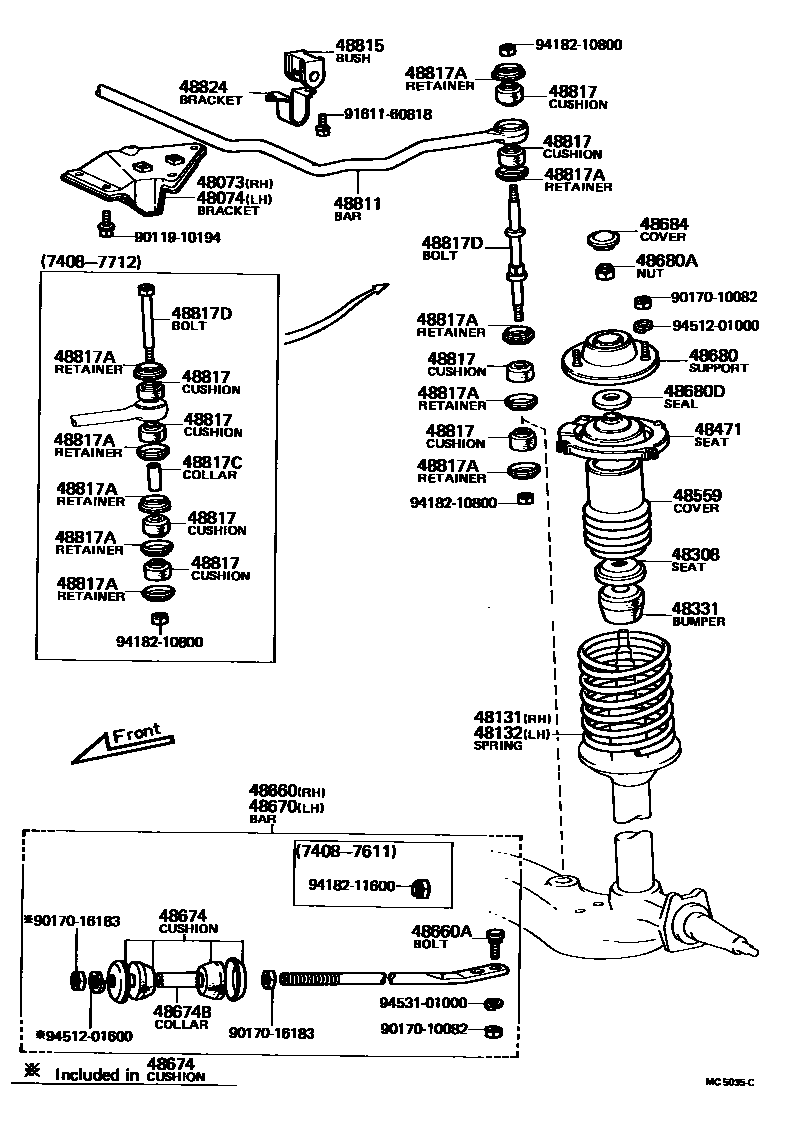

Toyota COROLLA — FRONT SPRING & SHOCK ABSORBER
48073BRACKET SUB-ASSY, STRUT BAR, RH
48074BRACKET SUB-ASSY, STRUT BAR, LH
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48308SEAT SUB-ASSY, BUMPER FRONT
48331BUMPER, FRONT SPRING, NO.1
48471SEAT, FRONT SPRING, UPPER
48559COVER, SHOCK ABSORBER, DUST
48660BAR ASSY, STRUT, RH
48660ABOLT(FOR STRUT BAR SETTING)
48670BAR ASSY, STRUT, LH
48674CUSHION, STRUT BAR
48674BCOLLAR(FOR STRUT BAR CUSHION)
48680SUPPORT ASSY, FRONT SUSPENSION
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
48684COVER, BEARING DUST
48811BAR, STABILIZER, FRONT
OD=21
OD=21
OD=17
OD=17
OD=18
OD=18
48815BUSH, FRONT STABILIZER BAR, NO.1
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
T=1.2
T=1.0
48817CCOLLAR(FOR STABILIZER BAR)
48817DBOLT(FOR FRONT STABILIZER)
48824BRACKET, STABILIZER, FRONT
9011910194
main90119-10194
9017010082
main90170-10082
9017016183
main90170-16183
9161160818
main91611-60818
9418210800
main94182-10800
9418211600
main94182-11600
9451201000
main94512-01000
9451201600
main94512-01600
9453101000
main94531-01000
33 parts on this diagram · 3 diagrams in section
FRONT SPRING & SHOCK ABSORBER for Toyota COROLLA
This section contains 56 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota COROLLA. Key components include: SHELL SUB-ASSY, W/STEERING KNUCKLE, RH, ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT), VALVE SUB-ASSY, SHOCK ABSORBER PISTON, COLLAR, ABSORBER PISTON VALVE, SPRING, SHOCK ABSORBER PISTON VALVE.
