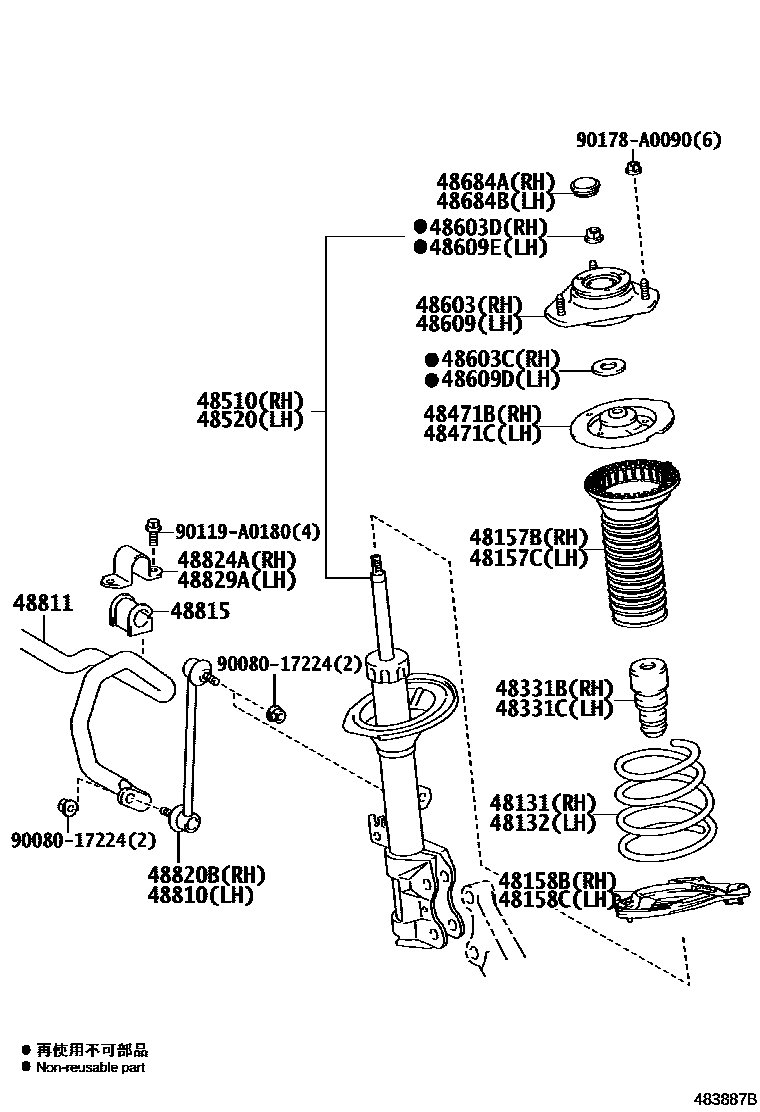

Toyota COROLLA — FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-02M70iZRE172..6F..STD201608

main48131-02M90iZRE172..4FC;ZRE172..ECO,ECOSW,LE,S201308-201608

main48131-02M60iZRE172..6F..S..USA201608

SPORT PLUS PACKAGE

main48131-02M80iZRE172..CVT..S201308-201608

SPORT PLUS PACKAGE

48132SPRING, FRONT COIL, LH

main48131-02M70iZRE172..6F..STD201308-201608

main48131-02M90iZRE172..CVT..STD;ZRE172..ECO,ECOSW,LE,S201608

main48131-02M60iZRE172..6F..S201308-201608

SPORT PLUS PACKAGE

main48131-02M80iZRE172..CVT..S..USA201608

SPORT PLUS PACKAGE

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-02180iZRE172201308-201608

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-02180iZRE172201608

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-02120iZRE172201608

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-02120iZRE172201608

48331BBUMPER, FRONT SPRING, RH

main48331-02110iZRE172201308-201608

48331CBUMPER, FRONT SPRING, LH

main48331-02110iZRE172201308-201608

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-02120iZRE172201608

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-02120iZRE172201308-201608

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z146iZRE172201308-201608

MARK 48510-02A90

main48510-8Z298iZRE172201608

MARK 48510-02F80

main48510-8Z147iZRE172..S201308-201608

MARK 48510-02B00,SPORT PACKAGE

main48510-8Z297iZRE172..S201608

MARK 48510-02F70,SPORT PLUS PACKAGE

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-8Z034iZRE172201308-201608

MARK 48520-02A90

main48520-8Z155iZRE172201608

MARK 48520-02F80

main48520-8Z035iZRE172..S201308-201608

MARK 48520-02B00,SPORT PACKAGE

main48520-8Z154iZRE172..S201608

MARK 48520-02F70,SPORT PACKAGE

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-02190iZRE172201308-201608

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22002iZRE172201308-201608

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90080-17217iZRE172201608

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-02190iZRE172201308-201608

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22002iZRE172201308-201608

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90080-17217iZRE172201308-201608

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52010iZRE172201608

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52010iZRE172201308-201608

48810LINK ASSY, FRONT STABILIZER, LH

main48820-02030iZRE172201308-201608

48811BAR, STABILIZER, FRONT

main48811-AB011iZRE172201608

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-02100×2iZRE172201308-201608

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-02030iZRE172201308-201608

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-06020iZRE172201308-201608

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-06020iZRE172201308-201608

9008017224

main90080-17224

90119A0180

main90119-A0180

90178A0090

main90178-A0090

29 parts on this diagram · 1 diagram in section
