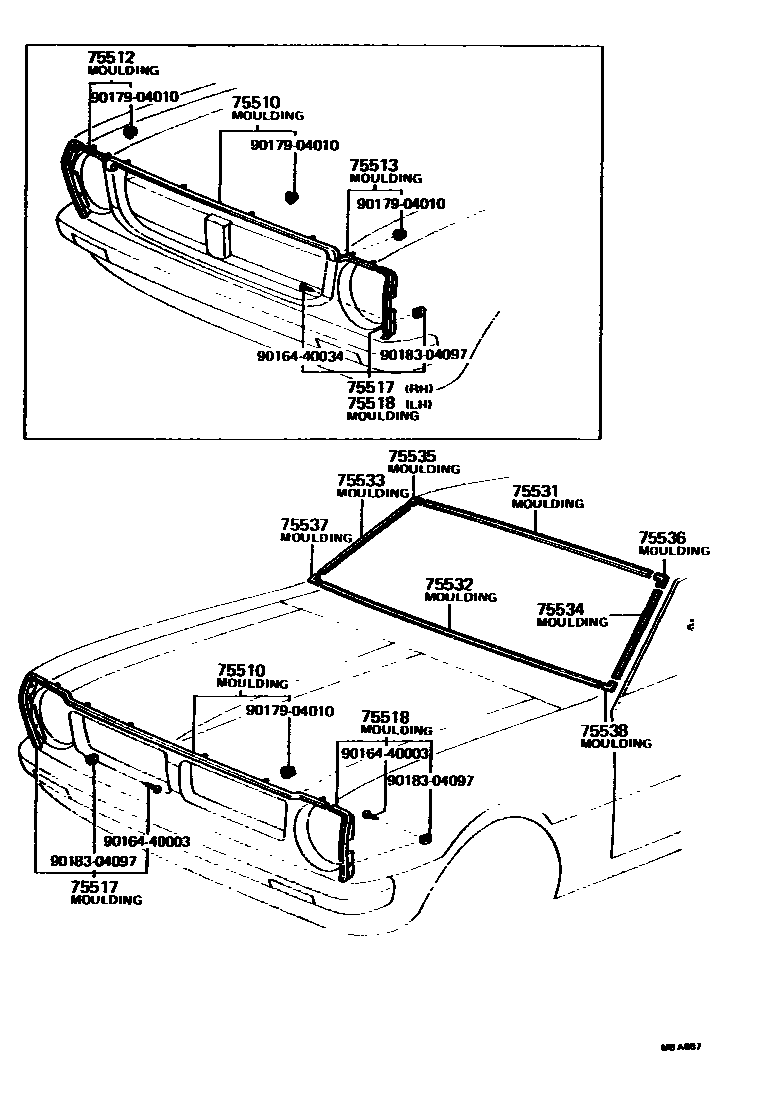

Toyota COROLLA — FRONT MOULDING

75510MOULDING ASSY, RADIATOR GRILLE OPENING, UPPER

main75770-19015iKE3#;TE31..SPL197408-197808

main75770-19025iTE3#..DLX,SR5,STD197408-197701

main75770-19055iTE3#..DLX,SR5,STD197701-197808

main75770-19105iKE30,TE3#197808-197908

75512MOULDING, RADIATOR GRILLE OPENING, RH

main75076-19025iTE3#..DLX,SR5,STD197408-197808

main75780-19035iKE30,TE3#197808-197908

75513MOULDING, RADIATOR GRILLE OPENING, LH

main75077-19025iTE3#..DLX,SR5,STD197408-197808

main75790-19035iKE30,TE3#197808-197908

75517MOULDING, RADIATOR GRILLE OPENING LOWER, RH

main75601-19015iKE3#,TE3#197408-197808

main75601-19045iKE30,TE3#197808-197908

75518MOULDING, RADIATOR GRILLE OPENING LOWER, LH

main75602-19015iKE3#,TE3#197408-197808

main75602-19045iKE30,TE3#197808-197908

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-12120iTE3#..DLX,SR5;KE30,TE31..SPL..USA197808-197908

sub75575-12040

main75571-12090iKE50,TE51197603-197908

75532MOULDING, WINDSHIELD, LOWER

main75535-12050iKE30..USA;TE31..MTM;TE31..A40..SPL..CND;TE31..A40..(DLX,STD);KE3#,TE37,38..DLX,SR5,STD197408-197808

main75535-12070iKE50,TE51197603-197908

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-12140iKE30..USA;TE31..MTM;TE31..A40..SPL..CND;TE31..A40..(DLX,STD);KE3#,TE37,38..DLX,SR5,STD197408-197808

main75533-12150iKE50,TE51197603-197908

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75533-12140iKE30..USA;TE31..MTM;TE31..A40..SPL..CND;TE31..A40..(DLX,STD);KE3#,TE37,38..DLX,SR5,STD197408-197808

main75533-12150iKE50,TE51197603-197908

75535MOULDING, WINDSHIELD CORNER, UPPER RH

main75541-12030iKE50,TE51197603-197908

main75541-12050iKE30..USA;TE31..MTM;TE31..A40..SPL..CND;TE31..A40..(DLX,STD);KE3#,TE37,38..DLX,SR5,STD197408-197808

75536MOULDING, WINDSHIELD CORNER, UPPER LH

main75541-12030iKE50,TE51197603-197908

main75541-12050iTE3#..DLX,SR5;KE30,TE31..SPL..USA197808-197908

75537MOULDING, WINDSHIELD CORNER, LOWER RH

main75543-12010iTE3#..DLX,SR5;KE30,TE31..SPL..USA197808-197908

main75543-12030iKE50,TE51197603-197908

75538MOULDING, WINDSHIELD CORNER, LOWER LH

main75543-12010iTE3#..DLX,SR5;KE30,TE31..SPL..USA197808-197908

main75543-12030iKE50,TE51197603-197908

9016440003

main90164-40003

9016440034

main90164-40034

9017904010

main90179-04010

9018304097

main90183-04097

17 parts on this diagram · 1 diagram in section
