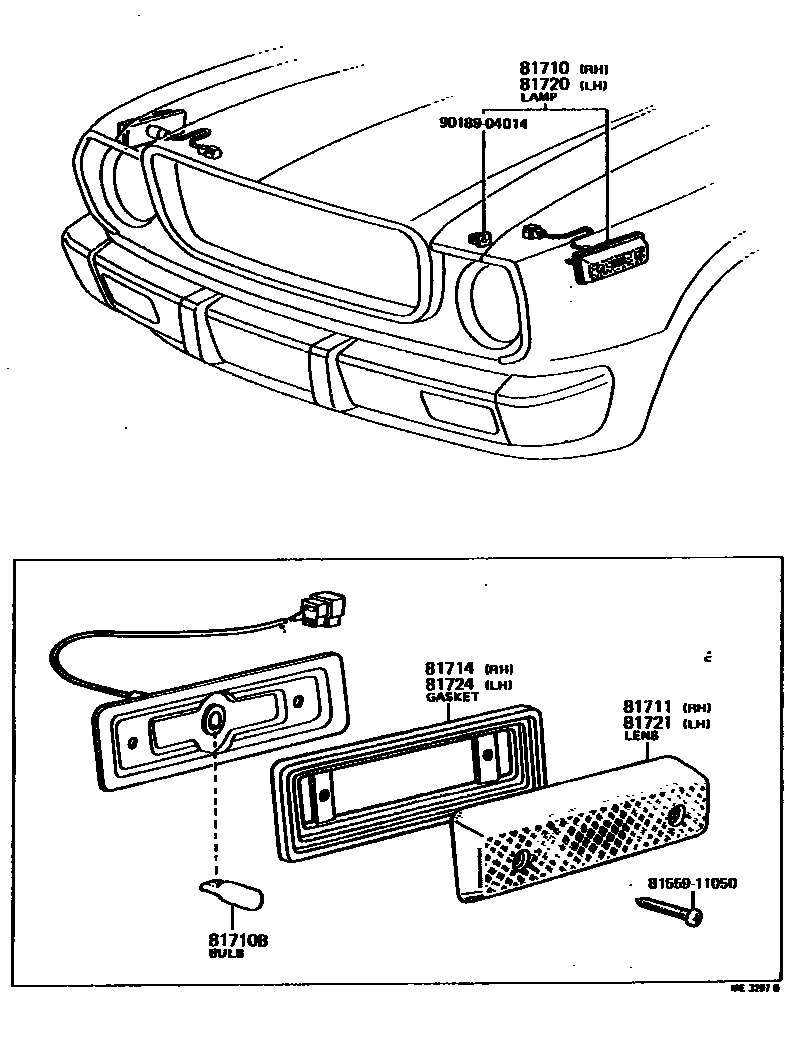

Toyota COROLLA — FRONT MARKER LAMP

81710LAMP ASSY, FRONT MARKER, RH

main81730-19225i197408-197708

main81730-19226i197708-197908

main81730-19265i197603-197708

main81730-19266i197708-197908

81710BBULB, FRONT MARKER LAMP

main99132-12050×2i197408-197908

12V 5W,12V 5W

main99132-12080×2i197603-197908

12V 8W,12V 8W

81711LENS, FRONT MARKER LAMP, RH

main81731-12090i197408-197908

main81731-14040i197603-197908

81714GASKET, FRONT MARKER LAMP BODY, RH

main81734-12090i197408-197908

main81734-12130i197603-197908

81720LAMP ASSY, FRONT MARKER, LH

main81740-19205i197408-197708

main81740-19206i197708-197908

main81740-19245i197603-197708

main81740-19246i197708-197908

81721LENS, FRONT MARKER LAMP, LH

main81741-12090i197408-197908

main81741-14040i197603-197908

81724GASKET, FRONT MARKER LAMP BODY, LH

main81744-12090i197408-197908

main81744-12130i197603-197908

8155911050MOULDING, REAR COMBINATION LAMP, RH

main81559-11050

9018904014

main90189-04014

9 parts on this diagram · 2 diagrams in section

FRONT MARKER LAMP for Toyota COROLLA

This section contains 17 genuine Toyota parts for the FRONT MARKER LAMP system of the Toyota COROLLA. Key components include: LAMP ASSY, FRONT MARKER, RH, BULB, FRONT MARKER LAMP, LENS, FRONT MARKER LAMP, RH, GASKET, FRONT MARKER LAMP LENS, RH, GASKET, FRONT MARKER LAMP BODY, RH.
