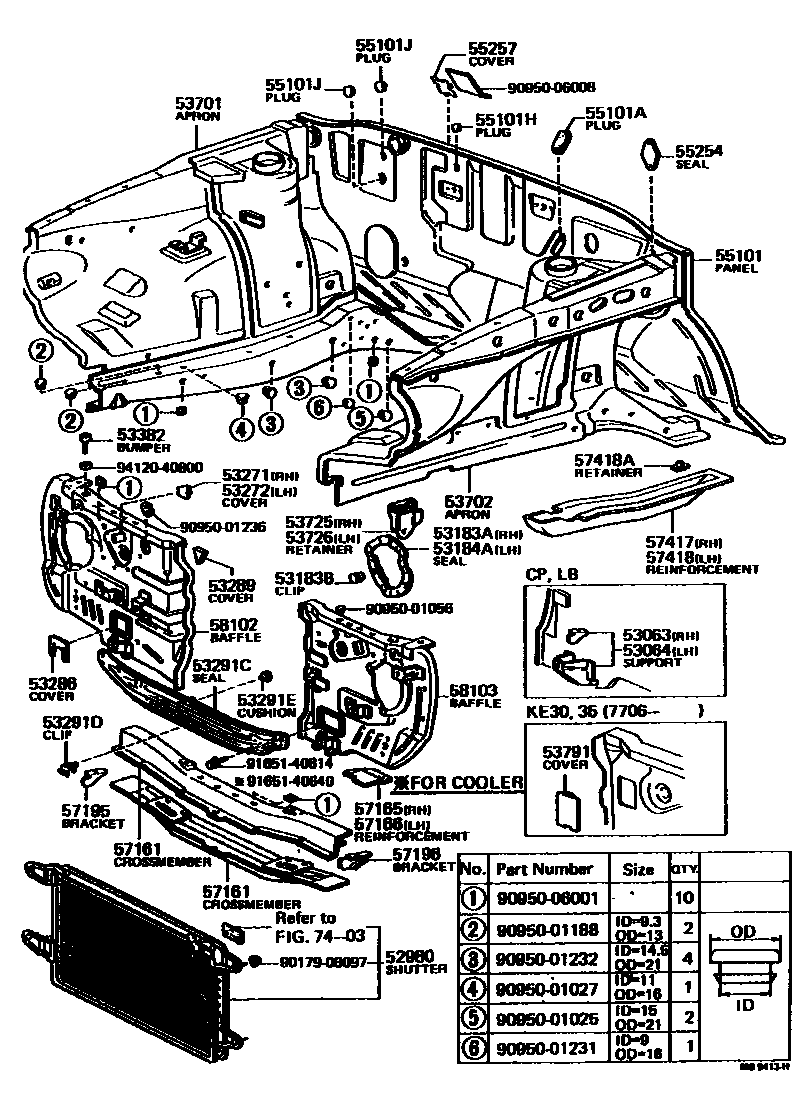

Toyota COROLLA — FRONT FENDER APRON & DASH PANEL

52980SHUTTER ASSY, RADIATOR INTAKE AIR

main52980-19015iTE3#,51..DLX,SR5,STD197612-197708

FOR CANADA

sub52980-12010

53063SUPPORT SUB-ASSY, FRONT ENERGY ABSORBER, RH

main53063-12900iKE50,TE51197603-197908

53064SUPPORT SUB-ASSY, FRONT ENERGY ABSORBER, LH

main53064-12900iKE50,TE51197603-197908

53183ASEAL, HEADLAMP COVER, RH

main53183-12020iKE30,TE3#197712-197908

main53183-12030iKE50,TE51197802-197908

53183BCLIP(FOR HEADLAMP COVER SEAL)

main90467-08002×6iKE30,TE3#197712-197801

main90467-08008×6iKE30,TE3#197801-197802

53184ASEAL, HEADLAMP COVER, LH

main53183-12030iKE50,TE51197802-197908

main53184-12020iKE30,TE3#197712-197908

53271COVER, HORN HOLE, RH

main53271-12010iTE3#..DLX,SR5197805-197908

main53271-12020iTE31..SPL;KE30,50,TE51197805-197908

53272COVER, HORN HOLE, LH

main53272-12010iKE30,50,TE3#,51197805-197908

53286COVER, FRONT BUMPER ARM HOLE

main53285-12020×2iKE30,TE3#197712-197908

main53285-12030×2iKE50,TE51197802-197908

53289COVER, RADIATOR SIDE BAFFLE

main53289-12020iKE30,50,TE3#,51197805-197908

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53069-12010iTE3#,51..USA197803-197908

FOR COOLER

main53291-12020iKE30,TE3#197712-197802

53291DCLIP, RADIATOR SUPPORT TO FRAME

main53259-12010iKE30,TE3#197712-197802

53291ECUSHION(FOR RADIATOR SUPPORT TO FRAME)

main90541-10009iTE3#,51197802-197908

53382BUMPER, HOOD, FRONT

main53382-20011×2iKE3#,50,TE3#,51197408-197908

sub53382-90A00

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-12090iKE3#,TE3#197408-197608

sub90950-06003

main53701-12100iTE51197603-197608

sub90950-06003

main53701-12150iKE3#,TE3#197608-197808

main53701-12190iKE50,TE51197608-197808

main53701-12270iKE30,TE3#197808-197908

main53701-12280iKE50,TE51197808-197908

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-12070iKE3#,TE3#197408-197608

sub90950-06003

main53702-12080iTE51197603-197608

sub90950-06003

main53702-12120iKE3#,TE3#197608-197808

main53702-12160iKE50,TE51197608-197808

main53702-12260iKE30,TE3#197808-197908

main53702-12270iKE50,TE51197808-197908

53725RETAINER, FRONT BUMPER STAY, RH

main53707-12040iKE3#,TE3#197408-197908

main53707-12050iKE50,TE51197603-197908

53726RETAINER, FRONT BUMPER STAY, LH

main53708-12040iKE3#,TE3#197408-197908

main53708-12050iKE50,TE51197603-197908

53791COVER, COOL AIR INTAKE HOLE

main53791-12010iKE3#197706-197708

55101PANEL SUB-ASSY, DASH

main55101-12170iKE3#,50197408-197708

sub23921-26011

sub91651-40610

main55101-12171iKE30,50197708-197806

sub90950-06008

main55101-12172iKE30,50197806-197908

main55101-12180iTE3#..DLX,STD197508-197608

main55101-12181iTE3#,51197608-197708

sub23921-26011

sub91651-40610

main55101-12182iTE3#,51197708-197806

sub90950-06008

main55101-12183iTE3#,51197806-197908

main55101-12200iTE3#,51197504-197608

FOR COOLER

main55101-12201iTE3#,51..DLX,SPL,SR5197608-197708

FOR COOLER

sub23921-26011

sub91651-40610

main55101-12202iTE3#,51..USA197708-197806

FOR COOLER

sub90950-06008

main55101-12203iTE3#,51..USA197806-197908

FOR COOLER

55101APLUG, HOLE, NO.1(FOR DASH PANEL)

main90950-01023iTE51;TE3#..DLX,STD197408-197701

L/HEATER

55101HPLUG, HOLE, NO.2(FOR DASH PANEL)

main90950-01013iTE3#,51..A40197505-197908

L/CHOKE WIRE

55101JPLUG, HOLE, NO.3(FOR DASH PANEL)

main90950-01018×2iTE3#197408-197505

L/COOLER,OD=25

sub90950-01866

main90950-01061iTE3#197408-197505

L/COOLER,OD=35

sub90950-01872

55254SEAL, CLUTCH WIRE HOLE

main55255-12020iTE3#,51..A40197408-197908

sub55255-20010

55257COVER, DASH PANEL OPENING

main55257-12010×2iKE30,50,TE3#,51197806-197908

57161CROSSMEMBER, FRONT

main57161-12040iKE30,50,TE3#,51197808-197908

UPPER

main57161-12901iKE3#,50,TE3#,51197408-197808

UPPER

main57162-12902iKE3#,50,TE3#,51197408-197908

LOWER

57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH

main57167-12020iKE3#,50,TE3#,51197408-197808

main57167-12030iKE30,50,TE3#,51197808-197908

57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH

main57168-12020iKE3#,50,TE3#,51197408-197808

main57168-12030iKE30,50,TE3#,51197808-197908

57195BRACKET, FRONT ENERGY ABSORBER SUPPORT, RH

main53263-12010iKE3#,TE3#197602-197908

57196BRACKET, FRONT ENERGY ABSORBER SUPPORT, LH

main53264-12010iKE3#,TE3#197602-197908

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-12010iKE3#,50,TE3#,51197408-197808

main57417-12020iKE30,50,TE3#,51197808-197908

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-12010iKE3#,50,TE3#,51197408-197808

main57418-12020iKE30,50,TE3#,51197808-197908

57418ARETAINER, FRONT FLOOR UNDER REINFORCEMENT, LH

main57321-12010iKE3#,TE3#197408-197502

58102BAFFLE SUB-ASSY, RADIATOR SIDE, RH

main53202-12040iKE3#,TE3#197408-197602

main53202-12070iKE50,TE51197603-197808

main53202-12090iKE3#,TE3#197602-197808

main53202-12110iKE30,TE3#197808-197908

main53202-12120iKE50,TE51197808-197908

58103BAFFLE SUB-ASSY,RADIATOR SIDE, LH

main53203-12040iKE3#,TE3#197408-197601

main53203-12041iKE3#,TE3#197601-197602

main53203-12071iKE50,TE51197603-197808

main53203-12080iKE3#,TE3#197602-197808

main53203-12100iKE30,TE3#197808-197908

main53203-12110iKE50,TE51197808-197908

7403

9017906097

main90179-06097

9095001025

main90950-01025

9095001027

main90950-01027

9095001056

main90950-01056

9095001188

main90950-01188

9095001231

main90950-01231

9095001232

main90950-01232

9095001236

main90950-01236

9095006001

main90950-06001

9095006008

main90950-06008

9165140640

main91651-40640

9165140814

main91651-40814

9412040800

main94120-40800

49 parts on this diagram · 1 diagram in section
