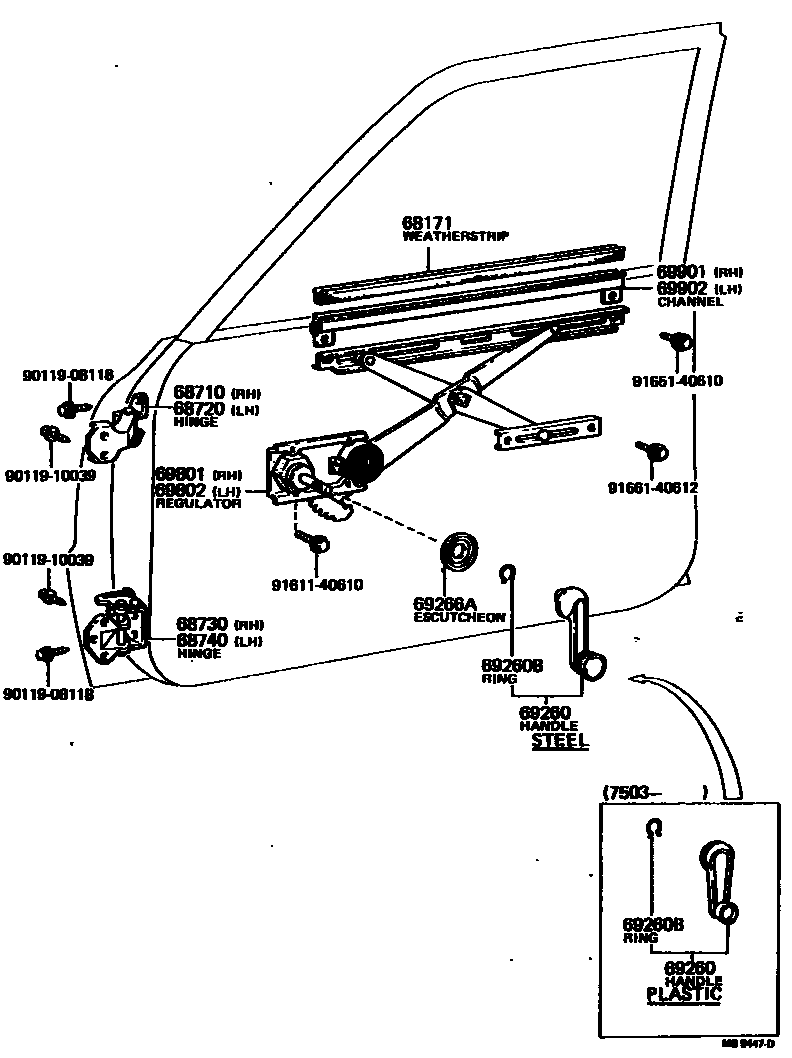

Toyota COROLLA — FRONT DOOR WINDOW REGULATOR & HINGE
68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
BLACK,BLACK
BLUE,BLUE
BEIGE,BEIGE
BROWN,BROWN
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
WHITE
BLACK,BLACK
BLUE,BLUE
BEIGE,BEIGE
BROWN,BROWN
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
9011908118
main90119-08118
9011910039
main90119-10039
9161140610
main91611-40610
9165140610
main91651-40610
9166140612
main91661-40612
17 parts on this diagram · 4 diagrams in section
FRONT DOOR WINDOW REGULATOR & HINGE for Toyota COROLLA
This section contains 37 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota COROLLA. Key components include: PIECE, FRONT DOOR GLASS GUIDE, PLATE, FRONT DOOR GLASS HOLDER, FRONT RH, SPACER, FRONT DOOR GLASS HOLDER PLATE, PLATE, FRONT DOOR GLASS HOLDER, FRONT LH, PLATE, FRONT DOOR GLASS HOLDER, REAR RH.
