Toyota COROLLA — FRONT CLEARANCE LAMP

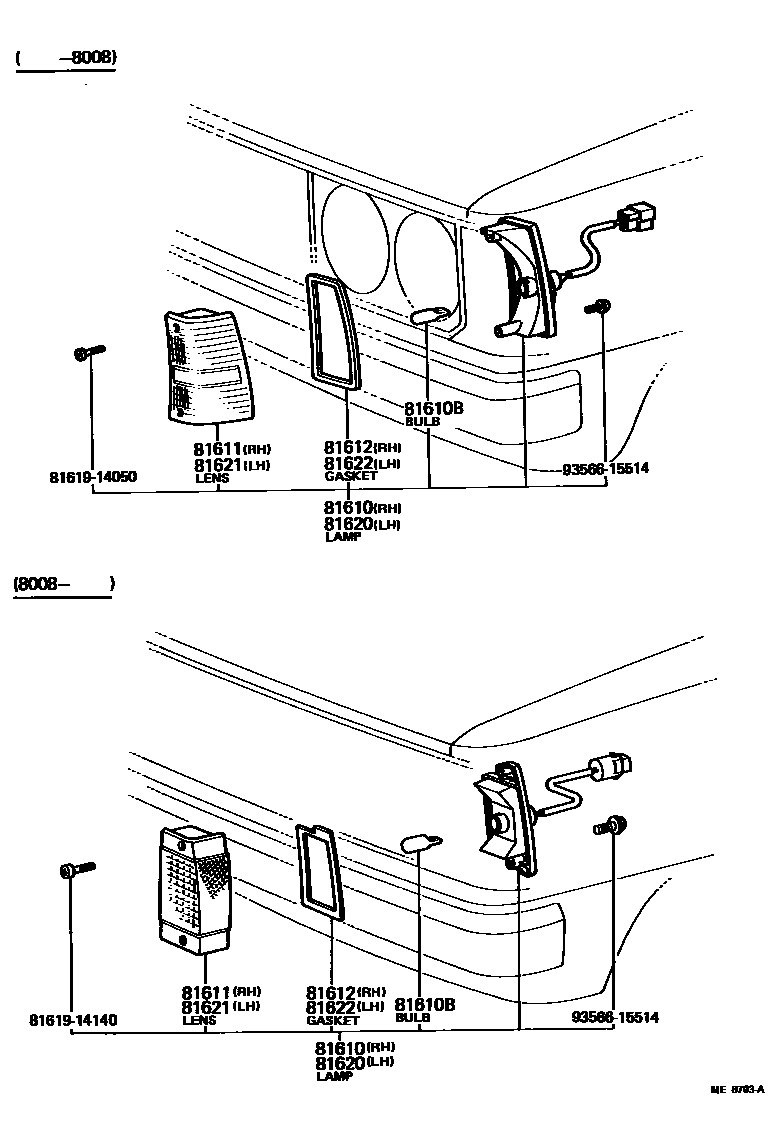

Parts diagram

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-19225i197908-198008

main81610-19226i198008-198108

main81610-19227i198108-198307

main81610-19235i197908-198008

main81610-19236i198008-198108

main81610-19237i198108-198307

main81610-19245i197908-198008

main81610-19246i198008-198108

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main90981-11020i197908-198307

12V 3.8W,12V 3.8W

main99132-11075i197908-198307

12V 7.5W,12V 7.5W

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-12070i197908-198008

main81611-12071i198008-198108

main81611-12072i198108-198307

main81611-12080i197908-198108

main81611-12081i198108-198307

main81611-12090i197908-198108

81612GASKET, PARKING AND CLEARANCE LAMP LENS, RH

main81612-12030i197908-198008

main81612-12070i198008-198108

main81612-12140i198108-198307

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-19225i197908-198008

main81620-19226i198008-198108

main81620-19227i198108-198307

main81620-19235i197908-198008

main81620-19236i198008-198108

main81620-19237i198108-198307

main81620-19245i197908-198008

main81620-19246i198008-198108

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-12070i197908-198008

main81621-12071i198008-198108

main81621-12072i198108-198307

main81621-12080i197908-198108

main81621-12081i198108-198307

main81621-12090i197908-198108

81622GASKET, PARKING AND CLEARANCE LAMP LENS, LH

main81612-12030i197908-198008

main81612-12070i198008-198108

main81612-12140i198108-198307

8161914050

main81619-14050

8161914140

main81619-14140

9356615514

main93566-15514

10 parts on this diagram · 3 diagrams in section

FRONT CLEARANCE LAMP for Toyota COROLLA

This section contains 23 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota COROLLA. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, GASKET, PARKING AND CLEARANCE LAMP LENS, RH, PROTECTOR, CLEARANCE LAMP, RH.
