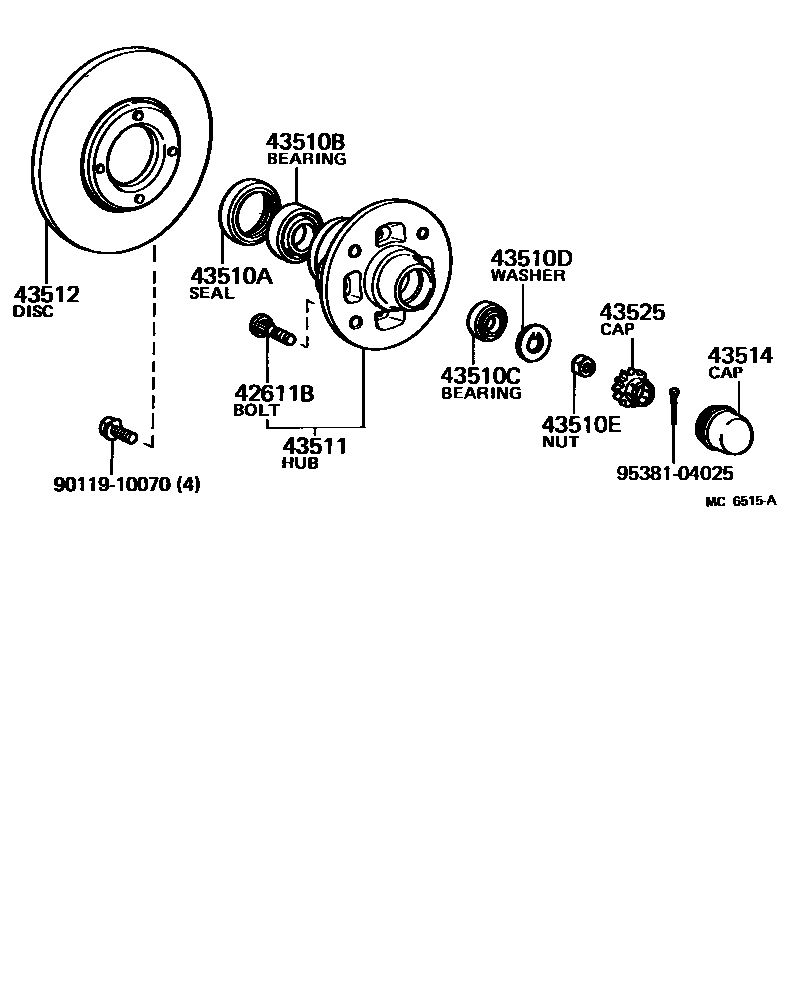

Toyota COROLLA — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02036i197908-198305

main90942-02048i198305-198307

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-41123i197908-198307

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-29068i197908-198307

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-17017i197908-198307

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-16010i197908-198307

43510ENUT (FOR STEERING KNUCKLE)

main90170-16137i197908-198307

43511HUB, FRONT AXLE

main43502-12060i197908-198307

43512DISC, FRONT

main43512-12120i197908-198307

43514CAP, FRONT HUB GREASE

main43514-20010i197908-198307

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-20011i197908-198307

9011910070

main90119-10070

9538104025

main95381-04025

12 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota COROLLA

This section contains 12 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COROLLA. Key components include: BOLT, HUB (FOR FRONT AXLE), SEAL, OIL (FOR FRONT AXLE HUB), BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING), BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING), WASHER, CLAW (FOR STEERING KNUCKLE WASHER).
