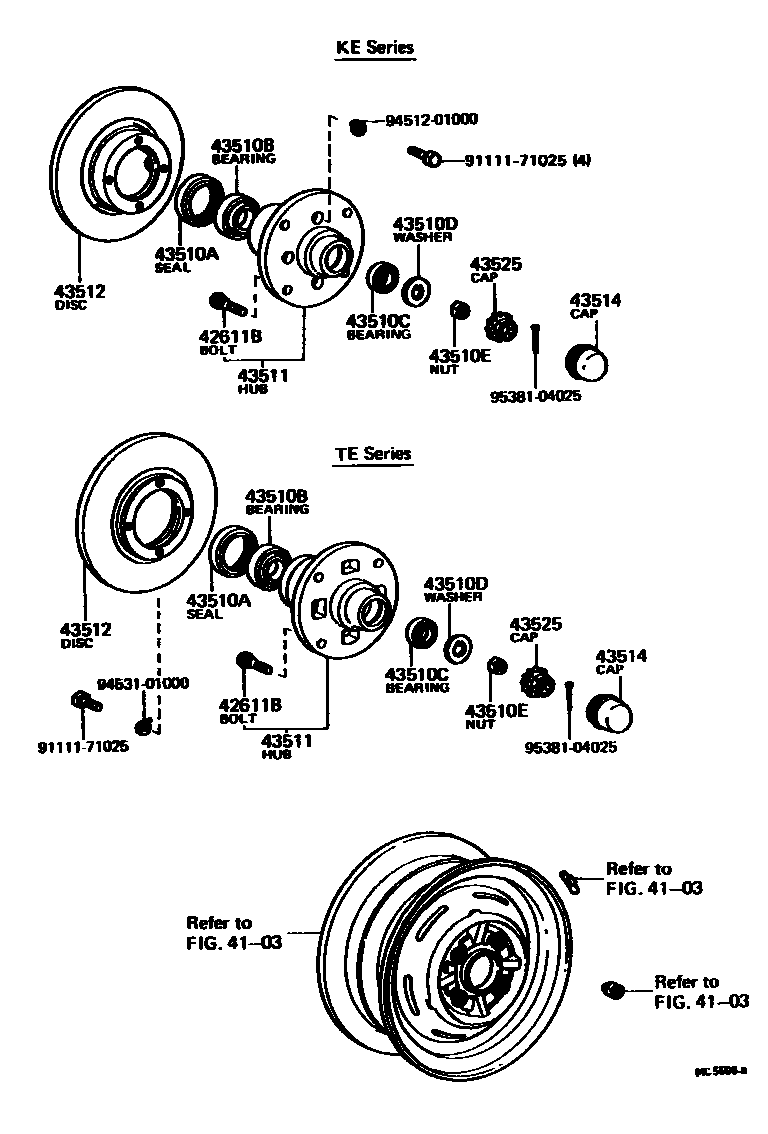

Toyota COROLLA — FRONT AXLE HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02032i197408-197703

12-1.5PX38-25.5

main90942-02036i197703-197908

12-1.5PX33-20.5

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-41123i197408-197908

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-29068i197408-197908

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-17017i197408-197908

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-16010i197408-197908

43510ENUT (FOR STEERING KNUCKLE)

main90170-16137i197408-197908

43511HUB, FRONT AXLE

main43502-12020i197408-197903

main43502-12030i197408-197908

main43502-12040i197903-197908

43512DISC, FRONT

main43512-12060i197408-197908

main43512-20032i197408-197908

43514CAP, FRONT HUB GREASE

main43514-20010i197408-197908

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-20011i197408-197908

9111171025

main91111-71025

9451201000

main94512-01000

9453101000

main94531-01000

9538104025

main95381-04025

15 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota COROLLA

This section contains 15 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COROLLA. Key components include: DISC WHEEL & WHEEL CAP, BOLT, HUB (FOR FRONT AXLE), SEAL, OIL (FOR FRONT AXLE HUB), BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING), BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING).
