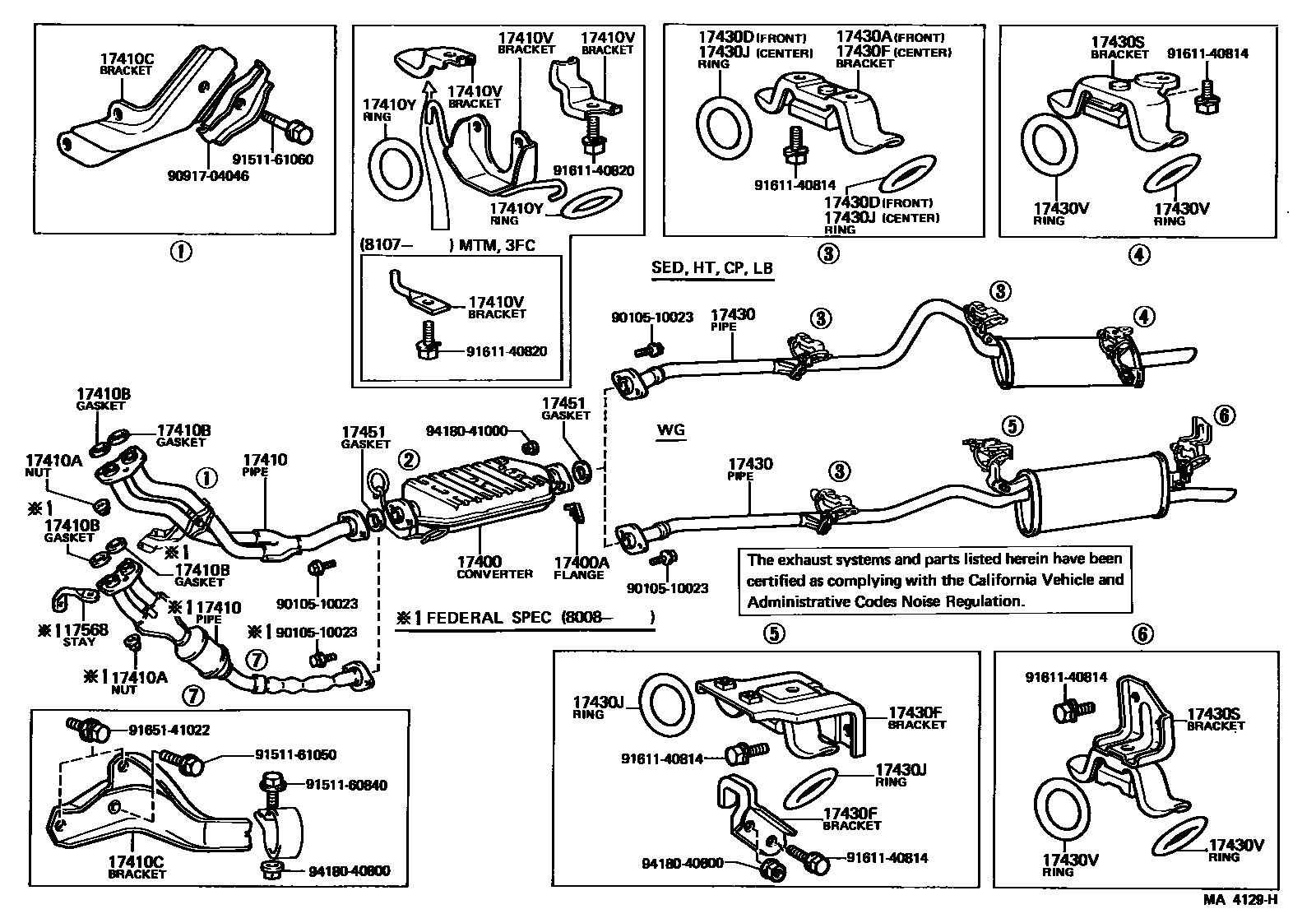

Toyota COROLLA — EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
CALIFORNIA SPEC
CALIFORNIA SPEC
17400AFLANGE, THERMOSENSER INLET
CALIFORNIA SPEC
17410PIPE ASSY, EXHAUST, FRONT
CALIFORNIA SPEC
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
CALIFORNIA SPEC
17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)
CTR
CTR,CALIFORNIA SPEC
CTR
CTR
CTR
RH
RH
RH
LH
17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
RH
LH
17430PIPE ASSY, EXHAUST, TAIL
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
COLD SPEC
COLD SPEC
17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)
UPR
LWR
17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
RR
FR,CALIFORNIA SPEC
FR
FR
17568STAY, EXHAUST PIPE SUPPORT
9010510023
main90105-10023
9091704046
main90917-04046
9151160840
main91511-60840
9151161050
main91511-61050
9151161060
main91511-61060
9161140814
main91611-40814
9161140820
main91611-40820
9165141022
main91651-41022
9418040800
main94180-40800
9418041000
main94180-41000
27 parts on this diagram · 2 diagrams in section
EXHAUST PIPE for Toyota COROLLA
This section contains 36 genuine Toyota parts for the EXHAUST PIPE system of the Toyota COROLLA. Key components include: CONVERTER ASSY, W/CATALYST, FLANGE, THERMOSENSER INLET, PIPE ASSY, EXHAUST, FRONT, NUT, EXHAUST PIPE SET STUD BOLT, GASKET, EXHAUST PIPE.
