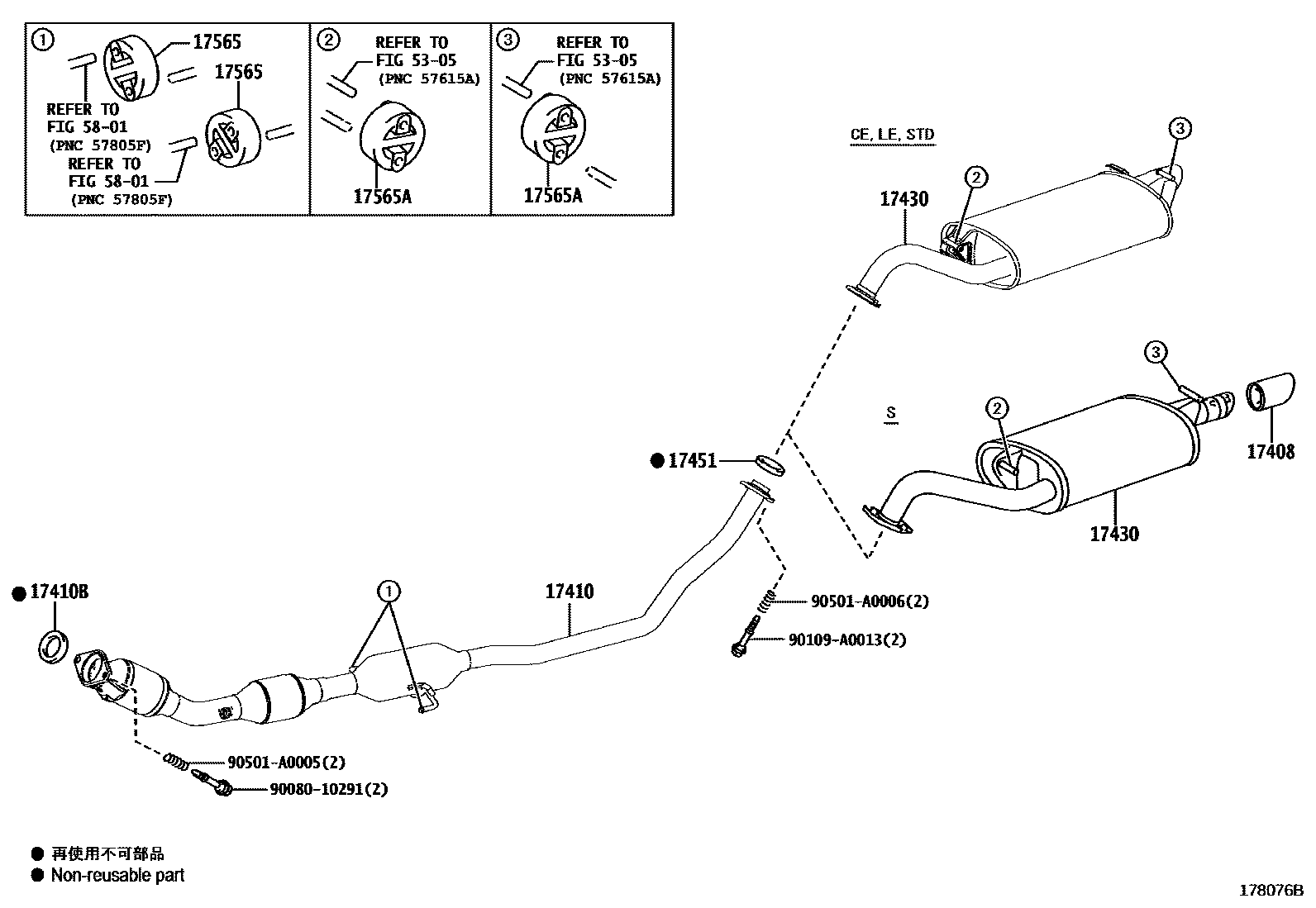

Toyota COROLLA — EXHAUST PIPE
17408BAFFLE SUB ASSY, EXHAUST TAILPIPE
17410PIPE ASSY, EXHAUST, FRONT
COLOMBIA SPEC; PERU SPEC
CHILE SPEC
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
5305FLOOR SIDE MEMBER
5801FLOOR PAN & LOWER BACK PANEL
9008010291
main90080-10291
90109A0013
main90109-A0013
90501A0005
main90501-A0005
90501A0006
main90501-A0006
13 parts on this diagram · 1 diagram in section
EXHAUST PIPE for Toyota COROLLA
This section contains 13 genuine Toyota parts for the EXHAUST PIPE system of the Toyota COROLLA. Key components include: BAFFLE SUB ASSY, EXHAUST TAILPIPE, PIPE ASSY, EXHAUST, FRONT, GASKET, EXHAUST PIPE, PIPE ASSY, EXHAUST, TAIL.
