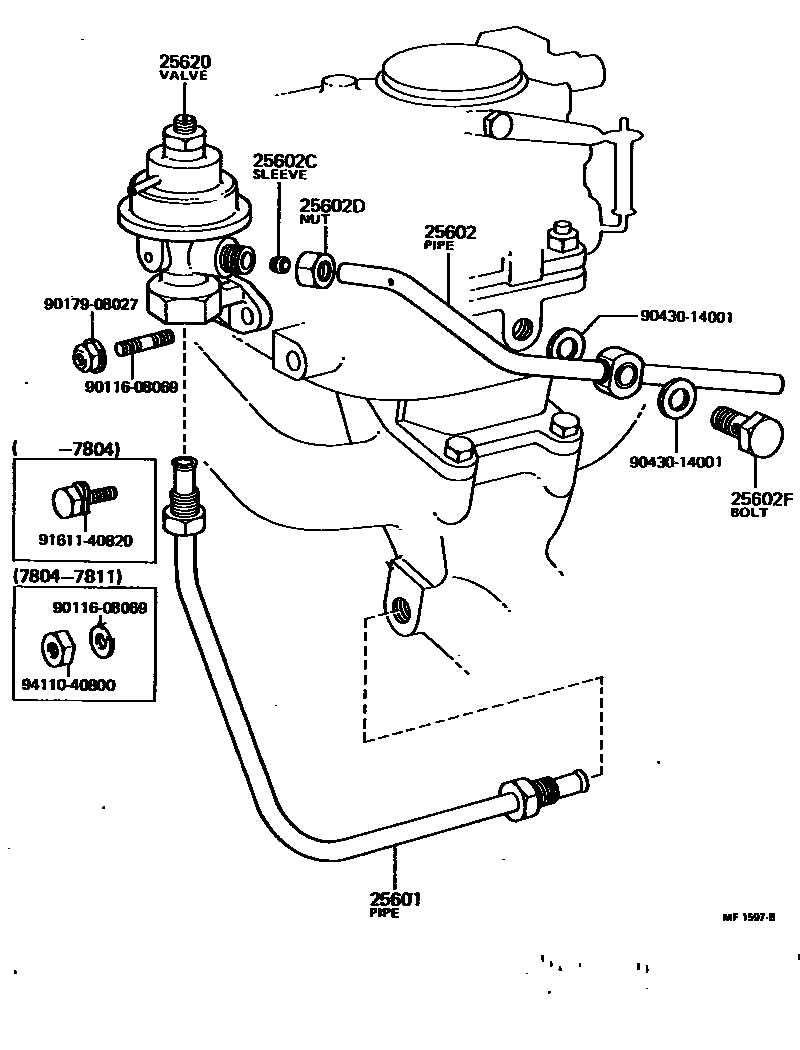

Toyota COROLLA — EXHAUST GAS RECIRCULATION SYSTEM
25601PIPE SUB-ASSY, EGR, NO.1
25602PIPE SUB-ASSY, EGR, NO.2
25602CSLEEVE, BALL(FOR EGR PIPE, NO.2)
25602DNUT, UNION(FOR EGR PIPE, NO.2)
25602FUNION(FOR EGR PIPE, NO.2)
25620VALVE ASSY, EGR
CAL.& H.A.
CALIFORNIA SPEC.
9011608069
main90116-08069
9017908027
main90179-08027
9043014001
main90430-14001
9161140820
main91611-40820
9411040800
main94110-40800
11 parts on this diagram · 4 diagrams in section
EXHAUST GAS RECIRCULATION SYSTEM for Toyota COROLLA
This section contains 19 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota COROLLA. Key components include: PIPE SUB-ASSY, EGR, NO.1, PIPE SUB-ASSY, EGR, NO.2, SLEEVE, BALL(FOR EGR PIPE, NO.2), NUT, UNION(FOR EGR PIPE, NO.2), UNION(FOR EGR PIPE, NO.2).
