Toyota COROLLA — CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD,STD
O/S 0.125
O/S 0.250
11711BEARING, CRANKSHAFT
MARK "1",MARK 1
MARK "2",MARK 2
MARK "3",MARK 3
MARK "1",MARK 1
MARK "2",MARK 2
MARK "3",MARK 3
13011RING SET, PISTON
STD
STD
STD
O/S 0.50
O/S 0.75
O/S 1.00
13041BEARING, CONNECTING ROD
MARK "1",MARK 1
MARK "2",MARK 2
MARK "3",MARK 3
MARK "1",MARK 1
MARK "2",MARK 2
MARK "3",MARK 3
13101PISTON SUB-ASSY, W/PIN
STD,STD
STD
O/S 0.50
O/S 0.75
O/S 1.00
13201ROD SUB-ASSY, CONNECTING
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8,L=23,OD=8
L=18,OD=8,L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13453GEAR, FLYWHEEL RING
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13521PPULLEY, CRANKSHAFT TIMING
13566AGUIDE, TIMING BELT
3101CLUTCH & RELEASE FORK

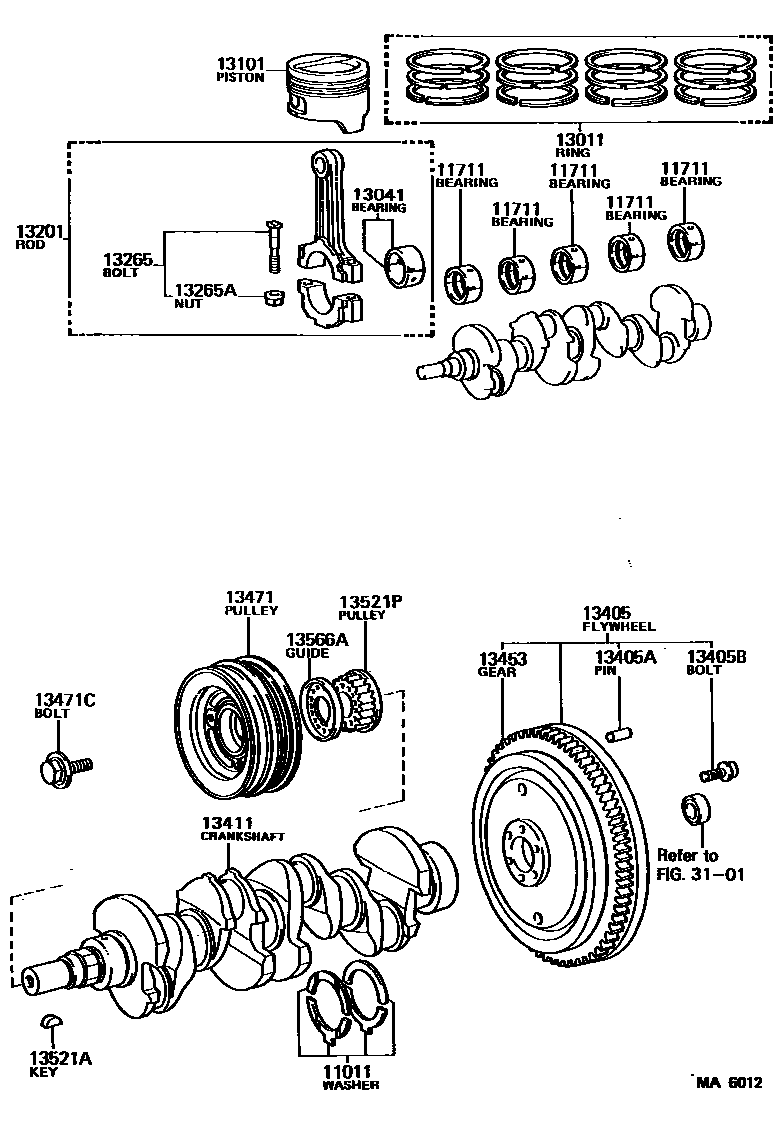

20 parts on this diagram · 2 diagrams in section
CRANKSHAFT & PISTON for Toyota COROLLA
This section contains 27 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota COROLLA. Key components include: WASHER SET, CRANKSHAFT THRUST, BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, RING SET, PISTON, BEARING, CONNECTING ROD.
