Toyota COROLLA — COWL VENTILATOR

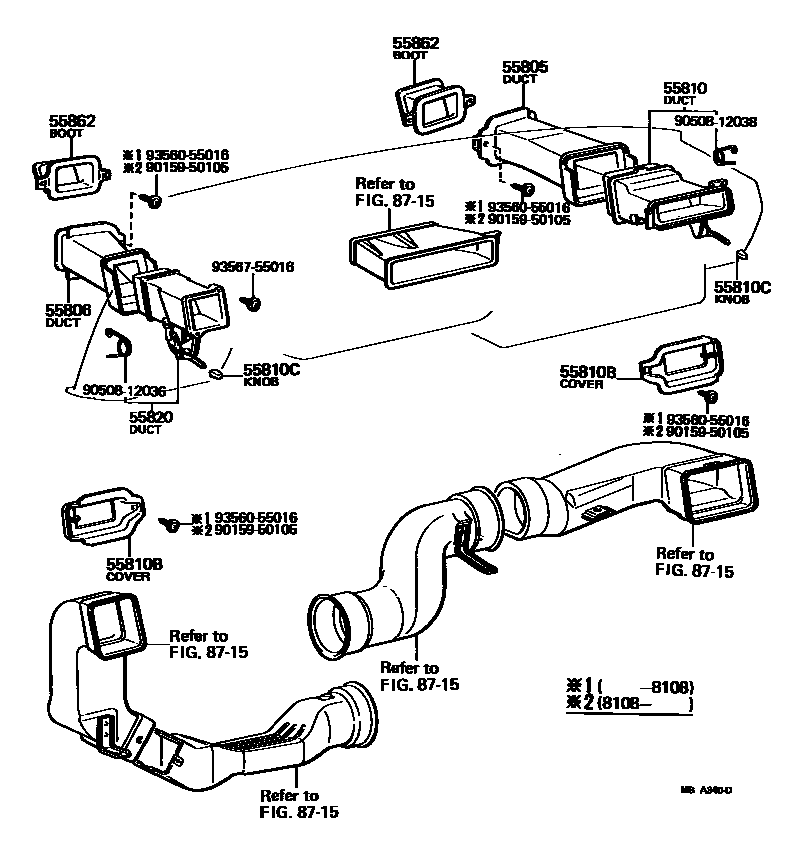

Parts diagram

55805DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH

main55841-12100i197908-198307

main55842-12110i197908-198307

55806DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH

main55841-12110i197908-198307

main55842-12100i197908-198307

55810DUCT ASSY, SIDE VENTILATOR, RH

main55830-12050i197908-198307

main55840-12060i197908-198307

55810BCOVER, SIDE VENTILATOR

main55877-12040i197908-198307

RH

main55877-12050×2i197908-198008

main55878-12030i197908-198307

LH

55810CKNOB SUB-ASSY, CONTROL(FOR VENTILATOR DUCT)

main55905-12050×2i197908-198307

55820DUCT ASSY, SIDE VENTILATOR, LH

main55830-12060i197908-198307

main55840-12050i197908-198307

55862BOOT, SIDE VENTILATOR

main55863-12020i197908-198307

LH

main55863-12030i197908-198307

RH

main55864-12020i197908-198307

RH

main55864-12030i197908-198307

LH

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9015950105

main90159-50105

9050812036

main90508-12036

9050812038

main90508-12038

9356055016

main93560-55016

9356755016

main93567-55016

13 parts on this diagram · 2 diagrams in section

COWL VENTILATOR for Toyota COROLLA

This section contains 14 genuine Toyota parts for the COWL VENTILATOR system of the Toyota COROLLA. Key components include: DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH, DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH, DUCT ASSY, SIDE VENTILATOR, RH, COVER, SIDE VENTILATOR, KNOB SUB-ASSY, CONTROL(FOR VENTILATOR DUCT).
