Toyota COROLLA — COWL VENTILATOR

55450LOUVER ASSY, SIDE VENTILATOR, RH

main55660-12020-01i197408-197701

BLACK,BLACK

main55660-12020-06i197408-197512

BROWN,BROWN

main55660-12040i197701-197908

main55660-12060i197701-197908

55805DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH

main55842-12030i197408-197701

main55842-12040i197603-197701

main55842-12060i197701-197908

55806DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH

main55841-12030i197408-197701

main55841-12040i197603-197701

main55841-12060i197701-197908

main55841-12080i197701-197908

55810DUCT ASSY, SIDE VENTILATOR, RH

main55088-12020i197701-197908

FOR COOLER

main55830-12031i197605-197701

main55832-12050i197701-197908

main55840-12030i197408-197605

main55842-12080i197701-197908

main55846-12040i197701-197908

FOR COOLER

55820DUCT ASSY, SIDE VENTILATOR, LH

main55081-12050i197603-197605

main55081-12051i197605-197701

main55084-12040i197701-197908

FOR COOLER

main55085-12040i197701-197908

FOR COOLER

main55830-12030i197408-197605

main55831-12060i197701-197908

main55831-12080i197701-197908

main55840-12031i197605-197701

55862BOOT, SIDE VENTILATOR

main55843-12030i197408-197908

LH.

main55843-12040i197603-197908

LH.

main55844-12030i197408-197908

RH.

main55844-12040i197603-197908

RH.

55887KNOB, SIDE VENTILATOR BUTTERFLY CONTROL

main55897-12901i197408-197701

9016440050

main90164-40050

9356015014

main93560-15014

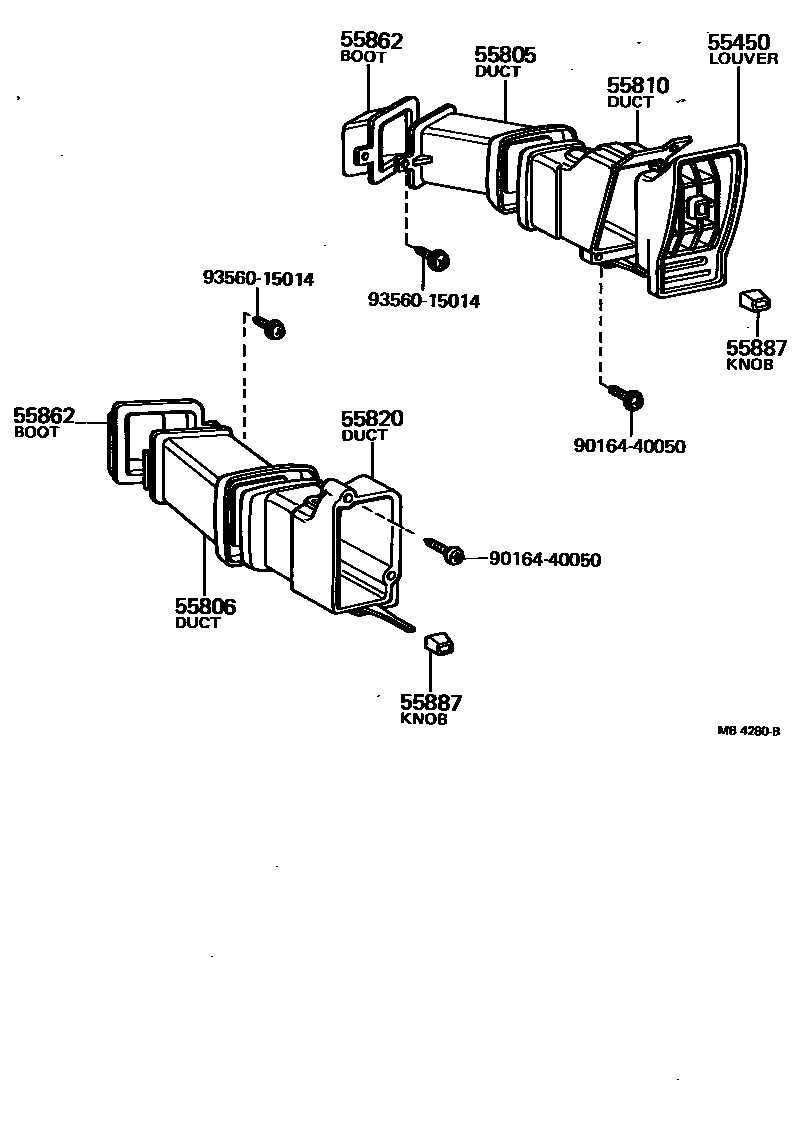

9 parts on this diagram · 3 diagrams in section

COWL VENTILATOR for Toyota COROLLA

This section contains 21 genuine Toyota parts for the COWL VENTILATOR system of the Toyota COROLLA. Key components include: LOUVER ASSY, SIDE VENTILATOR, RH, LOUVER ASSY, SIDE VENTILATOR, LH, DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH, DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH, DUCT ASSY, SIDE VENTILATOR, RH.
