Toyota COROLLA — CONSOLE BOX & BRACKET

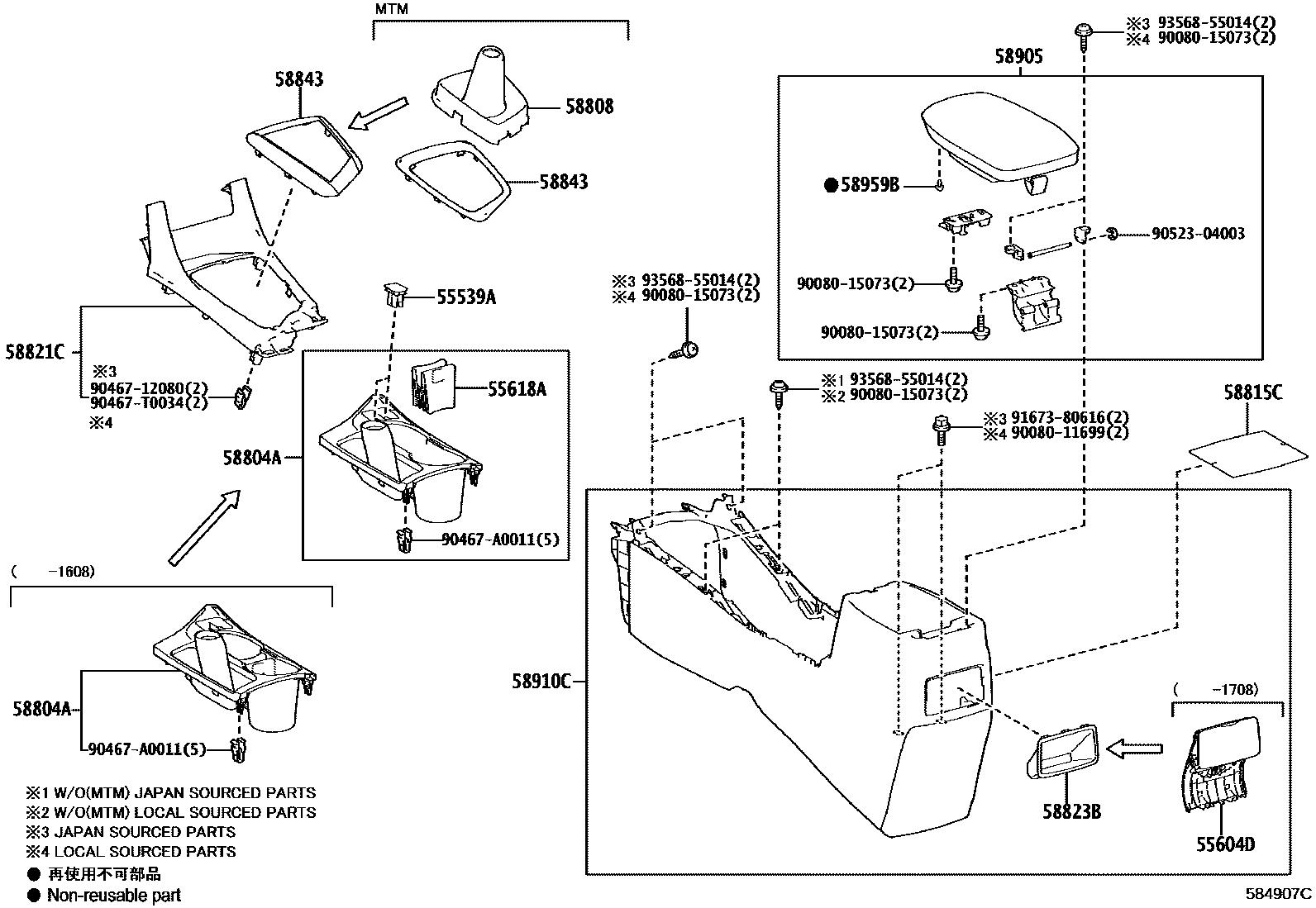

Parts diagram

55539ACOVER, SPARE SWITCH HOLE

main55539-02130-C0i201308-201608

BLACK,TRIM2#,4#,8#

55604DHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-02050-C0i201308-201608

BLACK,TRIM2#,4#,8#

55618AHOLDER, CONSOLE BOX CUP

main55618-02140-C0i201308-201608

BLACK,TRIM2#,4#,8#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-02180-C0i201308-201608

BLACK,TRIM1#

main58804-02290-C0i201308-201608

BLACK,TRIM2#,4#,8#

main58804-02291-C0i201608

BLACK,TRIM2#,4#,8#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-02310-C0i201308-201408

BLACK,TRIM2#,4#,8#

main58808-02310-C1i201408-201608

BLACK/RED,TRIM22

main58808-02310-C3i201408-201608

BLACK/BLACK,TRIM1#

58815CCARPET, CONSOLE BOX

main58815-02280i201608

58821CPANEL, CONSOLE, UPPER

main58821-02690-C0i201308-201608

BLACK,TRIM2#,4#,8#

58823BBOX, CONSOLE COMPARTMENT

main58823-02060i201708

58843BEZEL, SHIFTING HOLE

main58843-02440i201308-201608

main58843-02441i201608

main58843-02450i201308-201608

main58843-02451i201608

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-02810-C0i201608

BLACK,TRIM1#

main58905-02820-A1i201308-201608

IVORY,TRIM0#

main58905-02820-A2i201608

FLAXEN,TRIM0#

main58905-02820-B1i201308-201608

STEEL GRAY,TRIM1#

main58905-02820-C1i201508-201608

BLACK,TRIM4#

main58905-02820-E1i201308-201508

AMBER,TRIM4#

main58905-02830-C1i201308-201408

BLACK,TRIM2#,4#,8#

main58905-02830-C2i201408-201608

BLACK/RED,TRIM22

main58905-02830-C3supersedes 58905-02820-C1i201408-201608

BLACK/GRAY,TRIM2#,4#,8#

58910CBOX ASSY, CONSOLE, REAR

main58910-02360-C0i201308-201608

BLACK,TRIM2#,4#,8#

main58910-02C10-C0i201708

BLACK,TRIM2#,4#,8#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main90541-03078×3i201308-201608

9008011699

main90080-11699

9008015073

main90080-15073

9046712080

main90467-12080

90467A0011

main90467-A0011

90467T0034

main90467-T0034

9052304003

main90523-04003

9167380616

main91673-80616

9356855014

main93568-55014

20 parts on this diagram · 1 diagram in section
