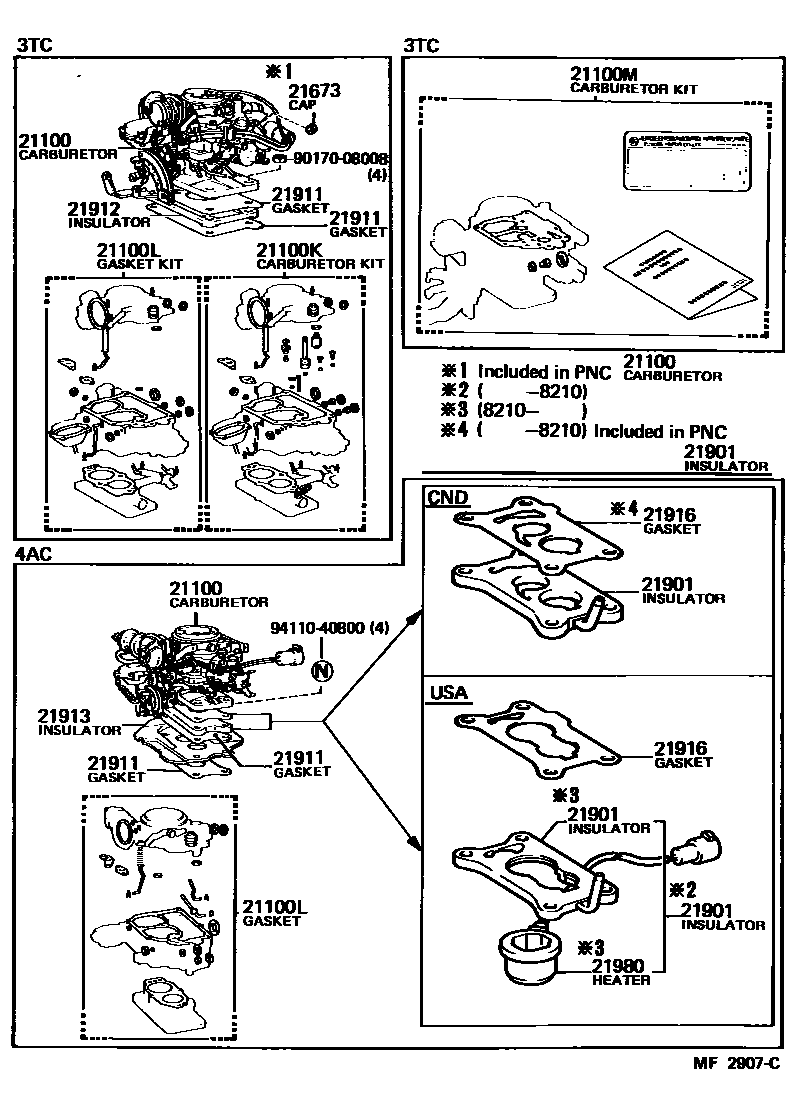

Toyota COROLLA — CARBURETOR ASSEMBLY

21100CARBURETOR ASSY

main21100-16010i198208-198212

main21100-16011i198212-198307

main21100-16020i198208-198307

main21100-28080i197908-198004

main21100-28081i198004-198008

main21100-28090i197908-198004

CALIFORNIA SPEC

main21100-28091i198004-198008

CALIFORNIA SPEC

main21100-28100i197908-198004

main21100-28101i198004-198108

main21100-28102i198108-198208

main21100-28110i197908-198004

HIGH ALTITUDE SPEC

main21100-28111i198004-198008

HIGH ALTITUDE SPEC

main21100-28150i198008-198108

main21100-28160i198008-198108

HIGH ALTITUDE SPEC

main21100-28170i198008-198108

main21100-28180i198008-198108

HIGH ALTITUDE SPEC

main21100-28190i198108-198208

main21100-28200i198108-198208

HIGH ALTITUDE SPEC

main21100-28220i198108-198208

HIGH ALTITUDE SPEC

21100KCARBURETOR KIT

main04211-28030i197908-198004

main04211-28031i198008-198208

main04211-28040i197908-198004

CALIFORNIA SPEC

main04211-28041i198004-198008

CALIFORNIA SPEC

main04211-28090i198008-198108

main04211-28110i198108-198208

21100LGASKET KIT, CARBURETOR

main04212-15032i198208-198307

main04212-15040i198208-198307

main04212-28012i197908-198008

main04212-28021i197908-198004

CALIFORNIA SPEC

main04212-28022i198004-198008

CALIFORNIA SPEC

main04212-28040i198008-198108

main04212-28050i198108-198208

21100MCARBURETOR KIT, HIGH ALTITUDE, PERFORMANCE, MODIFICATION

main04214-28010i198008-198108

main04214-28020i198008-198108

21673CAP, IDLE LIMIT

main21673-38020×2i197908-198008

*CAL&HA

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-15011i198208-198210

main21901-15012i198210-198307

main21901-15030i198210-198307

main21904-15020i198208-198210

21911GASKET, CARBURETOR

main21911-26010×2i197908-198208

main21916-15030×2i198208-198307

21912INSULATOR, CARBURETOR HEAT

main21912-26021i197908-198208

21913INSULATOR, CARBURETOR HEAT, NO.2

main21913-15030i198208-198307

21916GASKET, CARBURETOR, NO.2

main21911-15030i198208-198307

main21914-15020i198210-198307

21980HEATER ASSY, COLD MIXTURE

main21980-15020i198210-198307

9017008008

main90170-08008

9411040800

main94110-40800

13 parts on this diagram · 1 diagram in section

CARBURETOR ASSEMBLY for Toyota COROLLA

This section contains 13 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota COROLLA. Key components include: CARBURETOR ASSY, CARBURETOR KIT, GASKET KIT, CARBURETOR, CARBURETOR KIT, HIGH ALTITUDE, PERFORMANCE, MODIFICATION, CAP, IDLE LIMIT.
