Toyota COROLLA — CARBURETOR ASSEMBLY

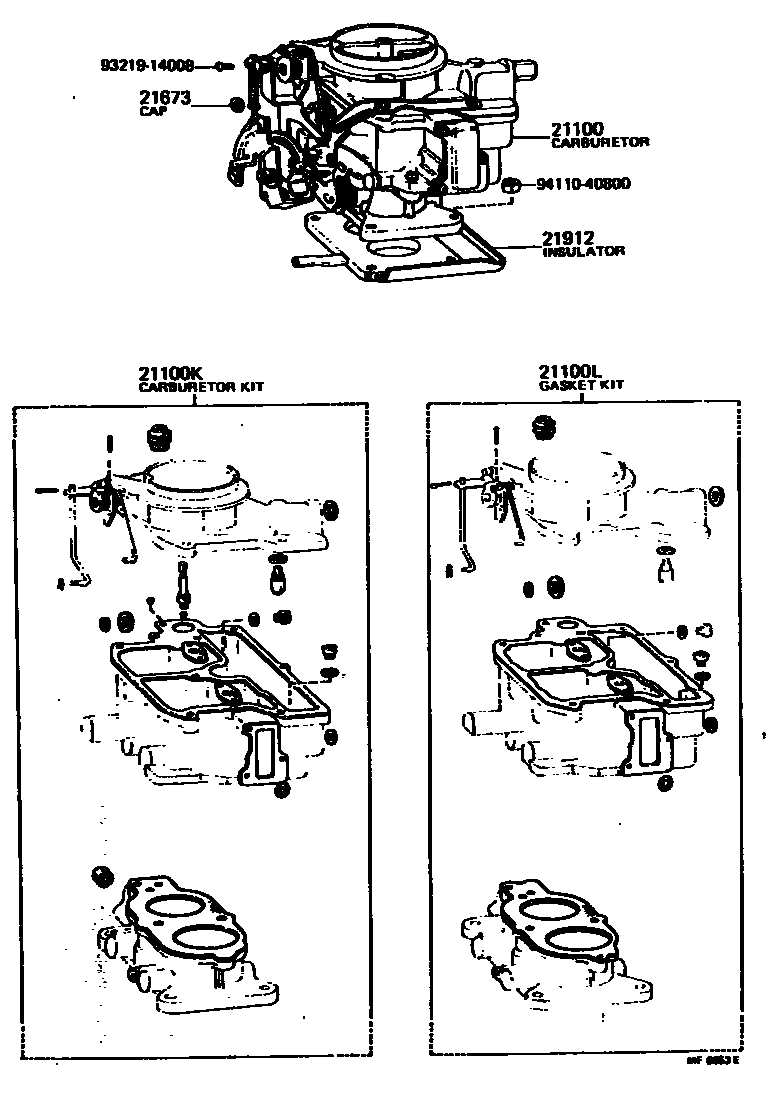

Parts diagram

21100CARBURETOR ASSY

main21100-24018i197408-197508

main21100-24019i197508-197608

main21100-24440i197608-197701

main21100-24441i197701-197706

main21100-24442i197706-197708

main21100-24460i197608-197701

main21100-24461i197701-197708

CANADA SPEC.

main21100-24480i197708-197810

main21100-24481i197810-197908

main21100-26350i197408-197411

main21100-26351i197411-197508

main21100-26352i197508-197511

main21100-26353i197511-197608

main21100-26354i197608-197701

CANADA SPEC.

main21100-26360i197408-197411

main21100-26361i197411-197508

main21100-26362i197508-197511

main21100-26363i197511-197608

main21100-26364i197608-197701

CANADA SPEC.

main21100-26370i197408-197411

CALIFORNIA SPEC.

main21100-26371i197411-197508

CALIFORNIA SPEC.

main21100-26372i197508-197511

CALIFORNIA SPEC.

main21100-26373i197511-197608

CALIFORNIA SPEC.

main21100-26390i197411-197508

CALIFORNIA SPEC.

main21100-26391i197508-197511

CALIFORNIA SPEC.

main21100-26392i197511-197608

CALIFORNIA SPEC.

main21100-26393i197608-197701

CALIFORNIA SPEC.

main21100-26394i197701-197708

CALIFORNIA SPEC.

main21100-26395i197708-197803

CALIFORNIA SPEC.

main21100-26396i197803-197808

CALIFORNIA SPEC.

main21100-26397i197808-197908

CALIFORNIA SPEC.

main21100-26510i197608-197701

main21100-26511i197701-197708

main21100-26512i197708-197803

main21100-26520i197608-197701

main21100-26521i197701-197708

main21100-26522i197708-197803

main21100-26600i197608-197701

HIGH ALTITUDE SPEC.

main21100-26601i197701-197708

HIGH ALTITUDE SPEC.

main21100-26800i197708-197803

main21100-26801i197803-197808

main21100-26802i197808-197908

main21100-26810i197803-197811

main21100-26811i197811-197908

main21100-26820i197803-197811

main21100-26821i197811-197908

21100KCARBURETOR KIT

main04211-24080i197408-197508

main04211-24081i197701-197708

CANADA SPEC.

main04211-24082i197708-197908

main04211-24160i197608-197708

main04211-24161i197708-197908

main04211-26080i197408-197505

main04211-26081i197505-197508

main04211-26082i197608-197701

CANADA SPEC.

main04211-26090i197408-197505

main04211-26100i197408-197505

CALIFORNIA SPEC.

main04211-26170i197608-197708

main04211-26171i197708-197908

main04211-26190i197708-197908

21100LGASKET KIT, CARBURETOR

main04212-24012i197408-197708

main04212-24013i197708-197908

main04212-26030i197408-197508

main04212-26031i197508-197708

main04212-26032i197708-197908

main04212-26060i197708-197908

21673CAP, IDLE LIMIT

main21673-38020i197608-197908

21912INSULATOR, CARBURETOR HEAT

main21912-24016i197408-197701

main21912-24017i197701-197708

CANADA SPEC.

main21912-24100i197608-197708

main21912-24101i197708-197908

main21912-26020i197408-197708

main21912-26030i197708-197908

9321914008

main93219-14008

9411040800

main94110-40800

7 parts on this diagram · 2 diagrams in section

CARBURETOR ASSEMBLY for Toyota COROLLA

This section contains 8 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota COROLLA. Key components include: CARBURETOR ASSY, CARBURETOR KIT, GASKET KIT, CARBURETOR, CAP, IDLE LIMIT, GASKET, CARBURETOR.
