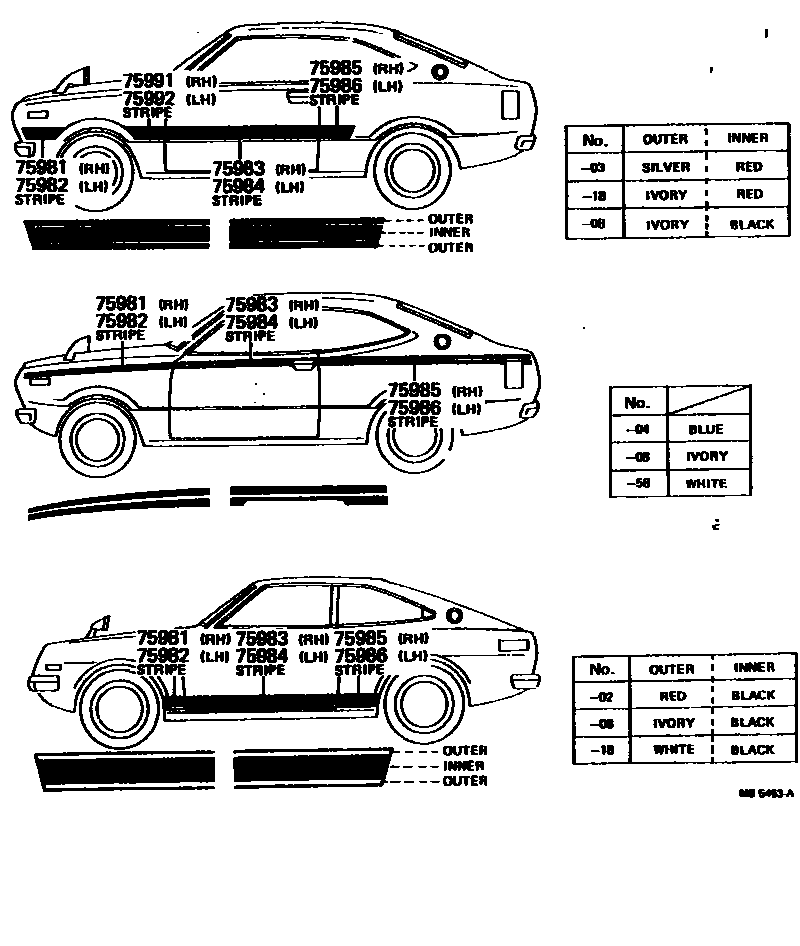

Toyota COROLLA — BODY STRIPE

75981STRIPE, FRONT FENDER, RH NO.1

main75973-12012-02i197603-197606

RED-BLACK,RED/MAROON

main75973-12012-08i197603-197606

IVORY-BLACK,IVORY

main75981-12090-04i197508-197908

BLUE,BLUE

main75981-12090-06i197701-197908

ORANGE,BROWN

main75981-12090-08i197508-197511

IVORY,IVORY

main75981-12090-58i197511-197908

WHITE,IVORY

main75981-12100-03i197408-197508

SILVER-RED,GRAY

main75981-12100-08i197408-197508

IVORY-BLACK,IVORY

main75981-12100-18i197408-197508

IVORY-RED,IVORY

main75981-12110-02i197606-197908

RED-BLACK,RED/MAROON

main75981-12110-08i197606-197606

IVORY-BLACK,IVORY

main75981-12110-18i197606-197908

WHITE-BLACK,IVORY

75982STRIPE, FRONT FENDER, LH NO.1

main75974-12012-02i197603-197606

RED-BLACK,RED/MAROON

main75974-12012-08i197603-197606

IVORY-BLACK,IVORY

main75982-12090-04i197508-197908

BLUE,BLUE

main75982-12090-06i197701-197908

ORANGE,BROWN

main75982-12090-08i197508-197511

IVORY,IVORY

main75982-12090-58i197511-197908

WHITE,IVORY

main75982-12100-03i197408-197508

SILVER-RED,GRAY

main75982-12100-08i197408-197508

IVORY-BLACK,IVORY

main75982-12100-18i197408-197508

IVORY-RED,IVORY

main75982-12110-02i197606-197908

RED-BLACK,RED/MAROON

main75982-12110-08i197606-197606

IVORY-BLACK,IVORY

main75982-12110-18i197606-197908

WHITE-BLACK,IVORY

75983STRIPE, FRONT FENDER, RH NO.2

main75975-12012-02i197603-197606

RED-BLACK,RED/MAROON

main75975-12012-08i197603-197606

IVORY-BLACK,IVORY

main75985-12010-03i197408-197508

SILVER-RED,GRAY

main75985-12010-08i197408-197508

IVORY-BLACK,IVORY

main75985-12010-18i197408-197508

IVORY-RED,IVORY

main75985-12030-04i197508-197908

BLUE,BLUE

main75985-12030-06i197701-197908

ORANGE,BROWN

main75985-12030-08i197508-197511

IVORY,IVORY

main75985-12030-58i197511-197908

WHITE,IVORY

main75985-12040-02i197606-197908

RED-BLACK,RED/MAROON

main75985-12040-08i197606-197606

IVORY-BLACK,IVORY

main75985-12040-18i197606-197908

WHITE-BLACK,IVORY

75984STRIPE, FRONT FENDER, LH NO.2

main75976-12012-02i197603-197606

RED-BLACK,RED/MAROON

main75976-12012-08i197603-197606

IVORY-BLACK,IVORY

main75986-12010-03i197408-197508

SILVER-RED,GRAY

main75986-12010-08i197408-197508

IVORY-BLACK,IVORY

main75986-12010-18i197408-197508

IVORY-RED,IVORY

main75986-12030-04i197508-197908

BLUE,BLUE

main75986-12030-06i197701-197908

ORANGE,BROWN

main75986-12030-08i197508-197511

IVORY,IVORY

main75986-12030-58i197511-197908

WHITE,IVORY

main75986-12040-02i197606-197908

RED-BLACK,RED/MAROON

main75986-12040-08i197606-197606

IVORY-BLACK,IVORY

main75986-12040-18i197606-197908

WHITE-BLACK,IVORY

75985STRIPE, FRONT DOOR, RH

main75991-12010-03i197408-197508

SILVER-RED,GRAY

main75991-12010-08i197408-197508

IVORY-BLACK,IVORY

main75991-12010-18i197408-197508

IVORY-RED,IVORY

main75991-12030-04i197508-197908

BLUE,BLUE

main75991-12030-06i197701-197908

ORANGE,BROWN

main75991-12030-08i197508-197511

IVORY,IVORY

main75991-12030-58i197511-197908

WHITE,IVORY

main75991-12040-02i197606-197908

RED-BLACK,RED/MAROON

main75991-12040-08i197606-197606

IVORY-BLACK,IVORY

main75991-12040-18i197606-197908

WHITE-BLACK,IVORY

main75998-12022-02i197603-197606

RED-BLACK,RED/MAROON

main75998-12022-08i197603-197606

IVORY-BLACK,IVORY

75986STRIPE, FRONT DOOR, LH

main75992-12010-03i197408-197508

SILVER-RED,GRAY

main75992-12010-08i197408-197508

IVORY-BLACK,IVORY

main75992-12010-18i197408-197508

IVORY-RED,IVORY

main75992-12030-04i197508-197908

BLUE,BLUE

main75992-12030-06i197701-197908

ORANGE,BROWN

main75992-12030-08i197508-197511

IVORY,IVORY

main75992-12030-58i197511-197908

WHITE,IVORY

main75992-12040-02i197606-197908

RED-BLACK,RED/MAROON

main75992-12040-08i197606-197606

IVORY-BLACK,IVORY

main75992-12040-18i197606-197908

WHITE-BLACK,IVORY

main75999-12022-02i197603-197606

RED-BLACK,RED/MAROON

main75999-12022-08i197603-197606

IVORY-BLACK,IVORY

75991STRIPE, QUARTER, RH NO.1

main75983-12070-03i197408-197508

SILVER-RED,GRAY

main75983-12070-08i197408-197508

IVORY-BLACK,IVORY

main75983-12070-18i197408-197508

IVORY-RED,IVORY

75992STRIPE, QUARTER, LH NO.1

main75984-12070-03i197408-197508

SILVER-RED,GRAY

main75984-12070-08i197408-197508

IVORY-BLACK,IVORY

main75984-12070-18i197408-197508

IVORY-RED,IVORY

8 parts on this diagram · 1 diagram in section

BODY STRIPE for Toyota COROLLA

This section contains 8 genuine Toyota parts for the BODY STRIPE system of the Toyota COROLLA. Key components include: STRIPE, FRONT FENDER, RH NO.1, STRIPE, FRONT FENDER, LH NO.1, STRIPE, FRONT FENDER, RH NO.2, STRIPE, FRONT FENDER, LH NO.2, STRIPE, FRONT DOOR, RH.
