Toyota COROLLA — BATTERY & BATTERY CABLE

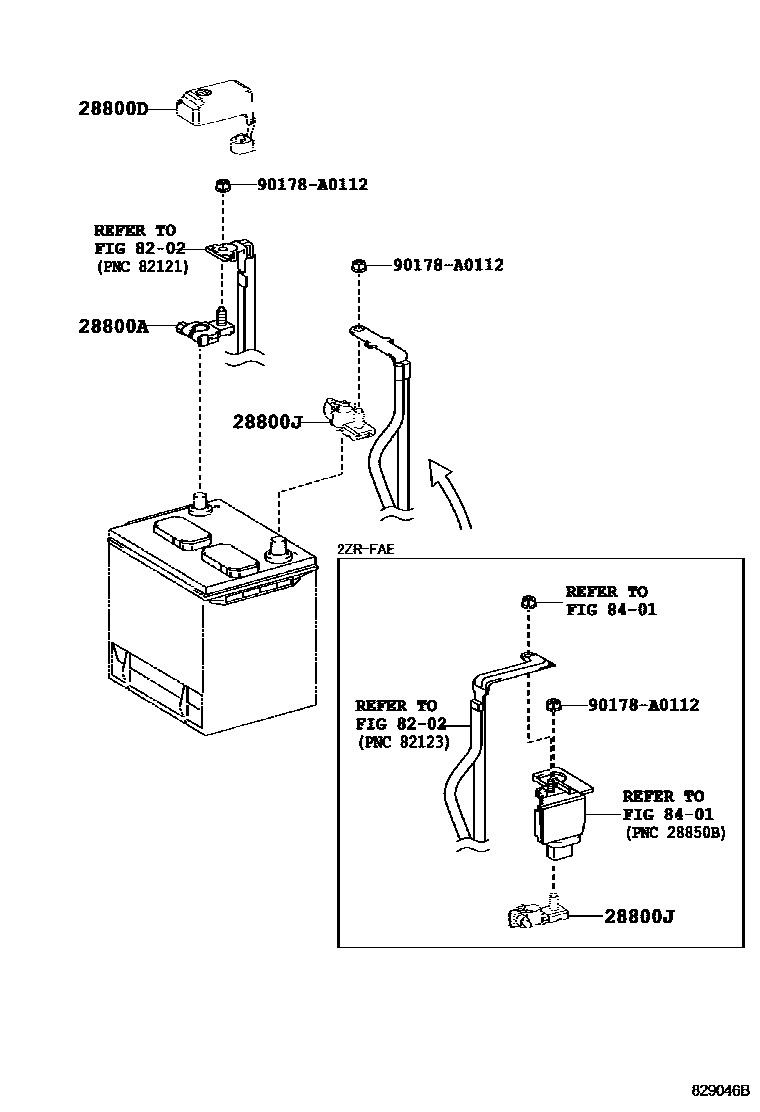

Parts diagram

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i201308-201608

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-06040i201608

main82821-12490i201308-201401

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i201308-201608

main90982-06070i201308-201608

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90178A0112

main90178-A0112

6 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota COROLLA

This section contains 6 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota COROLLA. Key components include: TERMINAL, BATTERY POSITIVE, COVER, CONNECTOR(FOR BATTERY TERMINAL), TERMINAL, BATTERY NEGATIVE, WIRING & CLAMP, SWITCH & RELAY & COMPUTER.
