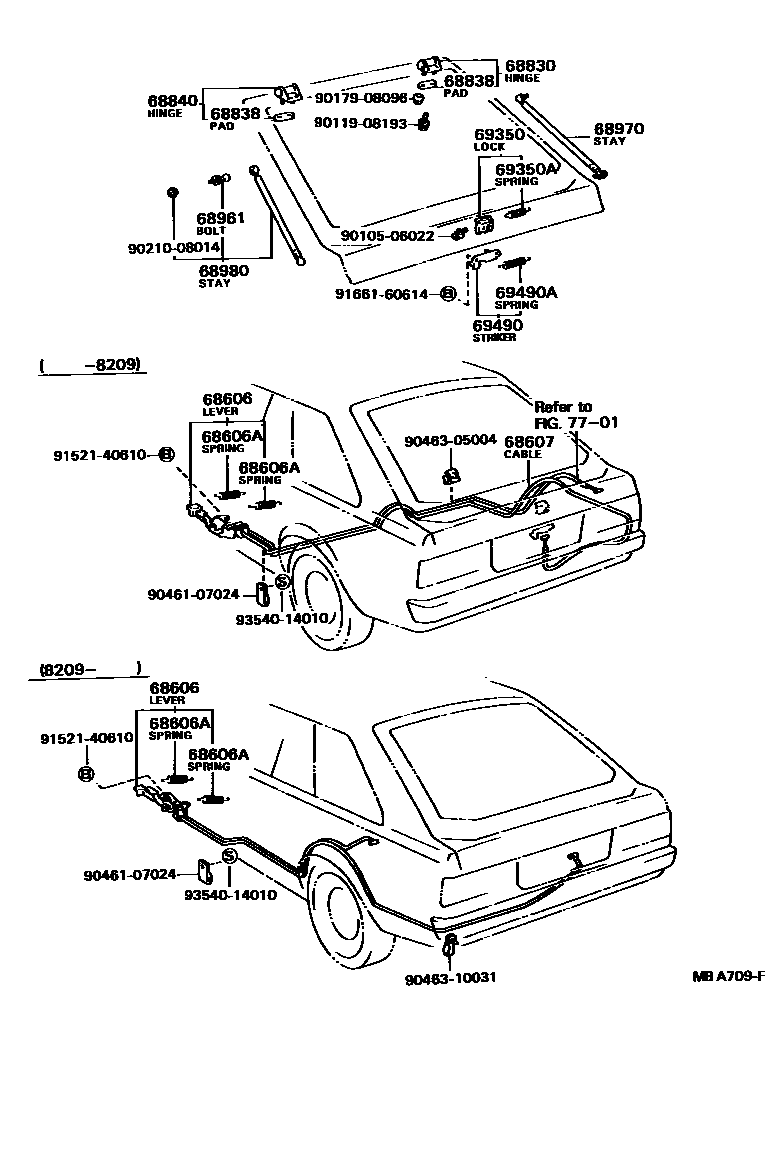

Toyota COROLLA — BACK DOOR LOCK & HANDLE
68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN
68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
68830HINGE ASSY, BACK DOOR, RH
68838PAD, BACK DOOR HINGE, NO.1
68840HINGE ASSY, BACK DOOR, LH
68961BOLT, BACK DOOR STAY
68970STAY ASSY, BACK DOOR, RH
W/RR WIPER
KAYABA
KAYABA,W/RR WIPER
TOKIKO
TOKIKO,W/RR WIPER
KAYABA,W/RR WIPER
TOKIKO,W/RR WIPER
68980STAY ASSY, BACK DOOR
W/RR WIPER
KAYABA
KAYABA,W/RR WIPER
TOKIKO
TOKIKO,W/RR WIPER
KAYABA,W/RR WIPER
TOKIKO,W/RR WIPER
69350LOCK ASSY, BACK DOOR
69350ASPRING(FOR BACK DOOR LOCK)
69490STRIKER ASSY, BACK DOOR LOCK
69490ASPRING(FOR BACK DOOR LOCK STRIKER)
7701FUEL TANK & TUBE
9010506022
main90105-06022
9011908193
main90119-08193
9017908096
main90179-08096
9021008014
main90210-08014
9046107024
main90461-07024
9046305004
main90463-05004
9046310031
main90463-10031
9152140610
main91521-40610
9166160614
main91661-60614
9354014010
main93540-14010
24 parts on this diagram · 2 diagrams in section
BACK DOOR LOCK & HANDLE for Toyota COROLLA
This section contains 32 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota COROLLA. Key components include: STOPPER, BACK DOOR, NO.1, LEVER SUB-ASSY, BACK DOOR LOCK OPEN, SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER), CABLE SUB-ASSY, BACK DOOR LOCK CONTROL, HINGE ASSY, BACK DOOR, RH.
