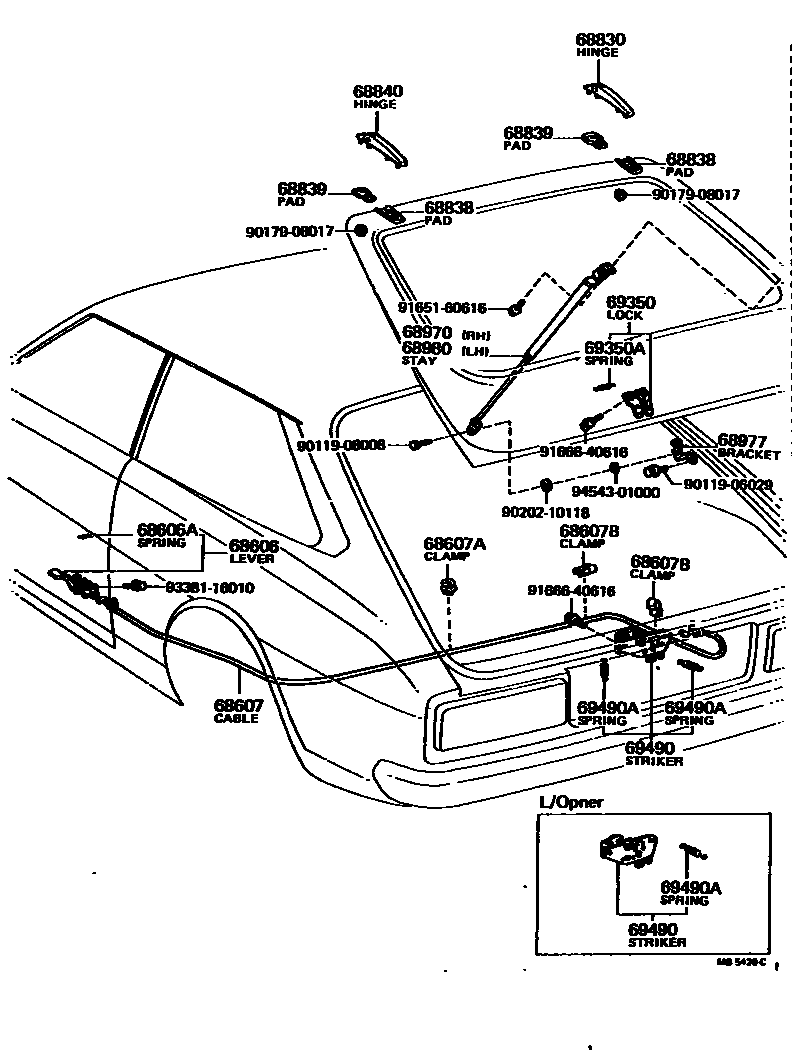

Toyota COROLLA — BACK DOOR LOCK & HANDLE
68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN
68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
68607BCLAMP, NO.2(FOR BACK DOOR LOCK CONTROL CABLE)
68830HINGE ASSY, BACK DOOR, RH
68838PAD, BACK DOOR HINGE, NO.1
68839PAD, BACK DOOR HINGE, NO.2
FOR RH.
FOR LH.
68840HINGE ASSY, BACK DOOR, LH
W/RR.WINDOW WIPER
68970STAY ASSY, BACK DOOR, RH
68977BRACKET, BACK DOOR STAY
68980STAY ASSY, BACK DOOR
69350LOCK ASSY, BACK DOOR
L/REAR ROOM LAMP
W/REAR ROOM LAMP
69350ASPRING(FOR BACK DOOR LOCK)
69490STRIKER ASSY, BACK DOOR LOCK
69490ASPRING(FOR BACK DOOR LOCK STRIKER)
WD=0.7,COMPRESSION
W/OPENER WD=0.8,TENSION
9011906029
main90119-06029
9011908008
main90119-08008
9017908017
main90179-08017
9020210118
main90202-10118
9165160616
main91651-60616
9166640616
main91666-40616
9338116010
main93381-16010
9454301000
main94543-01000
24 parts on this diagram · 2 diagrams in section
BACK DOOR LOCK & HANDLE for Toyota COROLLA
This section contains 44 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota COROLLA. Key components include: STOPPER, BACK DOOR, NO.1, STOPPER, BACK DOOR, NO.2, SPACER, BACK DOOR SIDE STOPPER, UPPER, LEVER SUB-ASSY, BACK DOOR LOCK OPEN, SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER).
