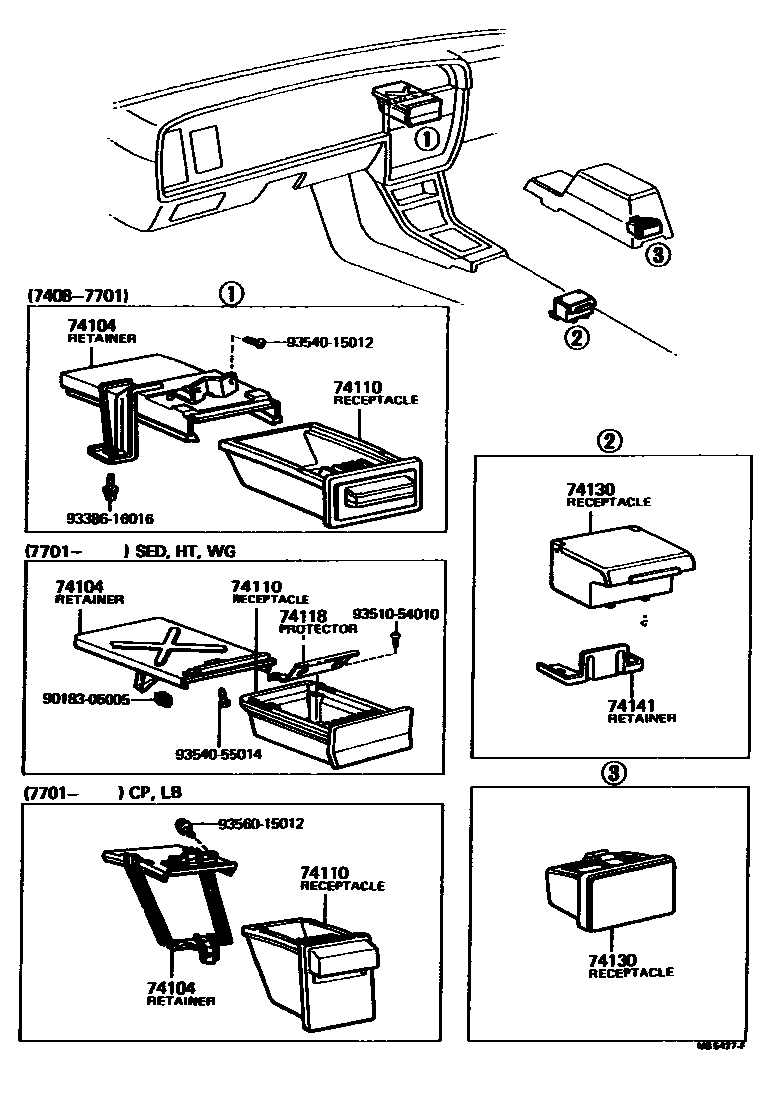

Toyota COROLLA — ASH RECEPTACLE
74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
ASCO
KOJIMA PRESS
74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH
ASCO,SILVER
KOJIMA PRESS,SILVER
ASCO,BLACK
KOJIMA PRESS,BLACK
74118PROTECTOR, FRONT ASH RECEPTACLE
74130RECEPTACLE ASSY, REAR ASH
BLACK,BLACK
BLUE,BLUE
BEIGE,BEIGE
BLACK,BLACK
BLUE,BLUE
BEIGE,BEIGE
FOR FULL CONSOLE,BLACK,BLACK
BLUE,BLUE
BEIGE,BEIGE
FOR FULL CONSOLE,BROWN,BROWN
74141RETAINER, REAR ASH RECEPTACLE, INNER
9018305005
main90183-05005
9338616016
main93386-16016
9351054010
main93510-54010
9354015012
main93540-15012
9354055014
main93540-55014
9356015012
main93560-15012
11 parts on this diagram · 1 diagram in section
ASH RECEPTACLE for Toyota COROLLA
This section contains 11 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota COROLLA. Key components include: RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1, RECEPTACLE ASSY, INSTRUMENT PANEL ASH, PROTECTOR, FRONT ASH RECEPTACLE, RECEPTACLE ASSY, REAR ASH, RETAINER, REAR ASH RECEPTACLE, INNER.
