Toyota COROLLA — ANTENNA

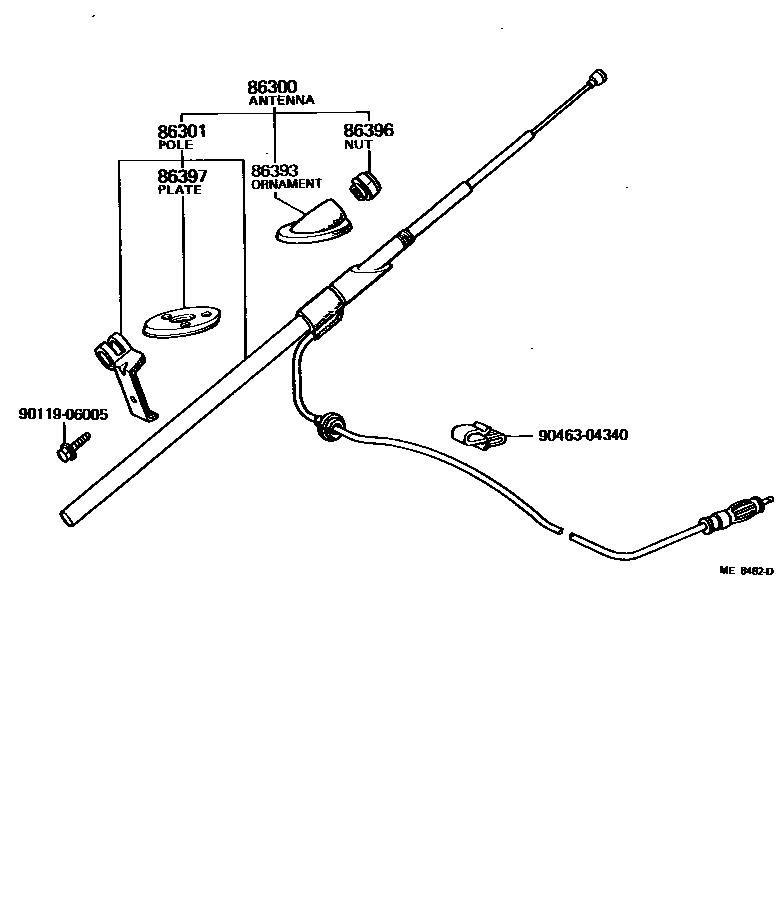

Parts diagram

86300ANTENNA ASSY, W/HOLDER

main86300-12180i197908-198108

main86300-12181i198108-198111

main86300-12182i198111-198202

main86300-12183i198202-198307

main86300-12190i197908-198108

main86300-12191i198108-198202

main86300-12193i198202-198307

86301POLE SUB-ASSY, ANTENNA

main86301-12180i197908-198111

main86301-12181i198111-198202

main86301-12182i198202-198307

main86301-12190i197908-198108

main86301-12191i198108-198202

main86301-12193i198202-198307

86393ORNAMENT, ANTENNA

main86392-12010i197908-198108

main86392-12011i198108-198307

main86392-12020i197908-198108

main86392-12021i198108-198307

86396NUT, ANTENNA

main86396-12010i198108-198307

main90179-12026i198108-198307

main90179-14001i197908-198108

main90179-14002i197908-198108

86397PLATE, ANTENNA EARTH

main86397-12010i198111-198307

main86397-12020i198202-198307

9011906005

main90119-06005

9046304340

main90463-04340

7 parts on this diagram · 1 diagram in section

ANTENNA for Toyota COROLLA

This section contains 7 genuine Toyota parts for the ANTENNA system of the Toyota COROLLA. Key components include: ANTENNA ASSY, W/HOLDER, POLE SUB-ASSY, ANTENNA, ORNAMENT, ANTENNA, NUT, ANTENNA, PLATE, ANTENNA EARTH.
