Toyota COROLLA — ANTENNA

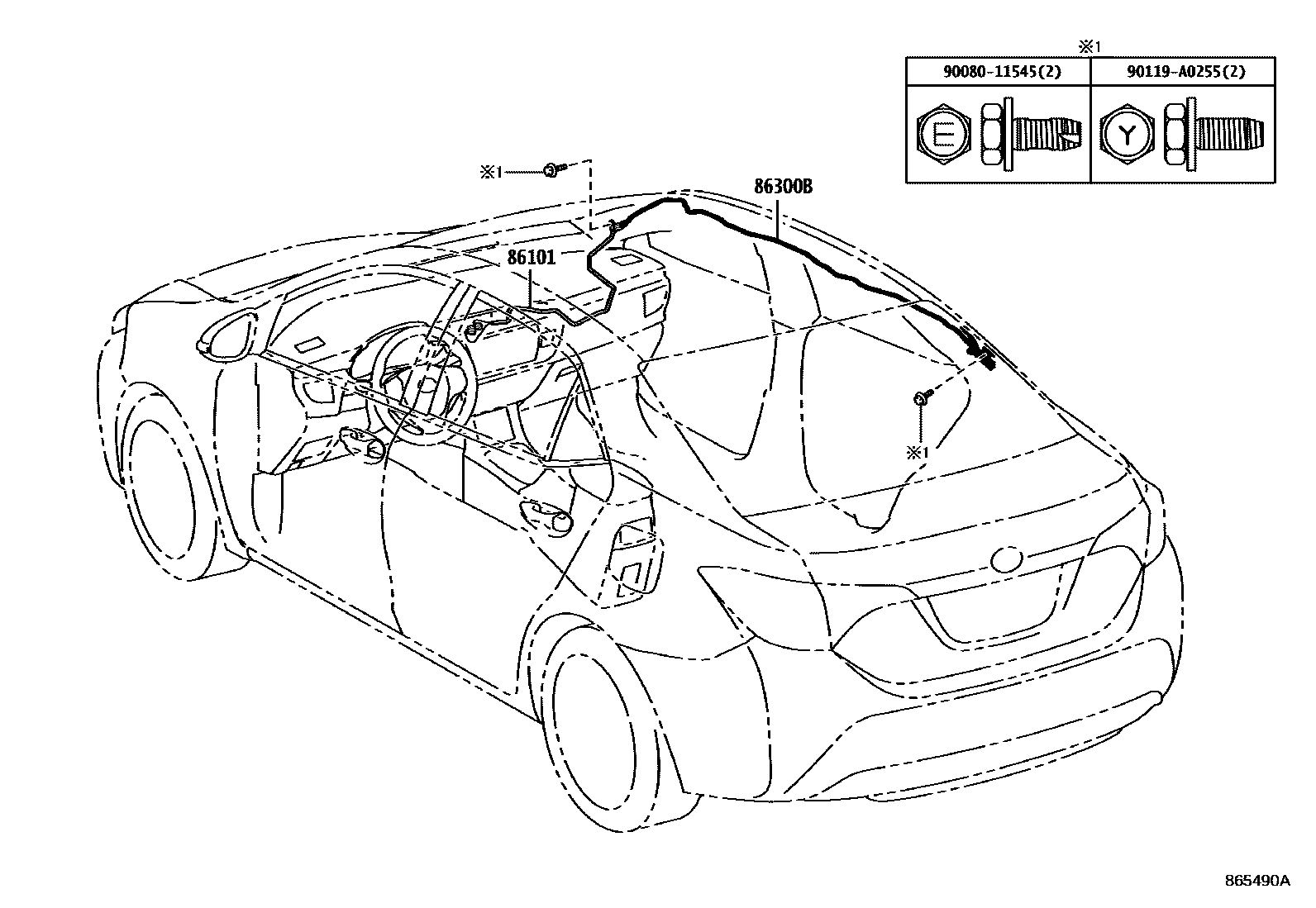

Parts diagram

86101CORD SUB-ASSY, ANTENNA

main86101-02540i201308-201608

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-02360i201308-201608

main86300-02530i201608

9008011545

main90080-11545

90119A0255

main90119-A0255

4 parts on this diagram · 1 diagram in section
