Toyota COROLLA — ANTENNA

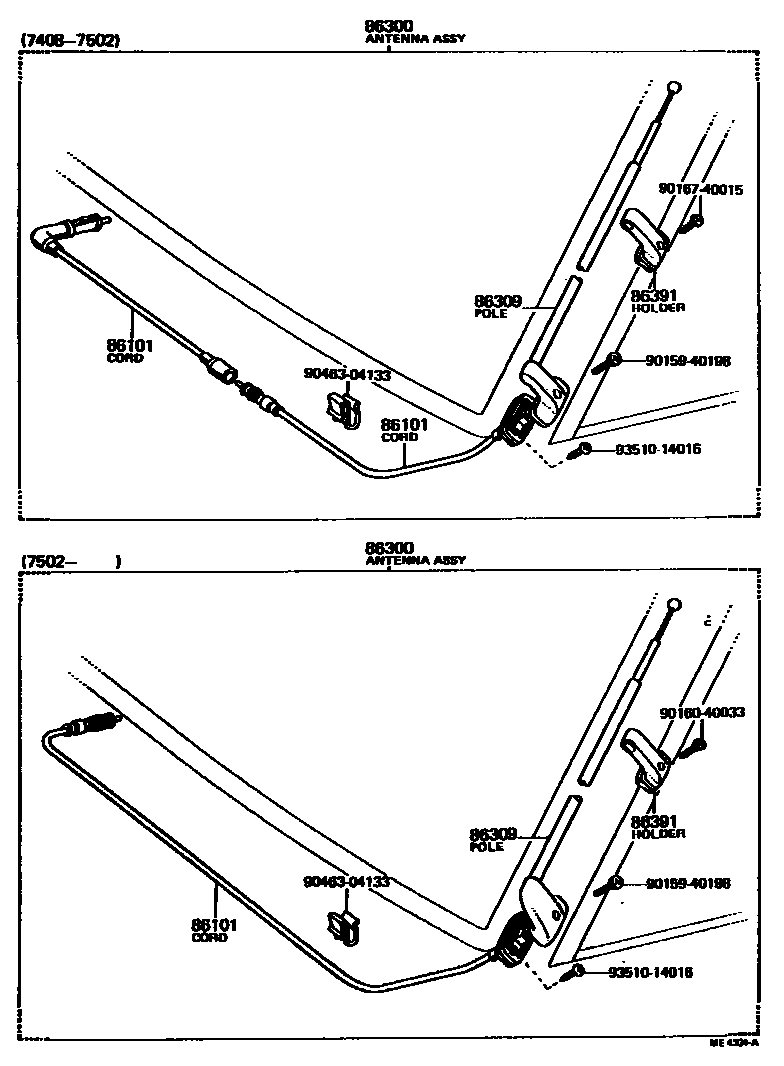

Parts diagram

86101CORD SUB-ASSY, ANTENNA

main86101-12030i197408-197502

ANTENNA SIDE

main86101-12031i197502-197805

main86101-12032i197805-197908

main86101-12040i197408-197502

ANTENNA SIDE

main86101-12041i197502-197805

main86101-12042i197805-197908

main86101-12060i197408-197502

TUNER SIDE

main86101-12071i197603-197701

main86101-12080i197408-197502

TUNER SIDE

86300ANTENNA ASSY, W/HOLDER

main86300-12101i197408-197908

main86300-12111i197408-197908

main86300-12121i197603-197701

86309POLE SUB-ASSY, PILLAR ANTENNA

main86309-10020i197805-197807

main86309-12041i197408-197502

main86309-12042i197502-197711

main86309-12043i197711-197805

main86309-12044i197807-197908

main86309-12051i197408-197502

main86309-12052i197502-197711

main86309-12053i197711-197805

main86309-12054i197805-197908

86391HOLDER, ANTENNA

main86391-12040i197408-197502

main86391-12041i197502-197711

main86391-12042i197711-197805

main86391-12043i197805-197908

main86391-12050i197408-197502

main86391-12051i197502-197711

main86391-12052i197711-197805

main86391-12053i197805-197908

9015940198

main90159-40198

9016040033

main90160-40033

9016740015

main90167-40015

9046304133

main90463-04133

9351014016

main93510-14016

9 parts on this diagram · 1 diagram in section

ANTENNA for Toyota COROLLA

This section contains 9 genuine Toyota parts for the ANTENNA system of the Toyota COROLLA. Key components include: CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, POLE SUB-ASSY, PILLAR ANTENNA, HOLDER, ANTENNA.
