Toyota COROLLA — ALTERNATOR
27020ALTERNATOR ASSY
12V 50A
12V 50A
12V 50A
12V 50A
12V 55A
12V 55A
12V 40A
12V 40A
12V 50A
12V 50A
12V 40A
12V 40A
12V 50A
main27020-26101i2TC..TE31..MTM;2TC..TE37,38,51;2TC..TE31..A40..SPL..CND;2TC..TE31..A40..(DLX,STD)197708-197808
12V 50A
12V 55A
12V 55A
12V 55A
12V 40A,12V 40A
27039COVER, ALTERNATOR REAR END
12V 55A
12V 50A
12V 40A
12V 40A
27113PLATE, BEARING RETAINER, ALTERNATOR
27212RING, SPACE(FOR ALTERNATOR ROTOR)
12V 55A
12V 40A
main27412-45070i2TC..TE31..MTM;2TC..TE31..A40..SPL..CND;2TC..TE31..A40..(DLX,STD);3KC,2TC..KE30,50,TE37,38,51197708-197808
12V 50A
12V 55A
27310FRAME ASSY, DRIVE END, ALTERNATOR
12V 55A
12V 55A
27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
6203Z
6203ZZ
6203ZZ
27310CFELT(FOR ALTERNATOR DRIVE END FRAME)
27315COVER, ALTERNATOR FELT, INNER NO.1
27330ROTOR ASSY, ALTERNATOR
12V 40A
12V 50A
main27330-45070i2TC..TE31..MTM;2TC..TE37,38,51;2TC..TE31..A40..SPL..CND;2TC..TE31..A40..(DLX,STD)197708-197908
12V 50A
12V 55A
27330ABEARING(FOR ALTERNATOR ROTOR)
6201ZZ
620/VV
6201Z
27330BRING, SNAP(FOR ALTERNATOR ROTOR)
27350FRAME ASSY, RECTIFIER END
12V 40A
12V 40A
12V 50A
12V 50A
12V 40A
12V 50A
main27350-26101i2TC..TE31..T50..SPL;2TC..TE31..SPL..CND;2TC..TE31..A40..4D..SPL;2TC..TE3#,51..DLX,SR5,STD;2TC..TE31..T40..2D..SPL..USA197708-197908
12V 50A
12V 40A
12V 40A
27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
12V 50A
12V 50A
main27353-26101i2TC..TE31..T50..SPL;2TC..TE31..SPL..CND;2TC..TE31..A40..4D..SPL;2TC..TE3#,51..DLX,SR5,STD;2TC..TE31..T40..2D..SPL..USA197708-197908
12V 50A
12V 40A
12V 40A
12V 40A
12V 50A
12V 40A
27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
12V 50A
12V 40A
12V 50A
main27356-26101i2TC..TE31..T50..SPL;2TC..TE31..SPL..CND;2TC..TE31..A40..4D..SPL;2TC..TE3#,51..DLX,SR5,STD;2TC..TE31..T40..2D..SPL..USA197708-197908
12V 50A
12V 40A
12V 40A
12V 50A
12V 40A
27357HOLDER, ALTERNATOR, W/RECTIFIER
12V 50A
12V 40A
12V 40A
12V 40A
12V 50A
12V 40A
27359FRAME, ALTERNATOR RECTIFIER END
12V 55A
12V 55A
12V 55A
12V 40A
12V 55A
12V 55A
27370HOLDER ASSY, ALTERNATOR BRUSH
27371BRUSH, ALTERNATOR
12V 55A
27372SPRING, ALTERNATOR BRUSH
12V 55A
27410STATOR ASSY, ALTERNATOR
12V 40A
12V 50A
main27410-34050i2TC..TE31..MTM;2TC..TE37,38,51;2TC..TE31..A40..SPL..CND;2TC..TE31..A40..(DLX,STD)197708-197908
12V 50A
12V 55A
12V 50A
27411PULLEY, ALTERNATOR
FOR COOLER
27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27441FAN, ALTERNATOR
W/HEAVY DUTY REAR DEFOGGER
2737826020INSULATOR, ALTERNATOR, NO.1
main27378-26020
2737838040INSULATOR, ALTERNATOR, NO.1
main27378-38040
2738731011INSULATOR, TERMINAL
main27387-31011
2738745021INSULATOR, TERMINAL
main27387-45021
2744724061CLIP, ALTERNATOR CORD
main27447-24061
9009900862
main90099-00862
9009902310
main90099-02310
9009904259
main90099-04259
9009904300
main90099-04300
9009905060
main90099-05060
9009905118
main90099-05118
9009905119
main90099-05119
9009934006
main90099-34006
9010110049
main90101-10049
9011908023
main90119-08023
9017906158
main90179-06158
9411041000
main94110-41000
9451101000
main94511-01000
9451101400
main94511-01400
9461211001
main94612-11001

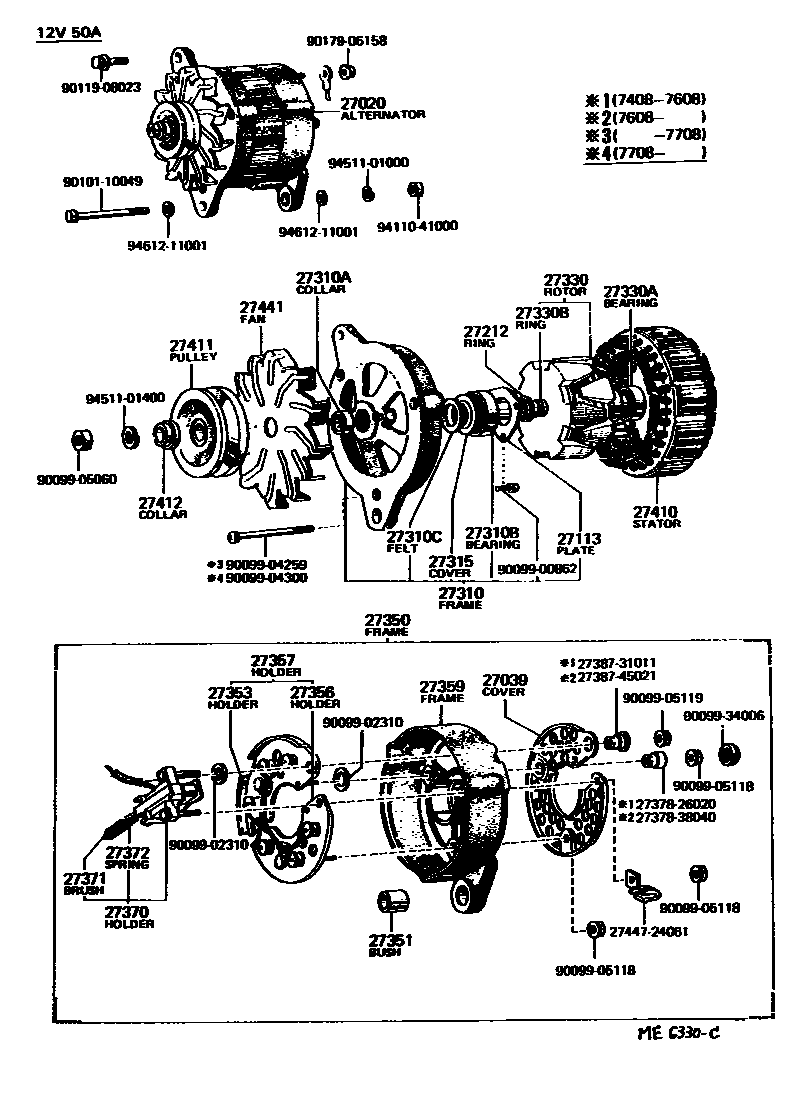

45 parts on this diagram · 3 diagrams in section
ALTERNATOR for Toyota COROLLA
This section contains 65 genuine Toyota parts for the ALTERNATOR system of the Toyota COROLLA. Key components include: ALTERNATOR ASSY, COVER, ALTERNATOR REAR END, PLATE, REGULATOR COVER, PLATE, BEARING RETAINER, ALTERNATOR, RING, SPACE(FOR ALTERNATOR ROTOR).
