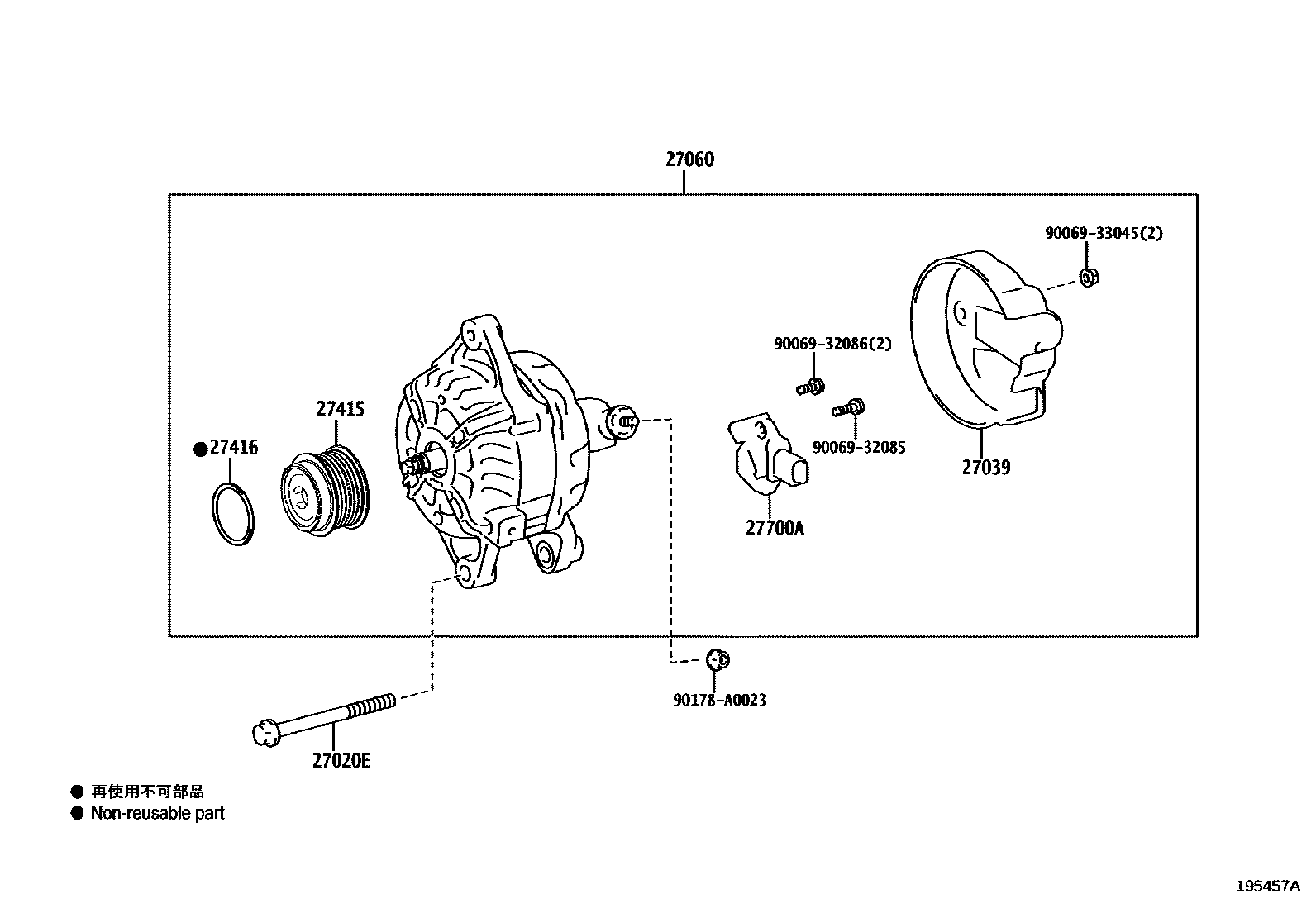

Toyota COROLLA — ALTERNATOR

0001 112V 100A VALEO 0002 112V 100A DENSO

27020EBOLT(FOR ALTERNATOR)

main90105-10307i2ZRFE..ZRE172..4FC201308-201608

(J)

main90105-A0267i2ZRFE..ZRE172..4FC201308-201608

(L)

27039COVER, ALTERNATOR REAR END

main27039-0C170i2ZRFAE..ZRE172201801

main27039-0T210i2ZRFE..ZRE172..MXC;2ZRFE..ZRE172..S..GEN;2ZRFE..ZRE172..6F..(LE,STD)..GEN201308-201608

main27039-37220i2ZRFE..ZRE172..CVT..(LE,STD)..GEN201602-201801

main27039-47330i2ZRFE..ZRE172..CVT..(LE,STD)..GEN201404-201602

27060ALTERNATOR ASSY, W/REGULATOR

main27060-0T230i2ZRFE..ZRE172..MXC;2ZRFE..ZRE172..S..GEN;2ZRFE..ZRE172..6F..(LE,STD)..GEN201308-201608

main27060-0T240i2ZRFE..ZRE172..CVT..(LE,STD)..GEN201404-201608

main27060-0T260i2ZRFAE..ZRE172201608

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0T031i2ZRFE..ZRE172..MXC;2ZRFE..ZRE172..S..GEN;2ZRFE..ZRE172..6F..(LE,STD)..GEN201308-201608

main27415-0T060i2ZRFE..ZRE172..CVT..(LE,STD)..GEN201404-201608

27416CAP, ALTERNATOR PULLEY

main27416-0W050i2ZR#..ZRE172201308-201608

27700AREGULATOR ASSY, GENERATOR

main27700-0T060i2ZRFE..ZRE172..MXC;2ZRFE..ZRE172..S..GEN;2ZRFE..ZRE172..6F..(LE,STD)..GEN201308-201608

9006932085

main90069-32085

9006932086

main90069-32086

9006933045

main90069-33045

90178A0023

main90178-A0023

10 parts on this diagram · 2 diagrams in section
