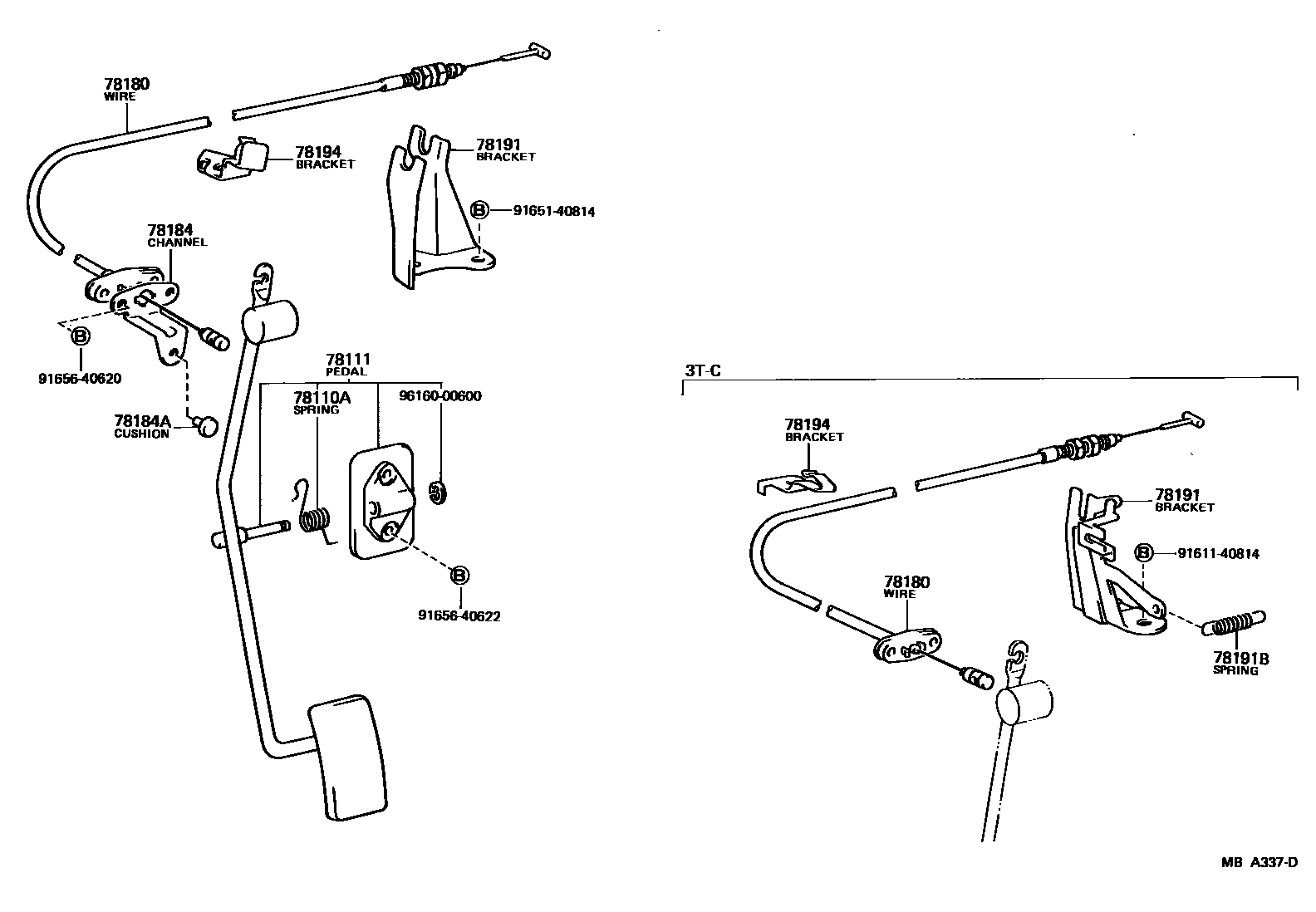

Toyota COROLLA — ACCELERATOR LINK

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18398iAE71,TE72197908-198307

78111PEDAL, ACCELERATOR

main78010-12070iAE71,TE72197908-198307

78180WIRE ASSY, ACCELERATOR

main78180-12340iTE72197908-198208

main78180-12400iAE71198208-198307

78184CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER

main78181-12051iAE71,TE72197908-198304

main78181-12080iAE71198304-198307

78184ACUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)

main90541-06008iAE71,TE72197908-198307

78191BRACKET, ACCELERATOR WIRE SUPPORT

main78024-12010iTE72197908-198208

main78184-12140iAE71198208-198307

78191BSPRING, TENSION (FOR ACCELERATOR WIRE SUPPORT BRACKET)

main90507-08002×2iTE72197908-198208

78194BRACKET, ACCELERATOR WIRE SUPPORT, NO.2

main78186-12120iTE72197908-198208

main78186-12140iAE71198208-198307

9161140814

main91611-40814

9165140814

main91651-40814

9165640620

main91656-40620

9165640622

main91656-40622

9616000600

main96160-00600

13 parts on this diagram · 1 diagram in section
