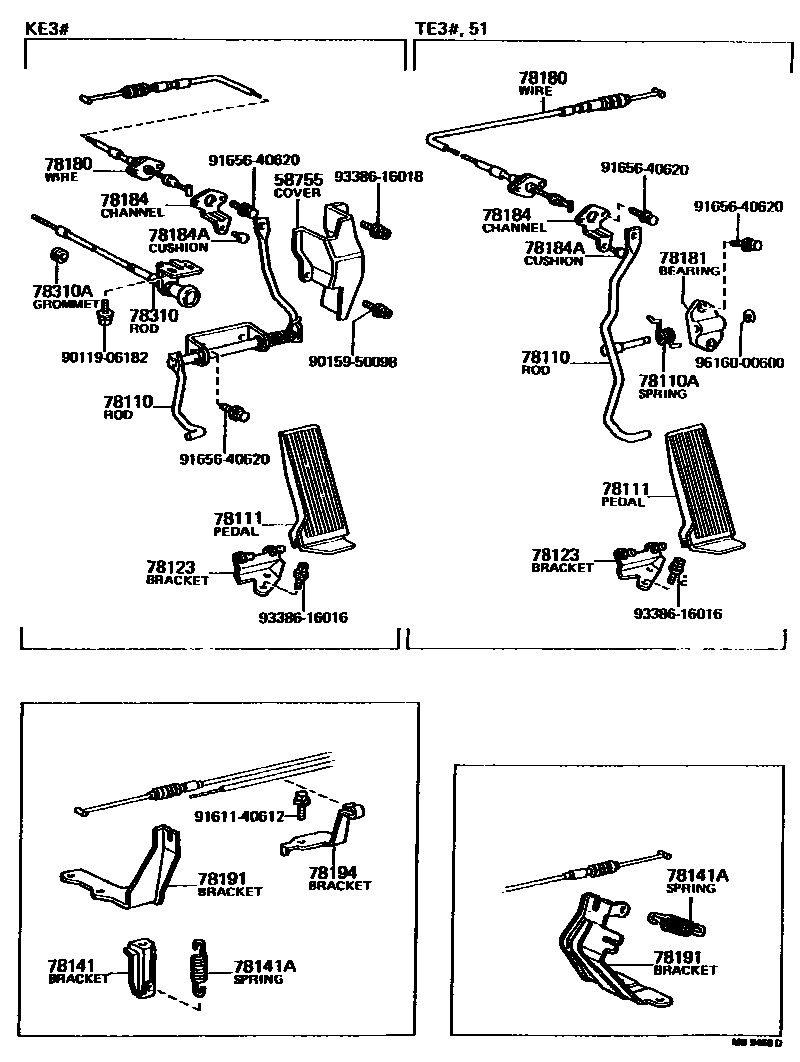

Toyota COROLLA — ACCELERATOR LINK

0001 1 0002 1

58755COVER, ACCELERATOR PEDAL SHAFT

main78109-12020iKE3#,50197408-197908

78110ROD ASSY, ACCELERATOR PEDAL

main78102-12080iTE3#,51197408-197608

main78102-12081iTE3#,51197608-197908

main78102-12090iKE3#197408-197608

main78102-12091iKE3#,50197608-197908

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-20402iTE3#,51197408-197908

78111PEDAL, ACCELERATOR

main78111-12080iKE3#,TE3#,51197408-197608

main78111-12100iKE3#,50,TE3#,51197608-197908

78123BRACKET, ACCELERATOR PEDAL SUPPORT

main78114-12080iKE3#,TE3#,51197408-197608

78141BRACKET, ACCELERATOR WIRE RETURN SPRING

main78141-12011iKE30,50197708-197908

78141ASPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)

main90507-08002×2iTE3#,51197803-197908

main90507-10001iTE3#,51197506-197608

main90507-10002iTE3#,51197608-197803

main90507-12021iKE3#197408-197708

main90507-12025iTE3#197408-197506

78180WIRE ASSY, ACCELERATOR

main78180-12210iTE3#197408-197510

main78180-12211iTE3#,51197510-197701

main78180-12212iTE3#,51197701-197803

main78180-12213iTE3#,51197803-197908

main78180-12220iKE3#197408-197510

main78180-12221iKE3#197510-197701

main78180-12222iKE3#,50197701-197805

main78180-12223iKE30,50197805-197908

78181BEARING, ACCELERATOR PEDAL ROD SUPPORT

main78124-12050iTE3#,51197408-197908

78184CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER

main78181-12050iTE3#197408-197510

main78181-12051iTE3#,51197510-197908

main78181-12070iKE3#197408-197510

main78181-12071iKE3#,50197510-197908

78184ACUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)

main90541-06008iKE3#,50,TE3#,51197408-197908

78191BRACKET, ACCELERATOR WIRE SUPPORT

main78024-12010iTE3#,51197803-197908

main78184-12040iKE3#,50197408-197908

main78184-12090iTE3#,51197408-197608

main78184-12091iTE3#,51197608-197803

78194BRACKET, ACCELERATOR WIRE SUPPORT, NO.2

main78186-10010iKE3#197601-197605

main78186-12020iKE3#197408-197601

main78186-12040iKE3#197605-197701

main78186-12041iKE3#,50197701-197908

78310CABLE ASSY, CHOKE

main78310-12220iKE3#..DLX,STD;KE30..K40..2D..USA197408-197701

CANADA SPEC.

main78310-12260iKE30..CND197708-197908

main78310-12310iKE50197701-197908

78310AGROMMET, CHOKE CABLE

main90480-13055iKE3#,50..DLX,STD;KE30..K40..2D..USA197408-197708

CANADA SPEC.

9011906182

main90119-06182

9015950098

main90159-50098

9161140612

main91611-40612

9165640620

main91656-40620

9338616016

main93386-16016

9338616018

main93386-16018

9616000600

main96160-00600

22 parts on this diagram · 2 diagrams in section
