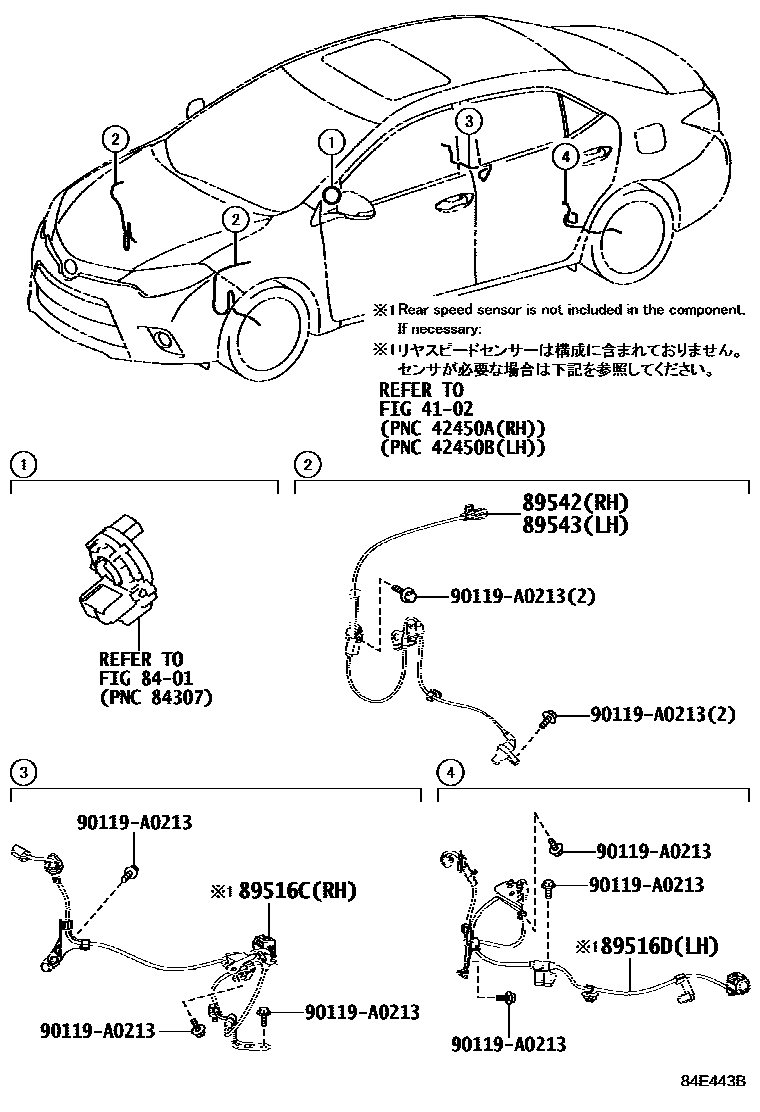

Toyota COROLLA — ABS & VSC

4102

8401

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-02130iZRE172201308-201407

sub89516-02131

main89516-02131iZRE172201408-201608

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-02140iZRE172201308-201407

sub89516-02141

main89516-02141iZRE172201408-201608

89542SENSOR, SPEED, FRONT RH

main89542-02090iZRE172..4FC201308-201507

sub89542-02150

main89542-02150iZRE172201508-201608

89543SENSOR, SPEED, FRONT LH

main89543-02090iZRE172..4FC201308-201507

sub89543-02150

main89543-02150iZRE172201508-201608

90119A0213

main90119-A0213

7 parts on this diagram · 1 diagram in section
