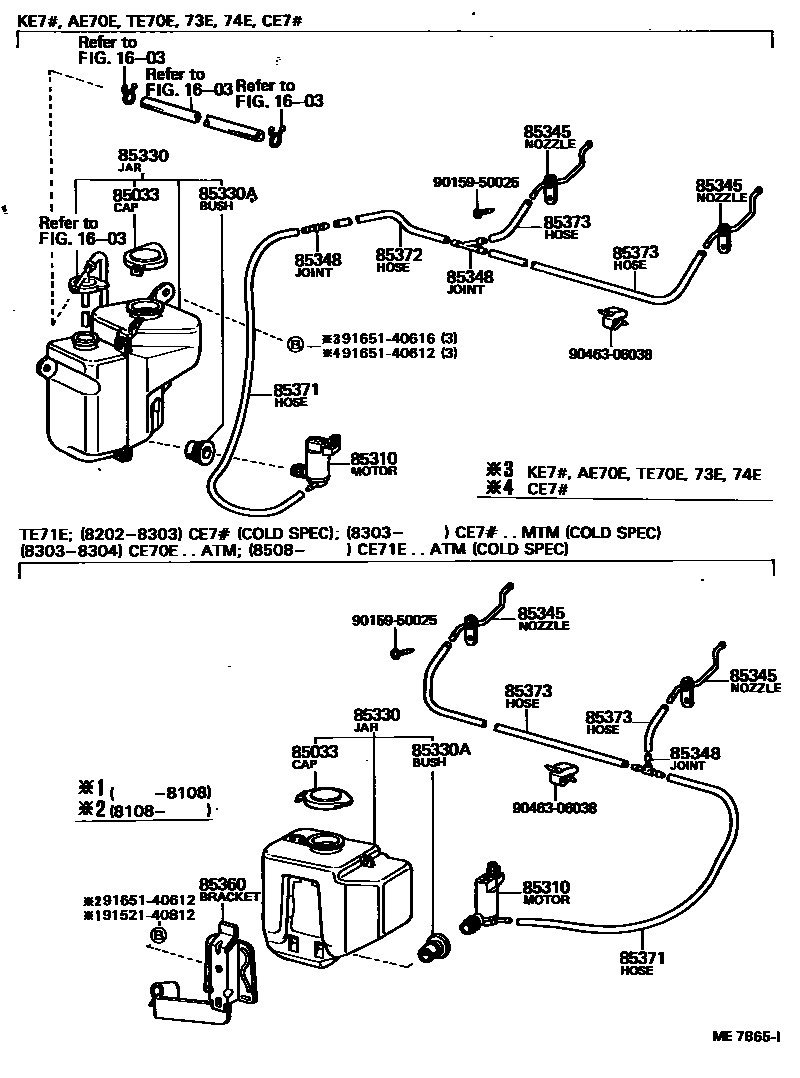

Toyota COROLLA — WINDSHIELD WASHER

1603

85033CAP ASSY, WINDSHIELD WASHER

main85332-16010iAE70,CE7#,KE7#,TE7#197903-198707

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-10130iCE7#198202-198209

COLD SPEC

main85310-20100iAE70,KE7#,TE7#197903-198108

main85310-22080iAE70,CE7#,KE7#,TE7#198209-198707

85330JAR ASSY, WINDSHIELD WASHER

main85330-12090iAE70,KE7#,TE70,73197903-198002

main85330-12091iCE71..4FC198508-198707

main85330-12100iTE71197903-198304

main85330-12160iKE70198002-198008

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAE70,CE7#,KE7#,TE7#197903-198707

85345NOZZLE, WINDSHIELD WASHER

main85341-12110iAE70,CE7#,KE7#,TE7#197903-198707

RH

main85341-12150iAE70,CE7#,KE7#,TE7#197903-198707

LH

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12011iCE71..4FC198508-198707

COLD SPEC

sub85375-89141

main85355-14010iAE70,CE7#,KE7#,TE70,73,74197903-198707

3 WAY TYPE

sub85348-12250

main85355-87201iAE70,CE7#,KE7#,TE70,73,74197903-198707

2 WAY TYPE

sub85349-89122

85360BRACKET ASSY, WINDSHIELD WASHER

main85360-12020iTE71197903-198108

main85361-12120iCE70..4FC198303-198304

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013iAE70,CE7#,KE7#,TE70,73,74197912-198707

main90446-06183iTE71197903-197912

main90446-06341iAE70,KE7#,TE70,73197903-197912

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06006iAE70,CE7#,KE7#,TE70,73,74197903-198707

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAE70,CE7#,KE7#,TE70,73,74197903-198707

main90446-06013iTE71197903-198304

9015950025

main90159-50025

9046306038

main90463-06038

9152140812

main91521-40812

9165140612

main91651-40612

9165140616

main91651-40616

16 parts on this diagram · 1 diagram in section
