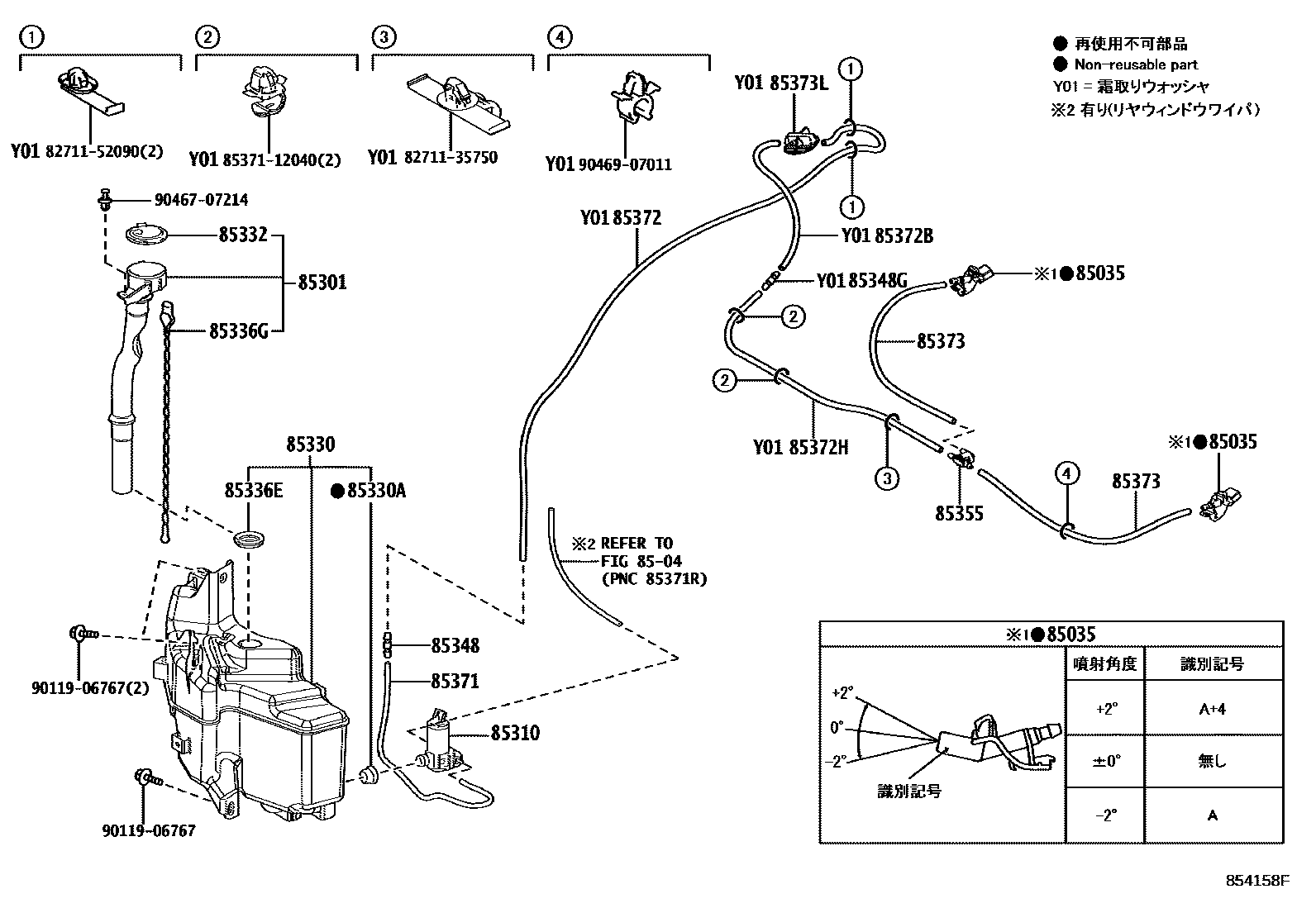

Toyota COROLLA — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12360×2iMZEA12,NRE210,ZRE212,ZWE211,214201908

main85381-12440×2iZWE215,219202210

main85381-33080×2iMZEA12,NRE210,ZRE212,ZWE211,214201908

8504

85301INLET SUB-ASSY, WASHER

main85301-12050supersedes 85301-12040iZWE215,219202210-202505

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-33070iNRE210,ZRE212,ZWE211,214..SED201908

main85330-47100supersedes 85330-33070iMZEA17..WG202210-202504

85330JAR ASSY, WINDSHIELD WASHER

main85315-12730iMZEA12,NRE210,ZRE212,ZWE211,214201908

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iMZEA12,NRE210,ZRE212,ZWE211,214201908

85332CAP, WINDSHIELD WASHER JAR

main85386-60050iMZEA12,NRE210,ZRE212,ZWE211,214201908

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160iMZEA12,NRE210,ZRE212,ZWE211,214201908

85336GGAGE, WATER LEVEL

main85312-47020iMZEA12,NRE210,ZRE212,ZWE211,214201908

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iMZEA12,NRE210,ZRE212,ZWE211,214201908

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iMZEA12,NRE210,ZRE212,ZWE211,214201908

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iMZEA12,NRE210,ZRE212,ZWE211,214201908

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33085

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-62176iMZEA12,NRE210,ZRE212,ZWE211,214201908

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iMZEA12,NRE210,ZRE212,ZWE211,214201908

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iMZEA12,NRE210,ZRE212,ZWE211,214201908

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iMZEA12,NRE210,ZRE212,ZWE211,214201908

85373LGROMMET, WASHER

main85373-12050iMZEA12,NRE210,ZRE212,ZWE211,214201908

8271135750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35750

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

9011906767

main90119-06767

9046707214

main90467-07214

9046907011

main90469-07011

24 parts on this diagram · 1 diagram in section
