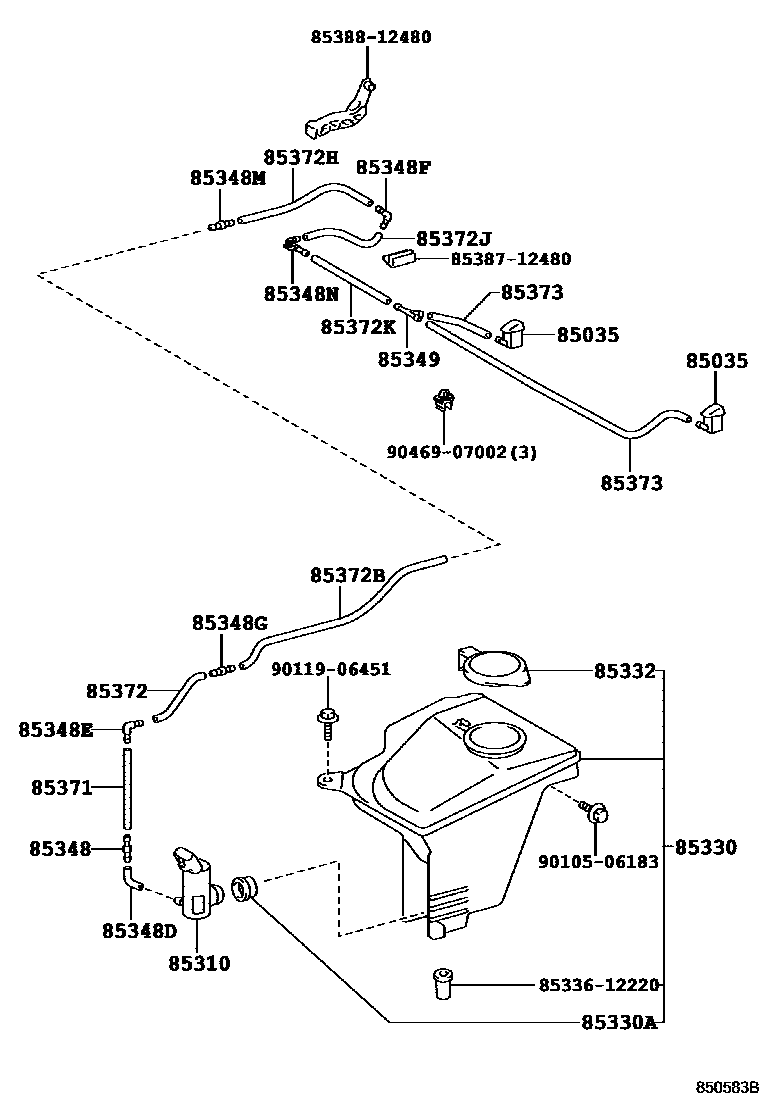

Toyota COROLLA — WINDSHIELD WASHER

0001 1 0004 1��(����)

85035NOZZLE SUB-ASSY, WASHER

main85381-12050×2iAE10#,CE10#,EE10#199106

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20170iAE100,CE106,109,EE107..G,GL,LT199109-199205

main85310-20210iAE10#,CE100,102,104,105,106,107,108,109,EE10#..(4DS,V,WG)..(CTD,DX,DXJ,GT,L,LX,SEG,SEL,XE)199106

sub85330-10280

main85330-12280iCE105,107..GL199804

85330JAR ASSY, WINDSHIELD WASHER

main85315-12220iAE10#,CE10#,EE101,102,103,104199106-199704

main85315-12221iAE109,CE106,108,109,EE10#199704-199705

main85315-12280iEE106,107,108199109-199705

main85315-12281iEE104..5F199705

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAE10#,CE10#,EE10#199106

85332CAP, WINDSHIELD WASHER JAR

main85316-12220iAE10#,CE10#,EE101199106-199205

main85316-12221iAE109,CE106,108,109,EE10#199704-199705

main85316-12280iEE106,107,108199109-199310

main85316-12290iEE106,107,108199310-199401

main85316-20300iAE100,101,104,CE100199704-199705

main85316-20340iAE10#,CE10#,EE101199205-199310

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260iAE10#,CE10#,EE101,102,103,104199106

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85336-12230iAE10#,CE10#,EE101,102,103,104199106

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85317-12230iAE10#,CE10#,EE10#199106

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85317-12230iAE10#,CE10#,EE10#199106

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85317-12220iAE10#,CE10#,EE101,102,103,104199106

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-10260iAE10#,CE10#,EE10#199106

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85378-12480iAE10#,CE10#,EE10#199106

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-14390iAE10#,CE10#,EE10#199106

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85319-12421iAE10#,CE10#,EE10#199704

main90446-07001iEE106,107,108199109-199401

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85319-12221iAE109,CE106,108,109,EE10#199704-199705

main90446-07001iAE10#,CE10#,EE101,102,103,104199106-199705

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iAE10#,CE10#,EE10#199705

main90099-33299iAE100,101,104,CE100199704-199705

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001iAE10#,CE10#,EE10#199106

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080iEE103..GL;EE102..4F..02S;AE10#,CE10#,EE101,104,106,107,108;EE102,103..(3FC,4F)..(DX,DXJ)..05S199106

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-33080iAE10#,CE10#,EE10#199106

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAE10#,CE10#,EE10#199106-199704

8533612220SWITCH ASSY, RESERVE TANK LEVEL WARNING

main85336-12220

8538712480CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-12480

8538812480CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85388-12480

9010506183

main90105-06183

9011906451

main90119-06451

9046907002

main90469-07002

26 parts on this diagram · 2 diagrams in section
