Toyota COROLLA — V-BELT

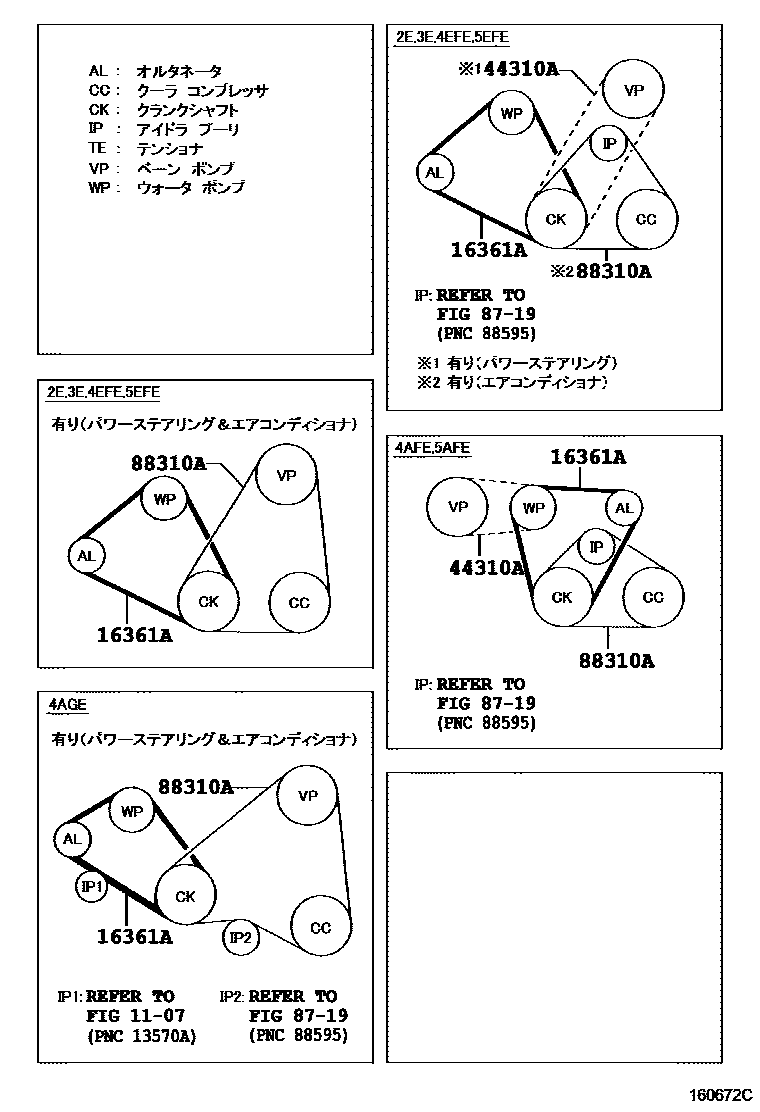

Parts diagram

1107MOUNTING

→ Go to FIG 11-07

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91055i199704-199705

main90916-02301i199106-199305

main90916-02332i199109-199207

main90916-02372i199305-199401

main99364-20820i199106-199207

main99364-30820i200105

main99365-20970i199704-199705

main99365-70840i199106-199307

main99365-80840i199307-200008

44310ABELT, V(FOR VANE PUMP)

main90080-91051i199705

main90916-02256i199205-199305

main99363-50630i199106-199305

main99363-80630i199305-199605

main99363-90630i199705

main99365-50890i199106-199305

main99365-71110i199305-199505

main99365-80890i199305-199605

main99365-80910i199401-199605

main99365-81110i199505-199605

main99365-90890i199605

main99365-90910i199605

main99365-91110i199605

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02362i199106-199305

main90916-02364i199106-199205

main99364-20850i199305-199405

main99364-80850i199405-199406

main99365-20880i199305

main99365-21050i199305

main99365-21060i199305-199401

main99365-21070i199401

main99365-21190i199106-199305

main99365-70870i199106-199305

DOP

main99365-80880i200008

main99365-81120i199804

main99365-81190i199205-199305

5 parts on this diagram · 2 diagrams in section

V-BELT for Toyota COROLLA

This section contains 6 genuine Toyota parts for the V-BELT system of the Toyota COROLLA. Key components include: MOUNTING, BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR VANE PUMP), POWER STEERING TUBE, HEATING & AIR CONDITIONING - COMPRESSOR.
