Toyota COROLLA — V-BELT

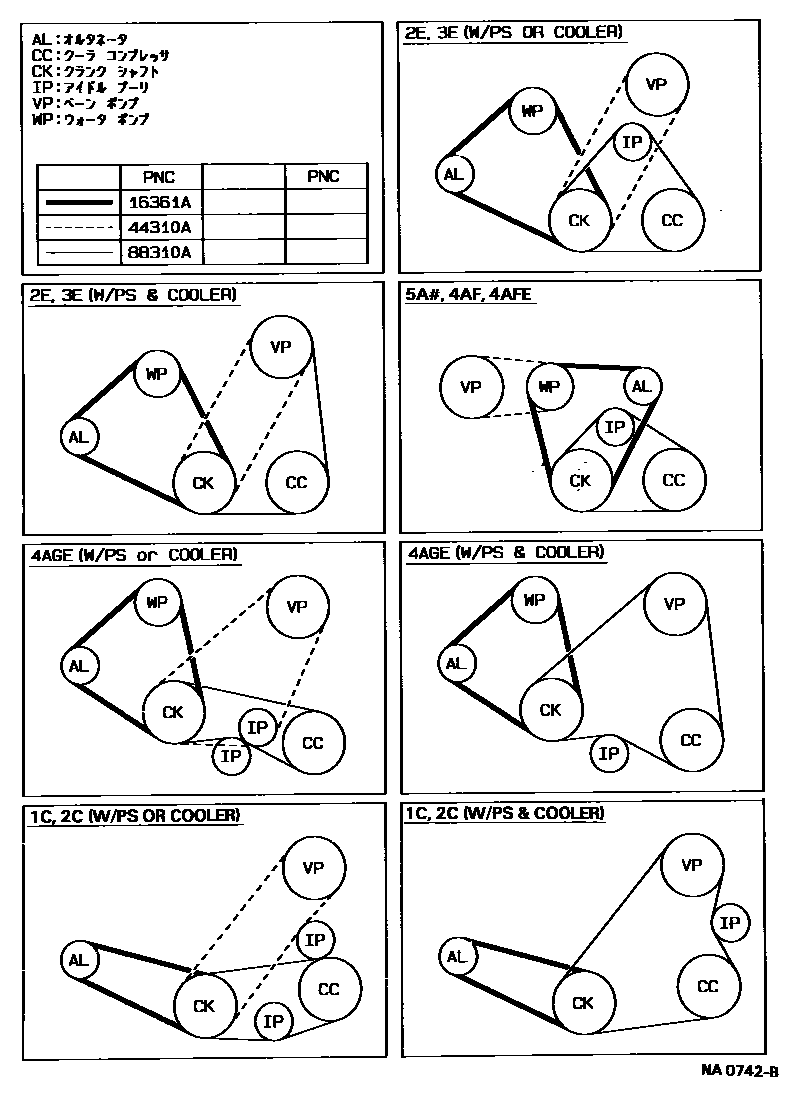

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02135i198908-199007

main90916-02140i198705-198905

main90916-02148i198805-199205

main90916-02155i198705-198708

main90916-02182i198905-198908

main90916-02212i198905-198908

main90916-02237i198908-198912

main90916-02301i198912-199109

main90916-02332i199007-199109

main90916-02341i199008-199109

main99365-00970i198705-198805

main99365-00980i198907-199005

main99365-20970i199005-199205

main99365-20980i199005-199205

main99365-50820i198802-198805

44310ABELT, V(FOR VANE PUMP)

main90916-02207i198711-198905

main90916-02256i198905-198908

main99363-50630i198705-198905

main99365-50890i198705-198905

main99365-50920i198705-199205

main99365-51120i198705-198711

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90099-82018i198908-199109

main90916-02186i198905-199205

main90916-02187i198905-199205

main90916-02200i198705-198708

main90916-02201i198905-199205

main90916-02203i198805-199106

main90916-02246i198908-199109

main99364-50840i198805-198905

main99365-00880i198708-198908

main99365-01060i198801-198808

main99365-50790i198708-198908

main99365-50870i198707-199106

main99365-51210i198705-198801

3 parts on this diagram · 1 diagram in section

V-BELT for Toyota COROLLA

This section contains 3 genuine Toyota parts for the V-BELT system of the Toyota COROLLA. Key components include: BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR VANE PUMP), BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
