Toyota COROLLA — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

82600FFUSE, FUSE BLOCK

main90982-07011iAE8#,CE80,EE80198305-198704

main90982-09002×8iAE8#,CE80,EE80198305-198704

main90982-09003×8iAE8#,CE80,EE80198305-198704

main90982-09004×2iAE8#,CE80,EE80198305-198704

main90982-09005×7iAE8#,CE80,EE80198305-198704

82616PULLER, FUSE

main82616-12020iAE8#,CE80,EE80198305-198704

82660BLOCK ASSY, RELAY, ENGINE ROOM

main82660-12150iAE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX198305-198409

main82660-12160iAE8#,CE80,EE80198409-198704

82661COVER, RELAY BLOCK, NO.1

main82661-12040iAE8#,CE80,EE80198409-198704

ENGINE ROOM

main82661-12070iAE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX198305-198409

ENGINE ROOM

main82661-12090iAE8#,CE80,EE80198305-198704

COWL SIDE

83391SWITCH, VACUUM

main83391-12120iEE80..4F198505-198704

MARK=125M

main83391-12130iEE80..CTD,FXD198505-198704

MARK=200B

main83391-12140iEE80..CTD,FXD198505-198704

MARK=355M,*52

main83391-14061iAE80,81198305-198505

main83391-22070iEE80..CTD,FXD198505-198704

MARK=85M

83399BRACKET, VACUUM SWITCH

main83399-12090iEE80..CTD,FXD198505-198704

NO.1

main83399-12110iEE80..4F198505-198704

NO.1

main83399-22011iAE80;AE81..4F..DX;AE81..GL,SE,SX,ZX198305-198308

main83399-27030iAE80,81198308-198704

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iEE80198505-198704

main83420-20020iAE8#,CE80198305-198704

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12040iAE80,82;AE81..4F..DX;AE81..FXD,FXG,FXL,GL,SE,SX,ZX198305-198502

main83530-14040iAE8#,EE80198502-198511

main83530-30042iCE80198409-198502

sub83530-30050

main83530-30060iCE80198502-198704

sub83530-60030

main83530-30080iAE8#,EE80198511-198704

sub83530-60040

main83530-36011iCE80198305-198409

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021iAE8#,CE80,EE80..MTM198305-198704

84540SWITCH ASSY, NEUTRAL START

main84540-12160iAE80,81,CE80,EE80..ATM198305-198704

main84540-32050iAE82..4FC198305-198704

85430VALVE, OUTER VENT CONTROL

main85430-12061iAE80,81198305-198505

main90925-09003iAE81,EE80198505-198704

AISAN

main90925-09004iAE81,EE80198505-198704

DENSO

sub90925-09032

85915RELAY, MAIN

main85913-30020iAE8#,CE80,EE80198305-198704

85916RELAY, LIGHT CONTROL

main90987-01003×2iAE8#,CE80,EE80198305-198704

85925RELAY, RADIATOR FAN

main90987-03001iAE8#,CE80,EE80198305-198704

88630GRELAY ASSY, COOLER

main88630-32010iAE8#,CE80,EE80198305-198704

W/COOLER

88630HRELAY ASSY, COOLER

main90987-02004iAE8#,CE80,EE80198305-198704

W/COOLER

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-10100iEE80198505-198704

COOLING FAN,AISIN

main89428-10110iEE80198608-198704

COOLING FAN,DENSO

main89428-15011iAE8#198305-198704

COOLING FAN

sub89428-32010

main89428-15030iCE80198305-198704

COOLING FAN

89453SWITCH, THROTTLE POSITION (FOR T.C.S.)

main89453-14010iEE80198505-198704

89465SENSOR, OXYGEN

main89465-10010iEE80198505-198704

main89465-12070iAE81198505-198704

main89465-19085iAE80,82;AE81..4F..DX;AE81..GL,SE,SX,ZX198305-198404

main89465-19125iAE82..FXT,GT198410-198704

main89465-29135iAE82..FXR,SE,SR,SX,ZX198404-198704

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9011906053

main90119-06053

9017906115

main90179-06115

9043018007

main90430-18007

9165100612

main91651-00612

9165140620

main91651-40620

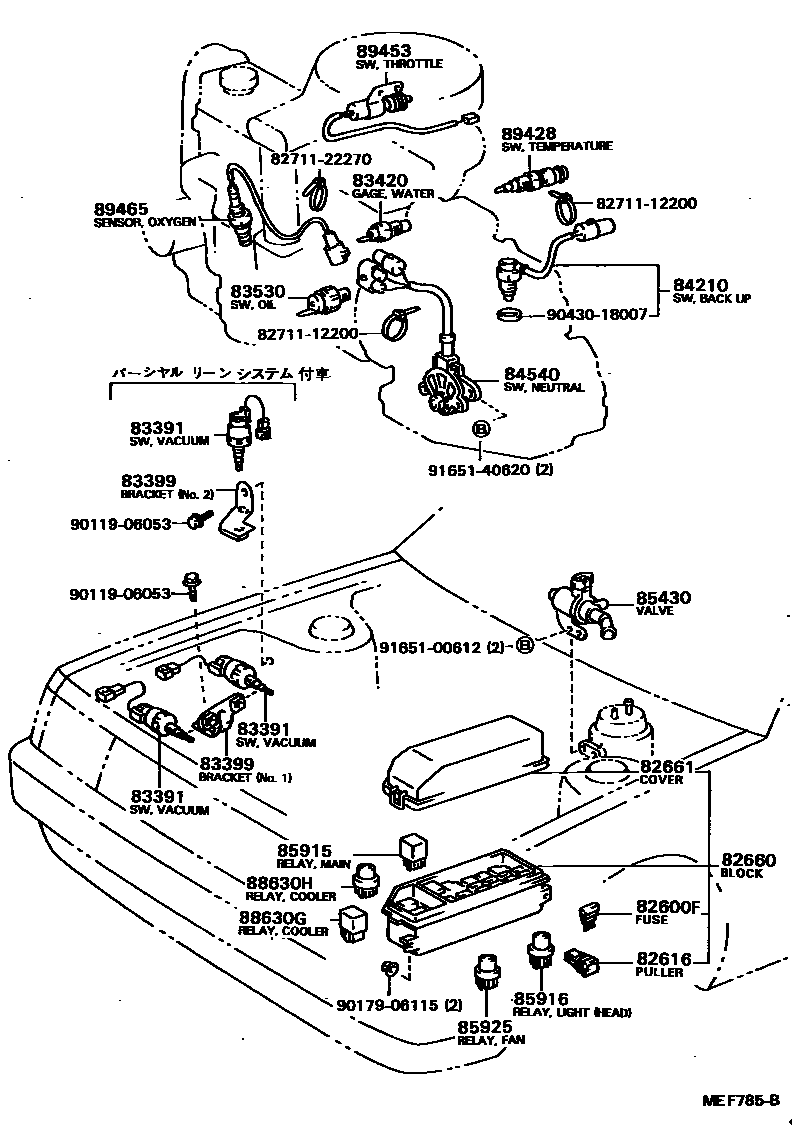

26 parts on this diagram · 7 diagrams in section
