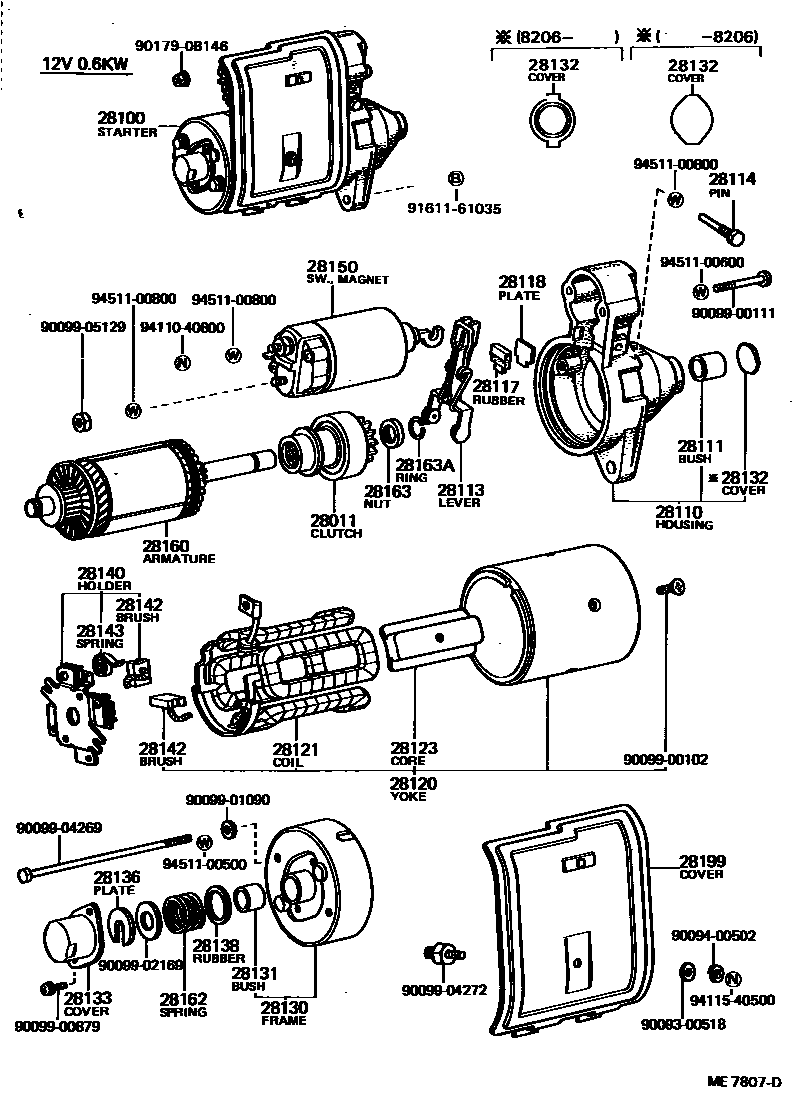

Toyota COROLLA — STARTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

28011CLUTCH SUB-ASSY, STARTER

main28011-13060i4K#..KE72,73198608-198707

12V 0.6KW

main28011-15010i12TJ,13TU,3AU,2TGEU..AE70,TE7#198008-198308

12V 0.8KW

main28011-22020i4K#..KE72,73198308-198608

12V 0.6KW

main28011-26042i12TJ,13TU,3AU,4K#,5KJ,2TGEU..AE70,KE7#,TE7#197903-198707

12V 1.0KW & 0.9KW

main28011-64010i1C..CE7#198202-198707

12V 1.4KW

sub28011-67030

main28011-64020i1C..CE7#..5F198202-198707

12V 2.0KW

main28011-64030i1C..CE70..4FC198202-198304

12V 2.5KW

28100STARTER ASSY

main28100-13010i4K#,5KJ..KE7#197903-198707

main28100-13060i4K#..KE72,73198608-198705

main28100-13061i4K#..KE72,73198705-198707

sub28100-13130

main28100-15031i3AU..AE70197903-198304

main28100-15040i3AU..AE70197903-198304

main28100-24031i4K#..KE72,73198308-198608

main28100-26063i2TGEU..TE71197903-198002

12V 1.0KW,REDUCTION TYPE

main28100-26141i2TGEU..TE71197903-197905

12V 0.8KW

main28100-26142i12TJ,13TU,2TGEU..TE7#..MTM197905-198008

main28100-27010i12TJ,13TU,2TGEU..TE7#198002-198008

12V 1.0KW,REDUCTION TYPE

sub28100-26070

main28100-27020i12TJ,13TU,2TGEU..TE7#198008-198308

main28100-27030i12TJ,13TU,2TGEU..TE7#198008-198308

main28100-64010i1C..CE7#198202-198309

main28100-64020i1C..CE7#..5F198202-198707

sub28100-64040

main28100-64030i1C..CE71..4FC198508-198707

main28100-64100i1C..CE7#198309-198707

28110HOUSING ASSY, STARTER DRIVE

main28110-13010i4K#,5KJ..KE7#197903-198707

12V 1.0KW

main28110-13060i4K#..KE72,73198608-198707

12V 0.6KW

main28110-15031i3AU..AE70197903-198304

12V 0.8KW

main28110-15040i3AU..AE70197903-198304

12V 1.0KW

main28110-24010i4K#..KE72,73198308-198608

12V 0.6KW

main28110-26070i12TJ,13TU,2TGEU..TE7#198002-198008

12V 1.0KW

main28110-26141i12TJ,13TU,2TGEU..TE7#..MTM197903-198008

12V 0.8KW

main28110-27020i12TJ,13TU,2TGEU..TE7#198008-198308

12V 0.8KW

main28110-27030i12TJ,13TU,2TGEU..TE7#198008-198308

12V 1.0KW

main28110-64070i1C..CE7#198309-198707

12V 1.4KW

main28115-26040i2TGEU..TE71197903-198002

12V 1.0KW

main28115-64010i1C..CE7#198202-198309

12V 1.4KW

main28115-64020i1C..CE7#..5F198202-198707

12V 2.0KW

main28115-64030i1C..CE70..4FC198202-198304

12V 2.5KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i3AU..AE70198107-198304

12V 0.8KW

main90099-10158i4K#..KE72,73198608-198707

12V 0.6KW

28113LEVER, STARTER PINION DRIVE

main28113-13060i4K#..KE72,73198608-198707

12V 0.6KW

main28113-15011i12TJ,13TU,3AU,2TGEU..AE70,TE7#198008-198308

12V 0.8KW

main28113-41011i4K#..KE7#197903-198308

12V 0.6KW

28114PIN, STARTER DRIVE LEVER SET

main28114-25010i4K#..KE7#197903-198308

12V 0.6KW

28117RUBBER(FOR STARTER YOKE)

main28117-15050i4K#..KE72,73198308-198608

12V 0.6KW

main28117-41013i4K#..KE7#197903-198206

12V 0.6KW

main90099-06031×2i2TGEU..TE71197903-198002

12V 1.0KW

main90099-14058i1C..CE7#..5F198202-198707

12V 2.0KW

main90099-14064×2i1C..CE7#198309-198707

12V 1.4KW

28118PLATE(FOR STARTER YOKE)

main28118-41013i4K#..KE7#197903-198206

12V 0.6KW

main28118-77090i1C..CE71..4FC198508-198707

12V 2.5KW

28120YOKE ASSY, STARTER

main28120-13060i4K#..KE72,73198608-198707

12V 0.6KW

main28120-15010i3AU..AE70197903-198304

12V 0.8KW

main28120-15090i1C..CE7#198309-198707

12V 1.4KW

main28120-24030i4K#..KE72,73198308-198608

12V 0.6KW

main28120-26041i2TGEU..TE71197903-198002

12V 1.0KW

main28120-26070i12TJ,13TU,3AU,4K#..AE70,KE7#,TE70,73197903-198002

12V 1.0KW

main28120-26071i3AU,4K#,5KJ,2TGEU..AE70,KE7#,TE71198203-198707

12V 1.0KW

main28120-26140i12TJ,13TU,2TGEU..TE7#198008-198308

12V 0.8KW

main28120-34030i1C..CE7#198202-198309

12V 1.4KW

main28120-47040i1C..CE71..4FC198508-198707

12V 2.5KW

main28120-64020i1C..CE7#..5F198202-198707

12V 2.0KW

28121COIL, STARTER FIELD

main28121-22011i4K#..KE7#197903-198308

12V 0.6KW

main28121-22012i4K#..KE72,73198308-198608

12V 0.6KW

28123CORE, STARTER POLE

main28123-10011×4i4K#..KE7#197903-198308

12V 0.6KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13010i4K#,5KJ..KE7#197903-198707

12V 1.0KW

main28130-13060i4K#..KE72,73198608-198707

12V 0.6KW

main28130-15010i3AU..AE70197907-198304

12V 0.8KW

main28130-15030i3AU..AE70197903-197907

12V 0.8KW

main28130-15040i3AU..AE70197903-198304

12V 1.0KW

main28130-21011i4K#..KE72,73198308-198608

12V 0.6KW

main28130-26070i12TJ,13TU..TE70,73197908-198002

12V 1.0KW

main28130-26140i2TGEU..TE71197903-197905

12V 0.8KW

main28130-37010i12TJ,13TU,2TGEU..TE7#198008-198308

12V 0.8KW

main28130-64030i1C..CE70..4FC198202-198304

12V 2.5KW

main28130-64100i1C..CE7#198309-198707

12V 1.4KW

28131BUSH, COMMUTATOR END FRAME

main28131-20010i4K#..KE72,73198308-198608

12V 0.6KW,STD

main90099-10039i4K#..KE7#197903-198308

12V 0.6KW,U/S 0.3

main90099-10040i4K#..KE72,73198308-198608

12V 0.6KW,U/S 0.5

main90099-10134i12TJ,2TGEU..TE7#198108-198308

12V 0.8KW

main90099-10157i4K#..KE72,73198608-198707

12V 0.6KW

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28166-24030i4K#..KE70,72,73198206-198608

12V 0.6KW

main28166-41011i4K#..KE7#197903-198206

12V 0.6KW

28133COVER, BEARING(FOR END FRAME)

main28132-15010i3AU,2TGEU..AE70,TE71;12TJ,13TU..TE70,73..MTM197903-198008

12V 0.8KW

sub28132-15011

main28132-41011i4K#..KE72,73198308-198608

12V 0.6KW

28136PLATE, STARTER LOCK

main28136-15010i12TJ,13TU,3AU,2TGEU..AE70,TE7#198008-198308

12V 0.8KW

main28136-41011i4K#..KE72,73198308-198608

12V 0.6KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i12TJ,13TU,3AU,2TGEU..AE70,TE7#198008-198308

12V 0.8KW

main28138-41011i4K#..KE7#197903-198308

12V 0.6KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i12TJ,13TU,3AU,2TGEU..AE70,TE7#198008-198308

12V 0.8KW

main28140-15090i1C..CE7#198309-198707

12V 1.4KW

main28140-22011i4K#..KE72,73198308-198608

12V 0.6KW

main28140-26070i12TJ,13TU,3AU,4K#..AE70,KE7#,TE70,73197903-198002

12V 1.0KW

main28140-34030i1C..CE7#198202-198309

12V 1.4KW

main28140-54070i1C..CE7#..5F198202-198707

12V 2.0KW

main28140-77090i1C..CE70..4FC198202-198304

12V 2.5KW

28142BRUSH, STARTER

main28142-10011×2i4K#..KE7#197903-198308

12V 0.6KW

main28142-10020×4i4K#..KE72,73198608-198707

12V 0.6KW

28143SPRING, STARTER BRUSH

main28143-10020i4K#..KE72,73198608-198707

12V 0.6KW

main28143-40010×4i4K#..KE7#197903-198308

12V 0.6KW

main28143-40040i4K#..KE72,73198308-198608

12V 0.6KW

main90099-17112×4i12TJ,13TU,3AU,1C,4K#,5KJ,2TGEU..AE70,CE7#,KE7#,TE7#197903-198707

12V 1.0KW,1.4KW

main90099-17115i1C..CE7#..5F198202-198707

12V 2.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-10020i4K#..KE72,73198608-198707

12V 0.6KW

sub28150-10021

main28150-13010i4K#..KE7#197903-198108

12V 1.0KW

main28150-13011i4K#,5KJ..KE7#198108-198707

12V 1.0KW

main28150-15011i3AU..AE70198003-198009

12V 0.8KW

main28150-15012i3AU..AE70198009-198301

12V 0.8KW

main28150-15040i3AU..AE70197903-198110

12V 1.0KW

main28150-15070i3AU..AE70198110-198304

12V 1.0KW

main28150-24060i4K#..KE7#197903-198308

12V 0.6KW

main28150-24061i4K#..KE72,73198308-198608

12V 0.6KW

main28150-26062i2TGEU..TE71197903-198002

12V 1.0KW

main28150-27010i12TJ,13TU..TE70,73197908-198002

12V 1.0KW

main28150-27030i12TJ,13TU,2TGEU..TE7#198008-198108

12V 1.0KW

main28150-27031i12TJ,2TGEU..TE7#198108-198308

12V 1.0KW

main28150-37010i3AU..AE70198301-198304

12V 0.8KW

sub28150-37011

main28150-64010i1C..CE7#198202-198309

12V 1.4KW

main28150-64020i1C..CE7#..5F198202-198707

12V 2.0KW

main28150-64030i1C..CE70..4FC198202-198304

12V 2.5KW

sub28150-17010

main28150-64070i1C..CE7#198309-198707

12V 1.4KW

28160ARMATURE ASSY, STARTER

main28160-10020i4K#..KE72,73198608-198707

12V 0.6KW

main28160-15010i12TJ,13TU,3AU,2TGEU..AE70,TE7#198008-198308

12V 0.8KW

main28160-15090i1C..CE7#198309-198707

12V 1.4KW

sub28160-15091

main28160-22011i4K#..KE7#197903-198308

12V 0.6KW

main28160-26040i2TGEU..TE71197903-198002

12V 1.0KW

main28160-26050i1C..CE7#198202-198309

12V 1.4KW

main28160-26070i12TJ,13TU,3AU,4K#..AE70,KE7#,TE70,73197903-198002

12V 1.0KW

sub28160-26071

main28160-47040i1C..CE70..4FC198202-198304

12V 2.5KW

sub28160-54140

main28160-54070i1C..CE7#..5F198202-198707

12V 2.0KW

sub28160-54071

28162SPRING, STARTER BRAKE

main28162-15010i12TJ,13TU,3AU,2TGEU..AE70,TE7#198008-198308

12V 0.8KW

main28162-41011i4K#..KE7#197903-198308

12V 0.6KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-10020×2i4K#..KE72,73198608-198707

12V 0.6KW

sub28163-10021

main28163-40011i4K#..KE72,73198308-198608

12V 0.6KW

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i3AU,2TGEU..AE70,TE71;12TJ,13TU..TE70,73..MTM197903-198008

12V 0.8KW

main90099-07124i4K#..KE72,73198608-198707

12V 0.6KW

28199COVER, STARTER

main28159-13060i4K#..KE72,73198608-198707

12V 0.6KW

main28199-13010i4K#..KE7#198011-198108

12V 1.0KW

main28199-13011i4K#,5KJ..KE7#198108-198707

12V 1.0KW

main28199-15110i12TJ..TE74198304-198308

12V 0.8KW

main28199-24030i4K#..KE72,73198308-198608

12V 0.6KW

main28199-26070i4K#..KE7#198002-198011

12V 1.0KW

main28199-26130i2TGEU..TE71197903-197905

12V 0.8KW

sub28138-26142

main28199-26131i12TJ,13TU,2TGEU..TE7#..MTM197905-198008

12V 0.8KW

main28199-27010i12TJ,13TU,2TGEU..TE7#198002-198008

12V 1.0KW

main28199-27030i12TJ,13TU,2TGEU..TE7#198008-198108

12V 1.0KW

main28199-27031i12TJ,2TGEU..TE7#198108-198308

12V 1.0KW

main28199-77090i3AU..AE70197903-198304

12V 0.8KW

9009300518

main90093-00518

9009400502

main90094-00502

9009900102

main90099-00102

9009900111

main90099-00111

9009900879

main90099-00879

9009901090

main90099-01090

9009902169

main90099-02169

9009904269

main90099-04269

9009904272

main90099-04272

9009905129

main90099-05129

9017908146

main90179-08146

9161161035

main91611-61035

9411040800

main94110-40800

9411540500

main94115-40500

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

43 parts on this diagram · 12 diagrams in section
