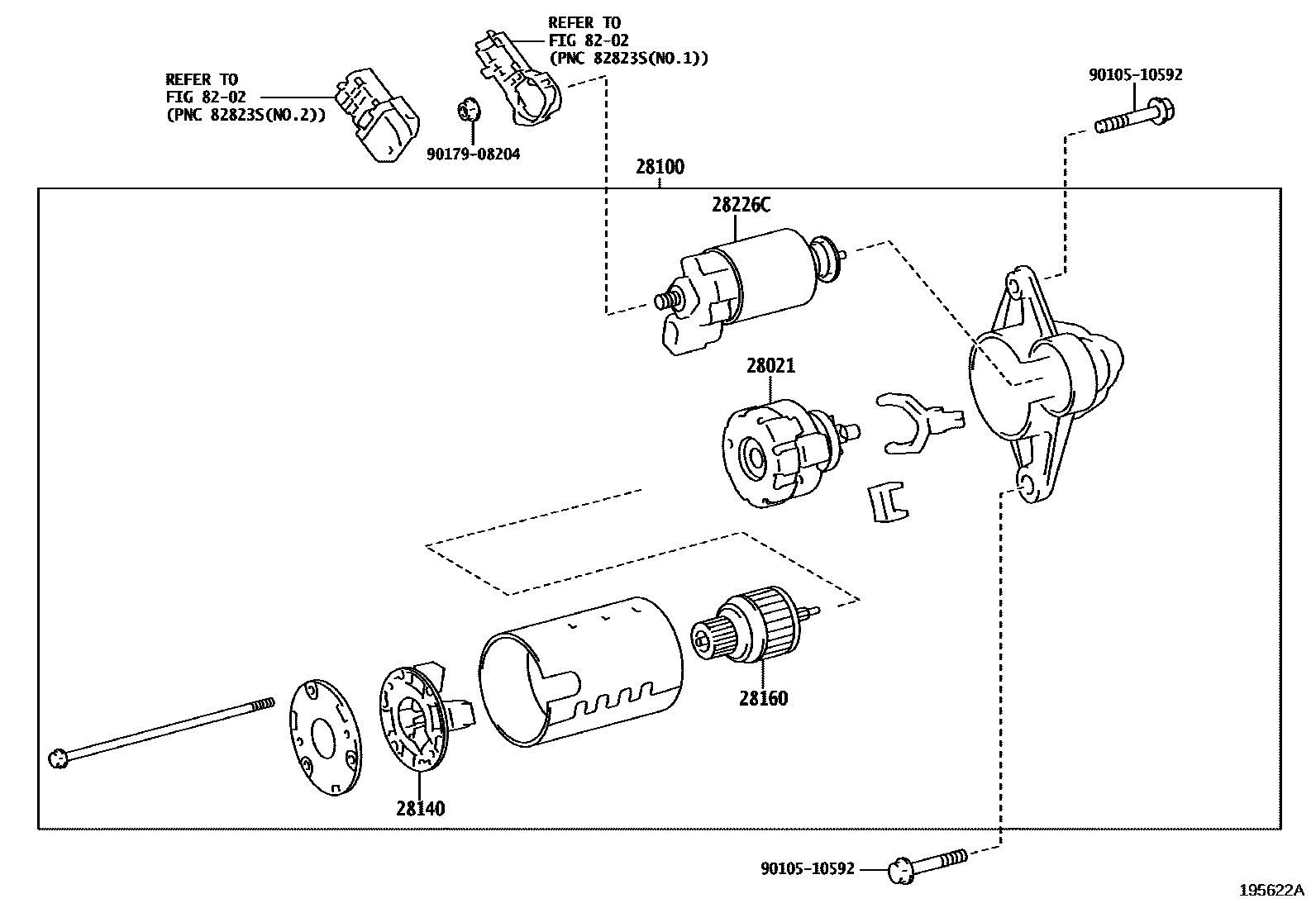

Toyota COROLLA — STARTER

0001 112V 1.0KW,1.2KW 0002 112V 1.6KW 0003 112V 1.0KW,1.2KW 0004 112V 1.0KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-24120iM20AFKS..MZEA12202006

main28021-47170i8NRFTS,2ZRFAE..NRE210,ZRE212201908

main28021-K0040iM15AFKS..MZEA17202210-202504

main28021-47270i8NRFTS..NRE210201908

28100STARTER ASSY

main28100-37150i8NRFTS,2ZRFAE..NRE210,ZRE212201908

main28100-K0040iM15AFKS..MZEA17202210-202504

main28100-24120supersedes 28100-24160iM20AFKS..MZEA12202006

main28100-37130i2ZRFAE..ZRE212201908

main28100-47270i8NRFTS..NRE210201908

28140HOLDER ASSY, STARTER BRUSH

main28140-21070iM20AFKS,8NRFTS,2ZRFAE..MZEA12,NRE210,ZRE212201908

main28140-37050i8NRFTS..NRE210201908

28160ARMATURE ASSY, STARTER

main28160-21070iM15AFKS..MZEA17202210-202504

main28160-21080iM20AFKS,2ZRFAE..MZEA12,ZRE212201908

main28160-47280i8NRFTS..NRE210201908

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-24120iM20AFKS..MZEA12202006

main28226-37130i8NRFTS,2ZRFAE..NRE210,ZRE212201908

main28226-K0040iM15AFKS..MZEA17202210-202504

8202

9010510592

main90105-10592

9017908204

main90179-08204

8 parts on this diagram · 4 diagrams in section
