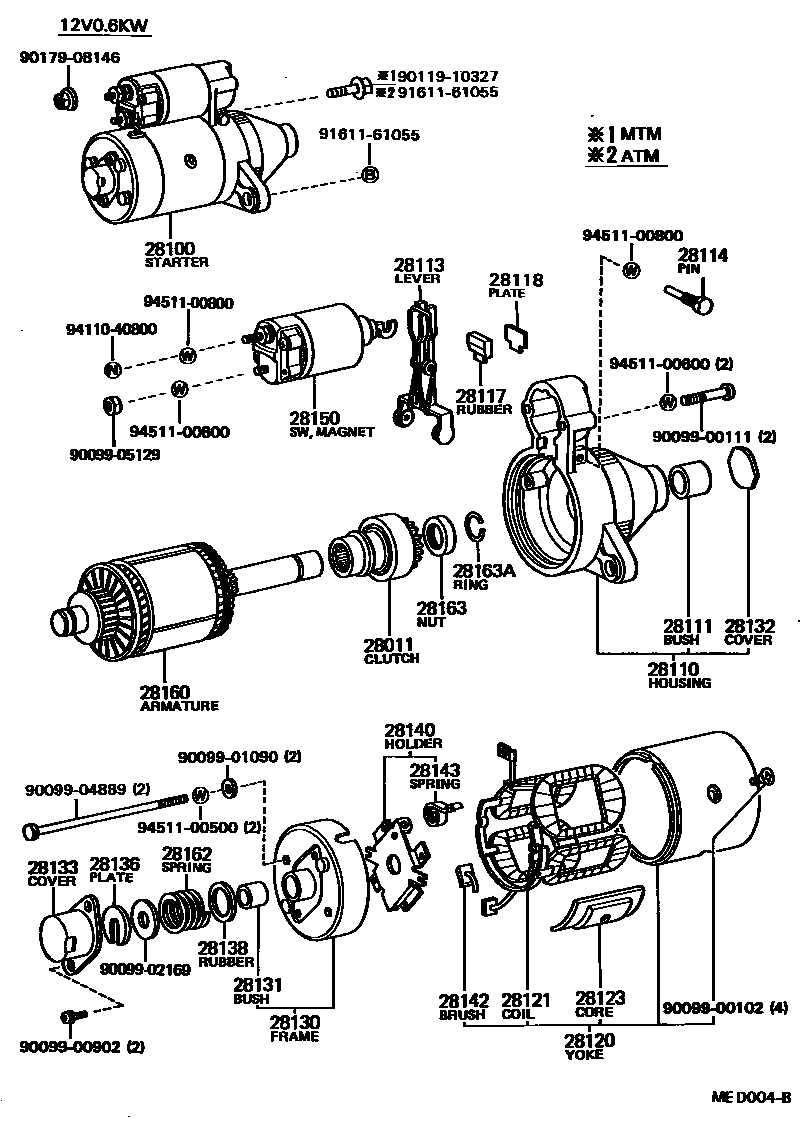

Toyota COROLLA — STARTER

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1

28011CLUTCH SUB-ASSY, STARTER

main28011-10030i2ELU..EE80198505-198704

12V 0.8KW

main28011-15010i3ALU,4A#..AE81,82198401-198704

12V 0.8KW

main28011-22020i2ALU..AE80198305-198505

12V 0.6KW

main28011-26042i2ALU,3ALU,4A#,2ELU..AE8#,EE80198305-198704

12V 1.0KW

main28011-64010i1CL..CE80198305-198704

12V 1.4KW

sub28011-67030

main28011-64020i1CL..CE80..5F198305-198704

12V 2.0KW

main28011-64030i1CL..CE80..ATM198305-198704

12V 2.5KW

28100STARTER ASSY

main28100-10030i2ELU..EE80198505-198704

sub28100-11010

main28100-10040i2ELU..EE80198505-198704

main28100-15060i3ALU,4AELU..AE81,82198401-198704

main28100-15070i2ALU,3ALU,4AELU..AE8#198305-198704

sub28100-15120

main28100-15140i2ALU..AE80198305-198505

12V 0.6KW

main28100-15170i4AGELU..AE82198410-198704

main28100-15180i4AGELU..AE82198410-198704

main28100-64020i1CL..CE80..5F198305-198704

sub28100-64040

main28100-64030i1CL..CE80..ATM198305-198704

main28100-64070i1CL..CE80198305-198704

sub28100-64040

28110HOUSING ASSY, STARTER DRIVE

main28110-10030i2ELU..EE80198505-198704

12V 0.8KW

main28110-10040i2ELU..EE80198505-198704

12V 1.0KW

main28110-15060i3ALU,4AELU..AE81,82..GL,SE,SR,SX,ZX198305-198401

12V 0.8KW

main28110-15070i2ALU,3ALU,4AELU..AE8#198305-198704

12V 1.0KW

main28110-15110i4AGELU..AE82198410-198704

12V 0.8KW

main28110-15130i4AGELU..AE82198410-198704

12V 1.0KW

main28110-15140i2ALU..AE80198305-198505

12V 0.6KW

main28110-64070i1CL..CE80198305-198704

12V 1.4KW

main28115-64020i1CL..CE80..5F198305-198704

12V 2.0KW

main28115-64030i1CL..CE80..ATM198305-198704

12V 2.5KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i2ALU,4AELU..AE80,82;3ALU..AE81..GL,SE,SX,ZX198305-198401

12V 0.6KW,0.8KW

28113LEVER, STARTER PINION DRIVE

main28113-15011i3ALU,4AELU..AE81,82..GL,SE,SR,SX,ZX198305-198401

12V 0.8KW

main28113-41011i2ALU..AE80198305-198505

12V 0.6KW

28114PIN, STARTER DRIVE LEVER SET

main28114-25010i2ALU..AE80198305-198505

12V 0.6KW

28117RUBBER(FOR STARTER YOKE)

main28117-41013i2ALU..AE80198305-198505

12V 0.6KW

main90099-14058i1CL..CE80..5F198305-198704

12V 2.0KW

28118PLATE(FOR STARTER YOKE)

main28118-41013i2ALU..AE80198305-198505

12V 0.6KW

main28118-77090i1CL..CE80..ATM198305-198704

12V 2.5KW

28120YOKE ASSY, STARTER

main28120-15010i3ALU,4AELU..AE81,82..GL,SE,SR,SX,ZX198305-198401

12V 0.8KW

main28120-15090i1CL..CE80198305-198704

12V 1.4KW

main28120-22011i2ALU..AE80198305-198505

12V 0.6KW

main28120-26071i2ALU,3ALU,4A#,2ELU..AE8#,EE80198305-198704

12V 1.0KW

main28120-26140i4AGELU..AE82198410-198704

12V 0.8KW

main28120-56081i1CL..CE80..ATM198305-198704

12V 2.5KW

main28120-64020i1CL..CE80..5F198305-198704

12V 2.0KW

28121COIL, STARTER FIELD

main28121-22011i2ALU..AE80198305-198505

12V 0.6KW

sub28121-22012

28123CORE, STARTER POLE

main28123-10011×4i2ALU..AE80198305-198505

12V 0.6KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13010i4AGELU..AE82198410-198704

12V 1.0KW

main28130-13020i4AGELU..AE82198410-198704

12V 0.8KW

main28130-15010i3ALU,4AELU..AE81,82198401-198704

12V 0.8KW

main28130-15040i2ALU,3ALU,4AELU..AE8#198305-198704

12V 1.0KW

main28130-15090i1CL..CE80198305-198704

12V 1.4KW

main28130-21011i2ALU..AE80198305-198505

12V 0.6KW

main28130-34060i2ELU..EE80198505-198704

12V 1.0KW

main28130-37010i2ELU..EE80198505-198704

12V 0.8KW

main28130-64030i1CL..CE80..ATM198305-198704

12V 2.5KW

28131BUSH, COMMUTATOR END FRAME

main28131-20010i2ALU..AE80198305-198505

12V 0.6KW,STD

main90099-10039i2ALU..AE80198305-198505

12V 0.6KW,U/S 0.3

main90099-10040i2ALU..AE80198305-198505

12V 0.6KW,U/S 0.5

main90099-10134i3ALU,4AELU..AE81,82..GL,SE,SR,SX,ZX198305-198401

12V 0.8KW

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28166-24030i2ALU..AE80198305-198505

12V 0.6KW

28133COVER, BEARING(FOR END FRAME)

main28132-15010i3ALU,4AELU..AE81,82..GL,SE,SR,SX,ZX198305-198401

12V 0.8KW

sub28132-15011

main28132-41011i2ALU..AE80198305-198505

12V 0.6KW

28136PLATE, STARTER LOCK

main28136-15010i3ALU,4AELU..AE81,82..GL,SE,SR,SX,ZX198305-198401

12V 0.8KW

main28136-41011i2ALU..AE80198305-198505

12V 0.6KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i3ALU,4AELU..AE81,82..GL,SE,SR,SX,ZX198305-198401

12V 0.8KW

main28138-41011i2ALU..AE80198305-198505

12V 0.6KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i3ALU,4AELU..AE81,82..GL,SE,SR,SX,ZX198305-198401

12V 0.8KW

main28140-15090i1CL..CE80198305-198704

12V 1.4KW

main28140-22011i2ALU..AE80198305-198505

12V 0.6KW

main28140-26070i2ALU,3ALU,4A#,2ELU..AE8#,EE80198305-198704

12V 1.0KW

main28140-54070i1CL..CE80..5F198305-198704

12V 2.0KW

main28140-77090i1CL..CE80..ATM198305-198704

12V 2.5KW

28142BRUSH, STARTER

main28142-10011i2ALU..AE80198305-198505

12V 0.6KW

28143SPRING, STARTER BRUSH

main28143-40040×2i2ALU..AE80198305-198505

12V 0.6KW

main90099-17112×4i2ALU,3ALU,4A#,1CL,2ELU..AE8#,CE80,EE80198305-198704

12V 1.0KW,1.4KW

main90099-17115×4i1CL..CE80..5F198305-198704

12V 2.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-13011i4AGELU..AE82198410-198704

12V 1.0KW

main28150-15070i2ALU,3ALU,4AELU..AE8#198305-198704

12V 1.0KW

main28150-22011i2ALU..AE80198305-198505

12V 0.6KW

main28150-34080i2ELU..EE80198505-198704

12V 1.0KW

main28150-37010i3ALU,4A#,2ELU..AE81,82,EE80198401-198704

12V 0.8KW

sub28150-37011

main28150-64020i1CL..CE80..5F198305-198704

12V 2.0KW

main28150-64030i1CL..CE80..ATM198305-198704

12V 2.5KW

sub28150-17010

main28150-64070i1CL..CE80198305-198704

12V 1.4KW

28160ARMATURE ASSY, STARTER

main28160-15010i3ALU,4A#,2ELU..AE81,82,EE80198401-198704

12V 0.8KW

main28160-15090i1CL..CE80198305-198704

12V 1.4KW

sub28160-15091

main28160-22011i2ALU..AE80198305-198505

12V 0.6KW

main28160-26070i2ALU,3ALU,4A#,2ELU..AE8#,EE80198305-198704

12V 1.0KW

sub28160-26071

main28160-47040i1CL..CE80..ATM198305-198704

12V 2.5KW

sub28160-54140

main28160-54070i1CL..CE80..5F198305-198704

12V 2.0KW

sub28160-54071

28162SPRING, STARTER BRAKE

main28162-15010i3ALU,4A#,2ELU..AE81,82,EE80198401-198704

12V 0.8KW

main28162-41011i2ALU..AE80198305-198505

12V 0.6KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i2ALU,4AELU..AE80,82;3ALU..AE81..GL,SE,SX,ZX198305-198401

12V 0.6KW,0.8KW

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i2ALU,4AELU..AE80,82;3ALU..AE81..GL,SE,SX,ZX198305-198401

12V 0.6KW,0.8KW

9009900102

main90099-00102

9009900111

main90099-00111

9009900902

main90099-00902

9009901090

main90099-01090

9009902169

main90099-02169

9009904889

main90099-04889

9009905129

main90099-05129

9011910327

main90119-10327

9017908146

main90179-08146

9161161055

main91611-61055

9411040800

main94110-40800

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

39 parts on this diagram · 8 diagrams in section
