Toyota COROLLA — SIDE MOULDING

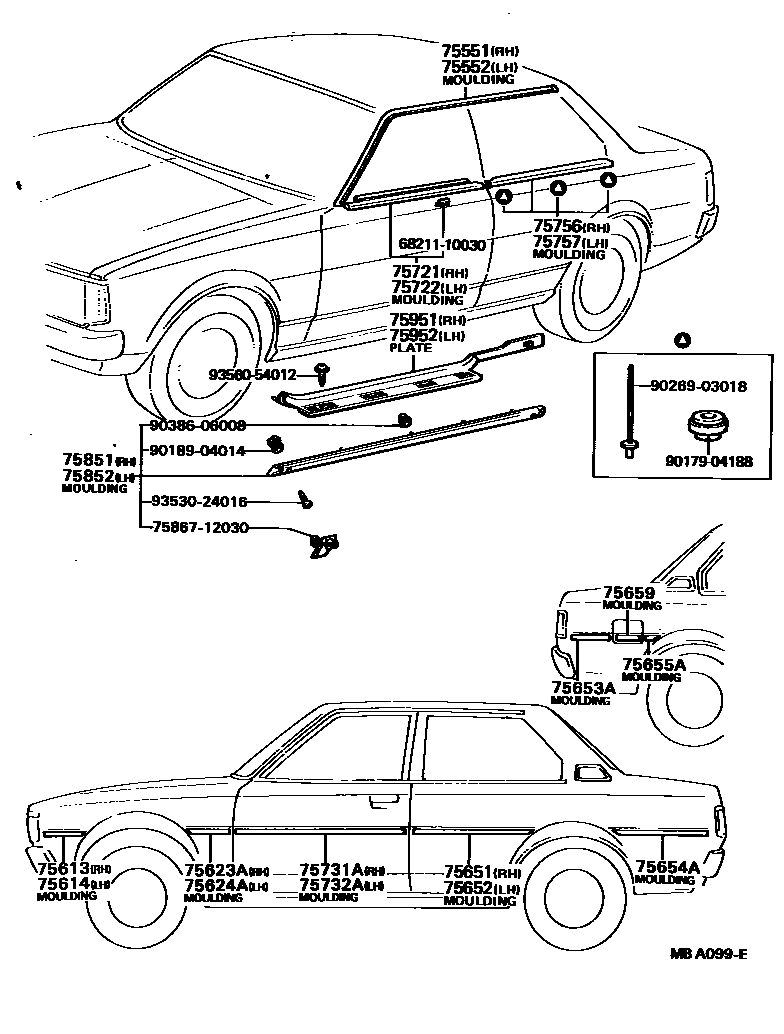

Parts diagram
75551MOULDING, ROOF DRIP SIDE FINISH, RH
main75551-12210i197903-198304
main75551-12230i197903-198304
main75551-12240i198006-198006
BLACK
main75551-12260i197903-198108
main75551-12270i197903-198108
main75551-13050i198508-198707
main75551-13060i198308-198707
75552MOULDING, ROOF DRIP SIDE FINISH, LH
main75552-12210i197903-198304
main75552-12230i197903-198304
main75552-12240i198006-198006
BLACK
main75552-12260i197903-198108
main75552-12270i197903-198108
main75552-13050i198308-198508
main75552-13060i198508-198707
75613MOULDING, FRONT FENDER, OUTSIDE RH
main75611-12120-01i197903-198304
BLACK,BLACK
main75611-12120-03i198108-198304
APEX,GRAY,GRAY
main75611-12160i197903-198108
main75611-12240i198108-198308
main75611-12900i197903-198108
ORANGE
main75611-12904i198006-198108
MAROON
main75611-13040i198308-198508
main75611-13090i198508-198707
WHITE
main75611-13120i198508-198707
BLACK
75614MOULDING, FRONT FENDER, OUTSIDE LH
main75612-12080-01i197903-198304
BLACK,BLACK
main75612-12080-03i198108-198304
APEX,GRAY,GRAY
main75612-12120i197903-198108
main75612-12200i198108-198308
main75612-12900i197903-198108
ORANGE
main75612-12904i198006-198108
MAROON
main75612-13040i198508-198707
main75612-13090i198508-198707
WHITE
main75612-13120i198508-198707
BLACK
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
main75623-12010-01i197903-198304
BLACK,BLACK
main75623-12010-03i198108-198304
APEX,GRAY,GRAY
main75623-12020i197903-198108
main75623-12060i198308-198508
main75623-12090i198205-198304
LIME
main75623-12140i198209-198304
SE SALOON
main75623-12900i197903-198108
ORANGE
main75623-12901i198006-198108
MAROON
main75623-13050i198508-198707
WHITE
main75623-13080i198508-198707
BLACK
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
main75624-12010-01i197903-198304
BLACK,BLACK
main75624-12010-03i198108-198304
APEX,GRAY,GRAY
main75624-12020i197903-198108
main75624-12060i198308-198508
main75624-12090i198205-198304
LIME
main75624-12140i198209-198304
SE SALOON
main75624-12900i197903-198108
ORANGE
main75624-12901i198006-198108
MAROON
main75624-13050i198508-198707
WHITE
main75624-13080i198508-198707
BLACK
75651MOULDING, QUARTER, OUTSIDE RH
main75651-12200-01i197903-198108
BLACK,BLACK
main75651-12200-03i198108-198304
APEX,GRAY,GRAY
main75651-12210i197903-198108
main75651-12260-01i198108-198304
BLACK,BLACK
main75651-12270i198108-198304
main75651-12914i197903-198108
ORANGE
main75651-12915i198006-198108
MAROON
75652MOULDING, QUARTER, OUTSIDE LH
main75652-12200-01i197903-198108
BLACK,BLACK
main75652-12200-03i198108-198304
APEX,GRAY,GRAY
main75652-12210i197903-198108
main75652-12260-01i198108-198304
BLACK,BLACK
main75652-12270i198108-198304
main75652-12914i197903-198108
ORANGE
main75652-12915i198006-198108
MAROON
75653AMOULDING, QUARTER, OUTSIDE REAR RH
main75653-12180-01i197903-198304
BLACK,BLACK
main75653-12180-03i198108-198304
APEX,GRAY,GRAY
main75653-12190i197903-198108
main75653-12250i198108-198304
main75653-12900i197903-198108
ORANGE
main75653-12901i198006-198108
MAROON
main75653-13050i198508-198707
main75653-13110i198508-198707
WHITE
main75653-13140i198508-198707
BLACK
75654AMOULDING, QUARTER, OUTSIDE REAR LH
main75654-12150-01i197903-198304
BLACK,BLACK
main75654-12150-03i198108-198304
APEX,GRAY,GRAY
main75654-12160i197903-198108
main75654-12230i198108-198304
main75654-12900i197903-198108
ORANGE
main75654-12901i198006-198108
MAROON
main75654-13050i198508-198707
main75654-13110i198508-198707
WHITE
main75654-13140i198508-198707
BLACK
75655AMOULDING, QUARTER, OUTSIDE CENTER RH
main75655-12070i197903-198108
main75655-12100i198108-198304
75659MOULDING, FUEL FILLER LID
main75659-12010i197903-198108
main75659-12040i198108-198304
75721MOULDING, FRONT DOOR BELT, RH
main75710-12150i197903-198108
main75710-12160i197903-198308
main75710-12270i198308-198508
W/DOOR MIRROR
main75710-13010i198508-198707
W/DOOR MIRROR
main75710-13020i198508-198707
W/O DOOR MIRROR
main75710-19035i197903-198004
main75710-19036i198004-198008
main75710-19037i198008-198304
PLANT.NO.M11,M12,B11
main75710-19045i197903-198004
main75710-19046i198004-198008
main75710-19047i198008-198304
PLANT.NO.M11,M12,B11
main75710-19075i198008-198304
PLANT.NO.A31,A32
main75710-19085i198008-198304
PLANT.NO.A31,A32
75722MOULDING, FRONT DOOR BELT, LH
main75720-12150i197903-198108
main75720-12160i198308-198508
W/O DOOR MIRROR
main75720-12270i198308-198508
W/DOOR MIRROR
main75720-13010i198508-198707
W/DOOR MIRROR
main75720-13020i198508-198707
W/O DOOR MIRROR
main75720-19035i197903-198004
main75720-19036i198004-198008
main75720-19037i198008-198304
PLANT.NO.M11,M12,B11
main75720-19045i197903-198004
main75720-19046i198006-198006
BLACK
main75720-19047i198008-198304
PLANT.NO.M11,M12,B11
main75720-19075i198008-198304
PLANT.NO.A31,A32
main75720-19085i198008-198304
PLANT.NO.A31,A32
75731AMOULDING, FRONT DOOR, OUTSIDE RH
main75731-12250-01i197903-198304
BLACK,BLACK
main75731-12250-03i198108-198304
APEX,GRAY,GRAY
main75731-12260i197903-198108
main75731-12270i197903-198108
main75731-12320i198108-198304
main75731-12330i198108-198308
main75731-12900i197903-198108
ORANGE
main75731-12901i198006-198108
MAROON
main75731-13080i198508-198707
WHITE
main75731-13110i198508-198707
BLACK
75732AMOULDING, FRONT DOOR, OUTSIDE LH
main75731-12250-01i197903-198304
BLACK,BLACK
main75731-12250-03i198108-198304
APEX,GRAY,GRAY
main75731-12260i197903-198108
main75731-12270i197903-198108
main75731-12900i197903-198108
ORANGE
main75731-12901i198006-198108
MAROON
main75732-12160i198108-198304
main75732-12170i198108-198308
main75732-13080i198508-198707
WHITE
main75732-13110i198508-198707
BLACK
75756MOULDING, QUARTER BELT, RH
main75067-19035i197903-198304
FR
main75067-19045i197903-198304
FR
main75608-19035i198006-198006
RR,BLACK
main75608-19045i197903-198304
RR
main75608-19055i197903-198304
RR
main75608-19075i197903-198304
RR
main75660-13070i198508-198707
main75660-19175i197903-198108
main75660-19185i197903-198108
main75660-19195i198108-198304
main75660-19205i197908-198108
main75660-19215i198308-198508
75757MOULDING, QUARTER BELT, LH
main75068-19035i197903-198304
FR
main75068-19045i197903-198304
FR
main75609-19045i197903-198304
RR
main75609-19055i197903-198304
RR
main75609-19065i197903-198304
RR
main75609-19075i197903-198304
RR
main75670-13070i198508-198707
main75670-19175i197903-198108
main75670-19185i197903-198108
main75670-19195i198108-198304
main75670-19205i197908-198108
main75670-19215i198308-198508
75851MOULDING, ROCKER PANEL, RH
main75850-19115i198108-198304
main75850-19125i197903-198304
75852MOULDING, ROCKER PANEL, LH
main75860-19115i197903-198304
main75860-19125i198006-198006
75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH
main67913-12100-01i198108-198308
BLACK,BLACK,TRIM2#
main67913-12100-02i198308-198409
MAROON,RED/MAROON,TRIM3#
main67913-12100-03i198308-198508
GRAY,GRAY,TRIM1#
main67913-12100-04i197903-198304
BLUE,BLUE,TRIM8#
main67913-12100-06i197903-198008
LIGHT BROWN,BROWN,TRIM4#
main67913-12100-13i198508-198707
GRAY,GRAY,TRIM1#
main67913-12100-16i198008-198108
LIGHT BROWN,BROWN,TRIM4#
main67913-12100-26i198108-198308
DARK BROWN,BROWN,TRIM4#
main67913-12100-36i198409-198707
BROWN,BROWN,TRIM4#
main67913-12110-01i197903-198308
BLACK,BLACK,TRIM2#
main67913-12110-02i198308-198409
MAROON,RED/MAROON,TRIM3#
main67913-12110-03i198308-198508
GRAY,GRAY,TRIM1#
main67913-12110-04i197903-198304
BLUE,BLUE,TRIM8#
main67913-12110-06i197903-198008
LIGHT BROWN,BROWN,TRIM4#
main67913-12110-13i198508-198707
GRAY,GRAY,TRIM1#
main67913-12110-16i198008-198108
LIGHT BROWN,BROWN,TRIM4#
main67913-12110-26i198108-198308
DARK BROWN,BROWN,TRIM4#
main67913-12110-36i198409-198707
BROWN,BROWN,TRIM4#
main67913-12120-01i197903-198304
BLACK,BLACK,TRIM2#
main67913-12120-04i197903-198304
BLUE,BLUE,TRIM8#
main67913-12120-06i197903-198304
DARK BROWN,BROWN,TRIM4#
main67913-13030-01i198108-198308
BLACK,BLACK,TRIM2#
main67913-13030-02i198308-198508
MAROON,RED/MAROON,TRIM3#
main67913-13030-03i198308-198508
GRAY,GRAY,TRIM1#
main67913-13030-13i198508-198707
GRAY,GRAY,TRIM1#
main67913-13030-26i198108-198308
DARK BROWN,BROWN,TRIM4#
main67913-13030-36i198508-198707
BROWN,BROWN,TRIM4#
75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67914-12100-01i197903-198308
BLACK,BLACK,TRIM2#
main67914-12100-02i198308-198409
MAROON,RED/MAROON,TRIM3#
main67914-12100-03i198308-198508
GRAY,GRAY,TRIM1#
main67914-12100-04i197903-198304
BLUE,BLUE,TRIM8#
main67914-12100-06i197903-198008
LIGHT BROWN,BROWN,TRIM4#
main67914-12100-13i198508-198707
GRAY,GRAY,TRIM1#
main67914-12100-16i198008-198108
LIGHT BROWN,BROWN,TRIM4#
main67914-12100-26i198108-198304
DARK BROWN,BROWN,TRIM4#
main67914-12100-36i198409-198707
BROWN,BROWN,TRIM4#
main67914-12110-01i197903-198308
BLACK,BLACK,TRIM2#
main67914-12110-02i198308-198409
MAROON,RED/MAROON,TRIM3#
main67914-12110-03i198308-198508
GRAY,GRAY,TRIM1#
main67914-12110-04i197903-198304
BLUE,BLUE,TRIM8#
main67914-12110-06i197903-198008
LIGHT BROWN,BROWN,TRIM4#
main67914-12110-13i198508-198707
GRAY,GRAY,TRIM1#
main67914-12110-16i198008-198108
LIGHT BROWN,BROWN,TRIM4#
main67914-12110-26i198108-198308
DARK BROWN,BROWN,TRIM4#
main67914-12110-36i198409-198707
BROWN,BROWN,TRIM4#
main67914-12120-01i197903-198304
BLACK,BLACK,TRIM2#
main67914-12120-04i197903-198304
BLUE,BLUE,TRIM8#
main67914-12120-06i197903-198304
DARK BROWN,BROWN,TRIM4#
main67914-13030-01i198108-198308
BLACK,BLACK,TRIM2#
main67914-13030-02i198308-198508
MAROON,RED/MAROON,TRIM3#
main67914-13030-03i198308-198508
GRAY,GRAY,TRIM1#
main67914-13030-26i198108-198308
DARK BROWN,BROWN,TRIM4#
main67914-13030-33i198508-198707
GRAY,GRAY,TRIM1#
main67914-13030-36i198508-198707
BROWN,BROWN,TRIM4#
6821110030CHANNEL, DOOR WINDOW SET(FOR CANVAS DOOR)
main68211-10030
7586712030MOULDING, FRONT PANEL
main75867-12030
9017904188
main90179-04188
9018904014
main90189-04014
9026903018
main90269-03018
9038606008
main90386-06008
9353024016
main93530-24016
9356054012
main93560-54012

30 parts on this diagram · 7 diagrams in section

SIDE MOULDING for Toyota COROLLA

This section contains 76 genuine Toyota parts for the SIDE MOULDING system of the Toyota COROLLA. Key components include: GARNISH, DIVISION PILLAR, OUTER RH, GARNISH, DIVISION PILLAR, OUTER LH, MOULDING, ROOF DRIP SIDE FINISH, RH, MOULDING, QUARTER OUTSIDE, CENTER RH, COVER (FOR QUARTER OUTSIDE CENTER MOULDING, RH).
