Toyota COROLLA — SIDE MOULDING

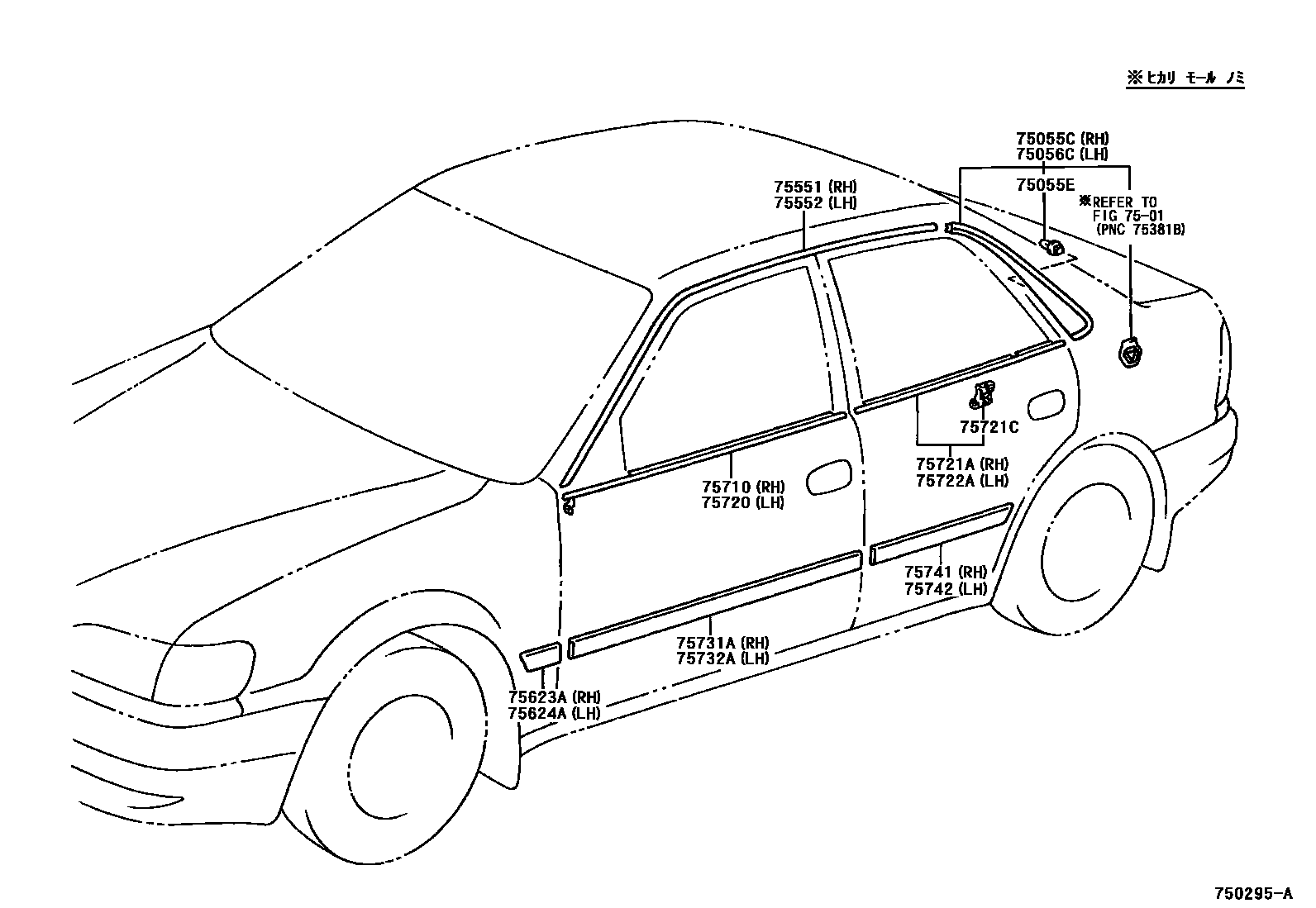

Parts diagram

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

75055CMOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, REAR RH

main75055-12140i199505-199605

main75055-12150i199605-199704

main75055-12160i199605-199704

main75055-12180i199704-200008

main75055-12190i199704-200008

main75055-12200i199704-200008

main75055-12220i199608-199704

30TH ANNIVERSARY *(A)

main75055-12230i199608-199704

main75055-12250i199904-200004

main75055-12260i200004-200008

75055ECLIP, ROOF DRIP MOULDING

main62955-12040×6i199505-199704

75056CMOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, REAR LH

main75056-12140i199605-199704

main75056-12150i199605-199704

main75056-12160i199605-199704

main75056-12180i199704-200008

main75056-12190i199704-200008

main75056-12200i199704-200008

main75056-12220i199608-199704

30TH ANNIVERSARY *(A)

main75056-12230i199608-199704

main75056-12250i199904-200004

main75056-12260i199804-199903

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-12580i199605-199704

main75551-12590i199605-199704

main75551-12600i199605-199704

main75551-12660i199704-200008

main75551-12670i199704-200008

main75551-12680i199704-200008

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-12580i199605-199704

main75552-12590i199505-199605

main75552-12600i199505-199605

main75552-12660i199704-200008

main75552-12670i199704-200008

main75552-12680i199704-200008

75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH

main75623-12700i199505-199704

main75623-12710-A0i199704-200008

SUPER WHITE 2,040

main75623-12710-B1i199704-200008

WARM GRAY PEARL ME.,1A5

main75623-12710-B4i199704-200008

SILVER ME,199

main75623-12710-B5i199704-200008

DK.GRAY ME.,1B4

main75623-12710-B6i199804-200008

CRYSTAL SILVER PEARL,1C1

main75623-12710-C1i199809-199810

main75623-12710-D0i199704-199804

RED M.M.,3K4

main75623-12710-G2i199704-200008

DK.GREEN M.M.,6P2

main75623-12710-J0i199704-200008

DK. BLUE MICA ME.,8L2

main75623-12720i199704-200008

main75623-12730-B0i199605-199704

GRAY MM,199

main75623-12730-C1i199605-199704

SILVER M.,040

main75623-12730-E0i199605-199704

LT. GRAYISH BEIGE ME,1A5

main75623-12740-A1i199904-200004

75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH

main75624-12700i199505-199704

main75624-12710-A0i199704-200008

SUPER WHITE 2,040

main75624-12710-B1i199704-200008

WARM GRAY PEARL ME.,1A5

main75624-12710-B4i199704-200008

SILVER ME,199

main75624-12710-B5i199704-200008

DK.GRAY ME.,1B4

main75624-12710-B6i199804-200008

CRYSTAL SILVER PEARL,1C1

main75624-12710-C1i199809-199810

main75624-12710-D0i199704-199804

RED M.M.,3K4

main75624-12710-G2i199704-200008

DK.GREEN M.M.,6P2

main75624-12710-J0i199704-200008

DK. BLUE MICA ME.,8L2

main75624-12720i199704-200008

main75624-12730-B0i199605-199704

GRAY MM,199

main75624-12730-C1i199605-199704

SILVER M.,040

main75624-12730-E0i199605-199704

LT. GRAYISH BEIGE ME,1A5

main75624-12740-A1i200004-200008

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-12610i199505-199605

main75710-12620i199605-199704

main75710-12630i199505-199605

main75710-12660i199704-200008

main75710-12670i199704-200008

main75710-12680i199704-200008

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-12610i199605-199704

main75720-12620i199605-199704

main75720-12630i199605-199704

main75720-12660i199704-200008

main75720-12670i199704-200008

main75720-12680i199704-200008

75721AMOULDING, REAR DOOR BELT, RH

main75721-12390i199505-199605

main75721-12400i199605-199704

main75721-12410i199505-199605

main75721-12440i199704-200008

main75721-12450i199704-200008

main75721-12460i199704-200008

75721CCLIP, DOOR GLASS WEATHERSTRIP

main68211-12240×12i199704-200008

75722AMOULDING, REAR DOOR BELT, LH

main75722-12390i199605-199704

main75722-12400i199605-199704

main75722-12410i199505-199605

main75722-12440i199704-200008

main75722-12450i199704-200008

main75722-12460i199704-200008

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-1A410i199505-199704

main75731-1A420-A0i199704-200008

SUPER WHITE 2,040

main75731-1A420-B1i199704-200008

WARM GRAY PEARL ME.,1A5

main75731-1A420-B3i199704-200008

SILVER ME,199

main75731-1A420-B4i199704-200008

DK.GRAY ME.,1B4

main75731-1A420-B6i199804-200008

CRYSTAL SILVER PEARL,1C1

main75731-1A420-C1i199809-199810

main75731-1A420-D0i199704-199804

RED M.M.,3K4

main75731-1A420-G2i199704-200008

DK.GREEN M.M.,6P2

main75731-1A420-J0i199704-200008

DK. BLUE MICA ME.,8L2

main75731-1A430i199704-200008

main75731-1A440-B0i199605-199704

GRAY MM,199

main75731-1A440-C1i199605-199704

SILVER M.,040

main75731-1A440-E0i199605-199704

LT. GRAYISH BEIGE ME,1A5

main75731-1A450-A1i199904-200004

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-1A250i199505-199704

main75732-1A260-A0i199704-200008

SUPER WHITE 2,040

main75732-1A260-B1i199704-200008

WARM GRAY PEARL ME.,1A5

main75732-1A260-B3i199704-200008

SILVER ME,199

main75732-1A260-B4i199704-200008

DK.GRAY ME.,1B4

main75732-1A260-B6i199804-200008

CRYSTAL SILVER PEARL,1C1

main75732-1A260-C1i199809-199810

main75732-1A260-D0i199704-199804

RED M.M.,3K4

main75732-1A260-G2i199704-200008

DK.GREEN M.M.,6P2

main75732-1A260-J0i199704-200008

DK. BLUE MICA ME.,8L2

main75732-1A270i199704-200008

main75732-1A280-B0i199605-199704

GRAY MM,199

main75732-1A280-C1i199605-199704

SILVER M.,040

main75732-1A280-E0i199605-199704

LT. GRAYISH BEIGE ME,1A5

main75732-1A290-A1i199904-200004

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-12890i199505-199704

main75741-1A010-A0i199704-200008

SUPER WHITE 2,040

main75741-1A010-B1i199704-200008

WARM GRAY PEARL ME.,1A5

main75741-1A010-B3i199704-200008

SILVER ME,199

main75741-1A010-B4i199704-200008

DK.GRAY ME.,1B4

main75741-1A010-B6i199804-200008

CRYSTAL SILVER PEARL,1C1

main75741-1A010-C1i199809-199810

main75741-1A010-D0i199704-199804

RED M.M.,3K4

main75741-1A010-G2i199704-200008

DK.GREEN M.M.,6P2

main75741-1A010-J0i199704-200008

DK. BLUE MICA ME.,8L2

main75741-1A020i199704-200008

main75741-1A030-B0i199605-199704

GRAY MM,199

main75741-1A030-C1i199605-199704

SILVER M.,040

main75741-1A030-E0i199605-199704

LT. GRAYISH BEIGE ME,1A5

main75741-1A040-A1i199904-200004

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-12880i199505-199704

main75742-12890-A0i199704-200008

SUPER WHITE 2,040

main75742-12890-B1i199704-200008

WARM GRAY PEARL ME.,1A5

main75742-12890-B3i199704-200008

SILVER ME,199

main75742-12890-B4i199704-200008

DK.GRAY ME.,1B4

main75742-12890-B6i199804-200008

CRYSTAL SILVER PEARL,1C1

main75742-12890-C1i199809-199810

main75742-12890-D0i199704-199804

RED M.M.,3K4

main75742-12890-G2i199704-200008

DK.GREEN M.M.,6P2

main75742-12890-J0i199704-200008

DK. BLUE MICA ME.,8L2

main75742-1A010i199704-200008

main75742-1A020-B0i199605-199704

GRAY MM,199

main75742-1A020-C1i199605-199704

SILVER M.,040

main75742-1A020-E0i199605-199704

LT. GRAYISH BEIGE ME,1A5

main75742-1A030-A1i199904-200004

17 parts on this diagram · 1 diagram in section

SIDE MOULDING for Toyota COROLLA

This section contains 17 genuine Toyota parts for the SIDE MOULDING system of the Toyota COROLLA. Key components include: EMBLEM & NAME PLATE (EXTERIOR & INTERIOR), MOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, REAR RH, CLIP, ROOF DRIP MOULDING, MOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, REAR LH, MOULDING, ROOF DRIP SIDE FINISH, RH.
