Toyota COROLLA — SIDE MOULDING
68211ACLIP, DOOR BELT MOULDING
75055CMOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, REAR RH
75056CMOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, REAR LH
75551EMOULDING, ROOF DRIP SIDE FINISH, RH
75552EMOULDING, ROOF DRIP SIDE FINISH, LH
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
RED MICA M,3K4
main75623-12650-13iAE10#,CE100,104,EE101..GT,SEG,SEL,SJ,XE; AE100,104,CE100,104,EE101..LX199205-199505
BLUISH GRAY ME,182
LIGHT WARM GRAY ME,2CD
GRAY M.M.,2CK ,2DC
ORANGE MICA M,3L1
MAGENTA MC.,3L3
DARK BLUE MICA M.,8G5
DK.BLUE MC.,8K8
BLUE M.M.,8L5
LAVENDER MICA M,925
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
BLACK TYPE
DARK BLUE MICA M,8J7
LIGHT BEIGE M,3K9
GRAYISH GREEN M,6M3
SILVER PEARL M,2AF ,2AJ ,2AK
SILVER ME,199
LIGHT WARM GRAY ME,2CD
GRAY M.M.,2CK ,2DB
ORANGE MICA M,3L1
MAGENTA MC.,3L3
MD.GRAISHGREEN MC.GR,6N1
DARK BLUE MICA M.,8G5
DK.BLUE MC.,8K8
BLUE M.M.,8L5
LAVENDER MICA M,925
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
DARK BLUEISH GRAY M,183
DARK BLUE MICA M,8J7
LIGHT BEIGE M,3K9
GRAYISH GREEN M,6M3
main75731-1A340-13iAE10#,CE100,104,EE101..4DS..(GT,SEG,SEL,XE); AE100,104,CE100,104,EE101..LX199205-199305
ROSE MICA M.GRAPHITE,3K5
BLUISH GRAY ME,182
SILVER ME,199 ,2CA ,2CB ,2CC; SILVER ME,199 ,2CB
LIGHT WARM GRAY ME,2CD
GRAY M.M.,2CK ,2DB
BLACK ME,205
MAGENTA MC.,3L3
DK.GREEN M.M.,6P2
DARK BLUE MICA M.,8G5
DK.BLUE MC.,8K8
BLUE M.M.,8L5
SILVER MICA M,192
BLACK M,205
SUPER RED 2,3E5
ORANGE MICA M,3L1
GRAYISH GREEN,6M3
DARK BLUE MICA M.,8G5
LAVENDER MICA M,925
75732AMOULDING, FRONT DOOR, OUTSIDE LH
DARK BLUE MICA M,8J7
LIGHT BEIGE M,3K9
GRAYISH GREEN M,6M3
SUPER WHITE 2,040
BLUISH GRAY ME,182
SILVER PEARL M,2AF ,2AJ ,2AK
GRAY M.M.,2CK
MAGENTA MC.,3L3
MD.GRAISHGREEN MC.GR,6N1
DK.GREEN M.M.,6P2
DARK BLUE MICA M.,8G5
BLUE M.M.,8L5
SILVER MICA M,192
BLACK M,205
SUPER RED 2,3E5
ORANGE MICA M,3L1
GRAYISH GREEN M,6M3
DARK BLUE MICA M.,8G5
LAVENDER MICA M,925
75740MOULDING ASSY, REAR DOOR BELT, LH
75741MOULDING, REAR DOOR, OUTSIDE RH
BLACK TYPE
DARK BLUEISH GRAY M,183
DARK BLUE MICA M,8J7
LIGHT BEIGE M,3K9
SUPER WHITE 2,040
RED MICA M,3K4
SILVER MICA M,192
BLUISH GRAY ME,182
LIGHT WARM GRAY ME,2CD
GRAY M.M.,2CK ,2DB
BLACK ME,205
MAGENTA MC.,3L3
MD.GRAISHGREEN MC.GR,6N1
DARK BLUE MICA M.,8G5
DK.BLUE MC.,8K8
BLUE M.M.,8L5
75742MOULDING, REAR DOOR, OUTSIDE LH
BLACK TYPE
LIGHT BEIGE M,3K9
GRAYISH GREEN M,6M3
SUPER WHITE 2,040
main75742-12840-13iAE10#,CE100,104,EE101..4DS..(GT,SEG,SEL,XE); AE100,104,CE100,104,EE101..LX199205-199305
SILVER ME,199 ,2CA ,2CB ,2CC; SILVER ME,199 ,2CB
LIGHT WARM GRAY ME,2CD
GRAY M.M.,2CK ,2DC
MAGENTA MC.,3L3
MD.GRAISHGREEN MC.GR,6N1
DK.GREEN M.M.,6P2
DARK BLUE MICA M.,8G5
DK.BLUE MC.,8K8
BLUE M.M.,8L5
6295512040SEAL, ROOF SIDE VENT
main62955-12040
9010905046
main90109-05046
9016840081
main90168-40081
9017905011
main90179-05011
9018904036
main90189-04036
9043004002
main90430-04002

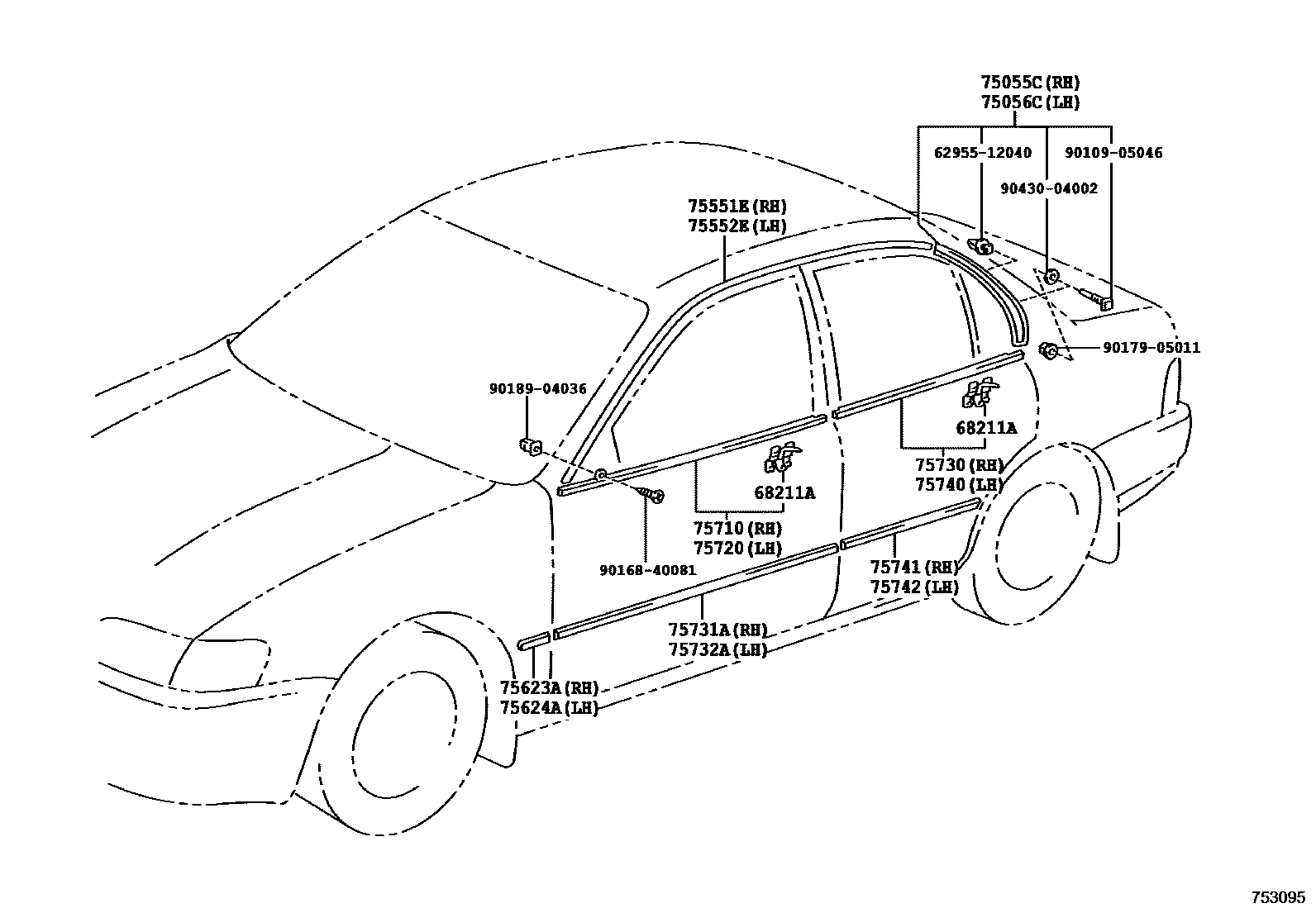

21 parts on this diagram · 3 diagrams in section
SIDE MOULDING for Toyota COROLLA
This section contains 42 genuine Toyota parts for the SIDE MOULDING system of the Toyota COROLLA. Key components include: RETAINER, QUARTER VENT LOUVER, FRONT DOOR PANEL & GLASS, REAR DOOR PANEL & GLASS, CLIP, DOOR BELT MOULDING, MOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, REAR RH.
