E
EPC Data

Toyota COROLLA — SIDE MOULDING

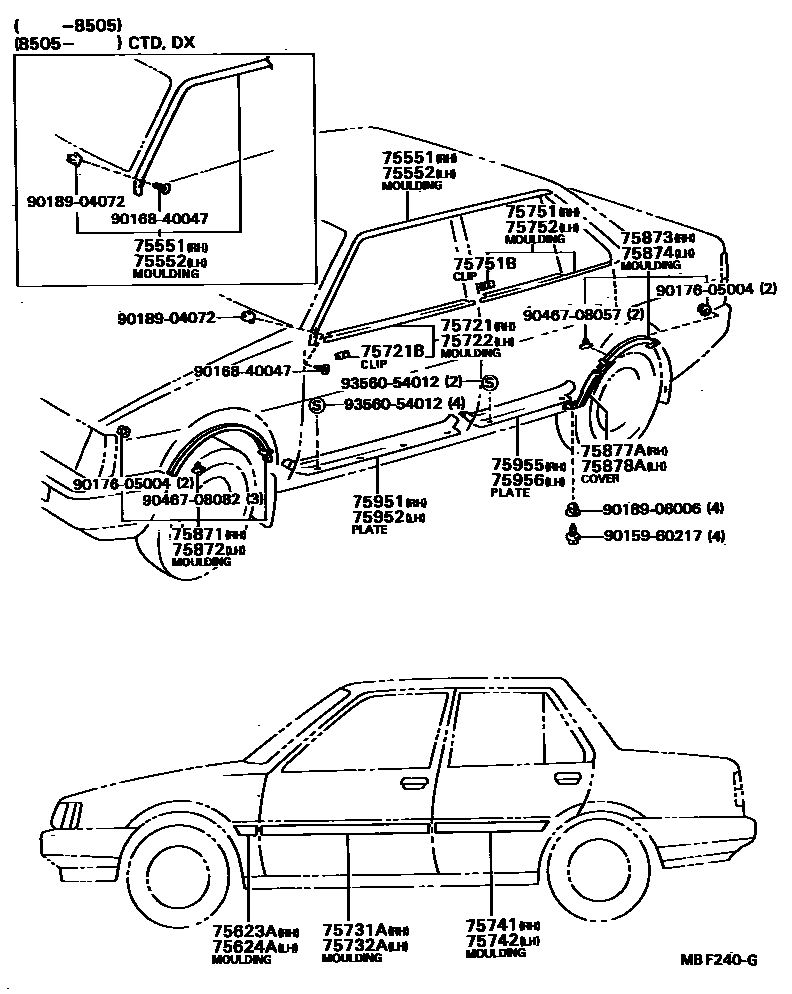

Parts diagram
75551MOULDING, ROOF DRIP SIDE FINISH, RH
main75551-12291i198505-198704
main75551-12330i198410-198704
main75551-12340i198410-198704
main75551-12350i198410-198704
main75551-19125i198305-198704
main75551-19135i198305-198505
main75551-19165i198305-198704
75552MOULDING, ROOF DRIP SIDE FINISH, LH
main75552-12291i198505-198704
main75552-12330i198410-198704
main75552-12340i198410-198704
main75552-12350i198410-198704
main75552-19125i198305-198704
main75552-19135i198305-198505
main75552-19165i198305-198704
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
main75623-12150-01i198305-198401
BLACK,BLACK
main75623-12150-03i198305-198401
GRAY,GRAY
main75623-12180i198401-198505
BLACK; SALOON,BLACK
main75623-12240-01i198410-198704
BLACK,BLACK
main75623-12280-02i198410-198704
RED,RED,3E6
main75623-12280-03i198410-198605
SILVER-M,SILVER,147
main75623-12280-08i198410-198704
WHITE,WHITE,041
main75623-12280-13i198605-198608
SILVER-M,SILVER METALLIC,164
main75623-12300-01i198505-198704
BLACK,BLACK; SALOON,BLACK,BLACK; W/COLOR BUMPER,BLACK,BLACK
main75623-12350i198505-198704
SILVER-M
main75623-12390-03i198606-198704
LIMITED,GRAY-M,DARK GRAY METALLIC,155
main75623-12390-08i198606-198704
LIMITED,WHITE,WHITE,041
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
main75624-12150-01i198505-198704
BLACK,BLACK
main75624-12150-03i198305-198401
GRAY,GRAY
main75624-12180i198401-198505
BLACK; SALOON,BLACK
main75624-12240-01i198410-198704
BLACK,BLACK
main75624-12280-02i198410-198704
RED,RED,3E6
main75624-12280-03i198410-198605
SILVER-M,SILVER,147
main75624-12280-08i198410-198704
WHITE,WHITE,041
main75624-12280-13i198605-198608
SILVER-M,SILVER METALLIC,164
main75624-12300-01i198505-198704
BLACK,BLACK; SALOON,BLACK,BLACK; W/COLOR BUMPER,BLACK,BLACK
main75624-12350i198505-198704
SILVER-M
main75624-12390-03i198606-198704
LIMITED,GRAY-M,DARK GRAY METALLIC,155
main75624-12390-08i198606-198704
LIMITED,WHITE,WHITE,041
75721MOULDING, FRONT DOOR BELT, RH
main75710-12360i198305-198505
main75710-12380i198401-198505
LIME
main75710-12390i198410-198508
main75710-12391i198508-198704
75721BCLIP(FOR FRONT DOOR BELT MOULDING SET)
main68211-12090×12i198401-198505
LIME
main68211-12121×14i198410-198508
main68211-12122×14i198508-198704
75722MOULDING, FRONT DOOR BELT, LH
main75720-12360i198305-198505
main75720-12380i198401-198505
LIME
main75720-12390i198410-198508
main75720-12391i198508-198704
75731AMOULDING, FRONT DOOR, OUTSIDE RH
main75731-12370-01i198401-198505
BLACK,BLACK
main75731-12370-03i198305-198401
GRAY,GRAY
main75731-12430i198401-198505
BLACK; SALOON,BLACK
main75731-12490-01i198410-198704
BLACK,BLACK
main75731-12530-01i198410-198704
BLACK,BLACK
main75731-12560-01i198410-198704
BLACK,BLACK
main75731-12590-02i198410-198704
RED,RED,3E6
main75731-12590-03i198410-198605
SILVER-M,SILVER,147
main75731-12590-08i198410-198704
WHITE,WHITE,041
main75731-12590-13i198605-198608
SILVER-M,SILVER METALLIC,164
main75731-12610-01i198505-198704
BLACK,BLACK; SALOON,BLACK,BLACK; W/COLOR BUMPER,BLACK,BLACK
main75731-12640i198505-198704
W/COLOR BUMPER
main75731-12660i198505-198704
SILVER-M
main75731-12720-03i198606-198704
LIMITED,GRAY-M,DARK GRAY METALLIC,155
main75731-12720-08i198606-198704
LIMITED,WHITE,WHITE,041
75732AMOULDING, FRONT DOOR, OUTSIDE LH
main75732-12210-01i198505-198704
BLACK,BLACK
main75732-12210-03i198305-198401
GRAY,GRAY
main75732-12270i198401-198505
BLACK; SALOON,BLACK
main75732-12350-01i198410-198704
BLACK,BLACK
main75732-12380-01i198410-198704
BLACK,BLACK
main75732-12390-01i198410-198704
BLACK,BLACK
main75732-12430-02i198410-198704
RED,RED,3E6
main75732-12430-03i198410-198605
SILVER-M,SILVER,147
main75732-12430-08i198410-198704
WHITE,WHITE,041
main75732-12430-13i198605-198608
SILVER-M,SILVER METALLIC,164
main75732-12450-01i198505-198704
BLACK,BLACK; SALOON,BLACK,BLACK; W/COLOR BUMPER,BLACK,BLACK
main75732-12480i198505-198704
W/COLOR BUMPER
main75732-12500i198505-198704
SILVER-M
main75732-12560-03i198606-198704
LIMITED,GRAY-M,DARK GRAY METALLIC,155
main75732-12560-08i198606-198704
LIMITED,WHITE,WHITE,041
75741MOULDING, REAR DOOR, OUTSIDE RH
main75741-12210-01i198401-198408
BLACK,BLACK
main75741-12210-03i198305-198401
GRAY,GRAY
main75741-12211-01i198505-198704
BLACK,BLACK
main75741-12240-01i198505-198704
LIME,BLACK,BLACK
main75741-12240-03i198305-198401
LIME,GRAY,GRAY
main75741-12320i198401-198505
BLACK; SALOON,BLACK
main75741-12340-01i198310-198408
BLACK,BLACK
main75741-12340-03i198310-198401
GRAY,GRAY
main75741-12380-01i198410-198505
BLACK,BLACK
main75741-12390-01i198410-198704
BLACK,BLACK
main75741-12450-01i198505-198704
BLACK,BLACK; SALOON,BLACK,BLACK; W/COLOR BUMPER,BLACK,BLACK
main75741-12460-01i198505-198704
BLACK,BLACK
main75741-12500i198505-198704
SILVER-M
main75741-12620i198609-198704
SALOON LIMITED
75742MOULDING, REAR DOOR, OUTSIDE LH
main75742-12200-01i198305-198401
BLACK,BLACK
main75742-12200-03i198305-198401
GRAY,GRAY
main75742-12201-01i198505-198704
BLACK,BLACK
main75742-12230-01i198505-198704
LIME,BLACK,BLACK
main75742-12230-03i198305-198401
LIME,GRAY,GRAY
main75742-12300i198401-198505
BLACK; SALOON,BLACK
main75742-12320-01i198310-198408
BLACK,BLACK
main75742-12320-03i198310-198401
GRAY,GRAY
main75742-12360-01i198410-198505
BLACK,BLACK
main75742-12370-01i198410-198704
BLACK,BLACK
main75742-12430-01i198505-198704
BLACK,BLACK; SALOON,BLACK,BLACK; W/COLOR BUMPER,BLACK,BLACK
main75742-12440-01i198505-198704
BLACK,BLACK
main75742-12480i198505-198704
SILVER-M
main75742-12600i198609-198704
SALOON LIMITED
75751MOULDING, REAR DOOR BELT, RH
main75730-12050i198401-198505
LIME
main75730-12060i198505-198704
75751BCLIP (FOR REAR DOOR BELT MOULDING SET)
main68211-12080×8i198305-198704
75752MOULDING, REAR DOOR BELT, LH
main75740-12140i198401-198505
LIME
main75740-12150i198305-198505
75871MOULDING, FRONT FENDER WHEEL OPENING, RH
main75871-19095i198410-198704
main75871-19115i198410-198704
W/O ROCKER MOULDING,BLACK
main75871-19135i198410-198704
W/ROCKER MOULDING,BLACK
main75871-19155i198410-198704
W/ROCKER MOULDING,RED(3E6)
main75871-19165i198410-198605
W/ROCKER MOULDING,SILVER(147)
main75871-19175i198410-198704
W/ROCKER MOULDING,WHITE(041)
main75871-19215i198605-198608
W/ROCKER MOULDING,SILVER(164)
main75871-19225i198606-198704
LIMITED,GRAY-M(155)
75872MOULDING, FRONT FENDER WHEEL OPENING, LH
main75872-19095i198410-198704
main75872-19115i198410-198704
W/O ROCKER MOULDING,BLACK
main75872-19135i198410-198704
W/ROCKER MOULDING,BLACK
main75872-19155i198410-198704
W/ROCKER MOULDING,RED(3E6)
main75872-19165i198410-198605
W/ROCKER MOULDING,SILVER(147)
main75872-19175i198410-198704
W/ROCKER MOULDING,WHITE
main75872-19215i198605-198608
W/ROCKER MOULDING,SILVER(164)
main75872-19225i198606-198704
LIMITED,GRAY-M(155)
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
main75873-19055i198410-198704
main75873-19065i198410-198704
BLACK
main75873-19085i198410-198704
RED(3E6)
main75873-19095i198410-198605
SILVER-M(147)
main75873-19105i198410-198704
WHITE(041)
main75873-19145i198605-198608
SILVER-M(164)
main75873-19155i198606-198704
LIMITED,GRAY-M(155)
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
main75874-19055i198410-198704
main75874-19065i198410-198704
BLACK
main75874-19085i198410-198704
RED(3E6)
main75874-19095i198410-198605
SILVER-M(147)
main75874-19105i198410-198704
WHITE(041)
main75874-19145i198605-198608
SILVER-M(164)
main75874-19155i198606-198704
LIMITED,GRAY-M(155)
75877ACOVER, QUARTER OPENING END, RH
main75877-12010i198410-198704
75878ACOVER, QUARTER OPENING END, LH
main75878-12010i198410-198704
75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH
main67913-12140-02i198305-198408
MAROON,RED/MAROON,TRIM3#
main67913-12140-03i198305-198704
GRAY,GRAY,TRIM1#
main67913-12140-04i198305-198704
BLUE,BLUE,TRIM8#
main67913-12140-06i198408-198704
BROWN,BROWN,TRIM4#
main67913-12150-03i198410-198704
GRAY,GRAY,TRIM1#
main67913-12150-06i198410-198704
BROWN,BROWN,TRIM4#
75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67913-12140-02i198305-198408
MAROON,RED/MAROON,TRIM3#
main67913-12140-03i198305-198704
GRAY,GRAY,TRIM1#
main67913-12140-04i198305-198704
BLUE,BLUE,TRIM8#
main67913-12140-06i198408-198704
BROWN,BROWN,TRIM4#
main67914-12140-03i198410-198704
GRAY,GRAY,TRIM1#
main67914-12140-06i198410-198704
BROWN,BROWN,TRIM4#
75955PLATE, REAR DOOR SCUFF, OUTSIDE RH
main67917-12050-02i198305-198408
MAROON,RED/MAROON,TRIM3#
main67917-12050-03i198305-198704
GRAY,GRAY,TRIM1#
main67917-12050-04i198305-198704
BLUE,BLUE,TRIM8#
main67917-12050-06i198408-198704
BROWN,BROWN,TRIM4#
75956PLATE, REAR DOOR SCUFF, OUTSIDE LH
main67917-12050-02i198305-198408
MAROON,RED/MAROON,TRIM3#
main67917-12050-03i198305-198704
GRAY,GRAY,TRIM1#
main67917-12050-04i198305-198704
BLUE,BLUE,TRIM8#
main67917-12050-06i198408-198704
BROWN,BROWN,TRIM4#
9015960217
main90159-60217
9016840047
main90168-40047
9017605004
main90176-05004
9017905004
main90179-05004
9018904072
main90189-04072
9018906006
main90189-06006
9046708057
main90467-08057
9046708082
main90467-08082
9356054012
main93560-54012

33 parts on this diagram · 4 diagrams in section

SIDE MOULDING for Toyota COROLLA

This section contains 61 genuine Toyota parts for the SIDE MOULDING system of the Toyota COROLLA. Key components include: MOULDING, ROOF DRIP SIDE FINISH, RH, MOULDING, ROOF DRIP SIDE FINISH, LH, MOULDING, ROOF DRIP SIDE FINISH, REAR RH, MOULDING, ROOF DRIP SIDE FINISH, REAR LH, COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH.
