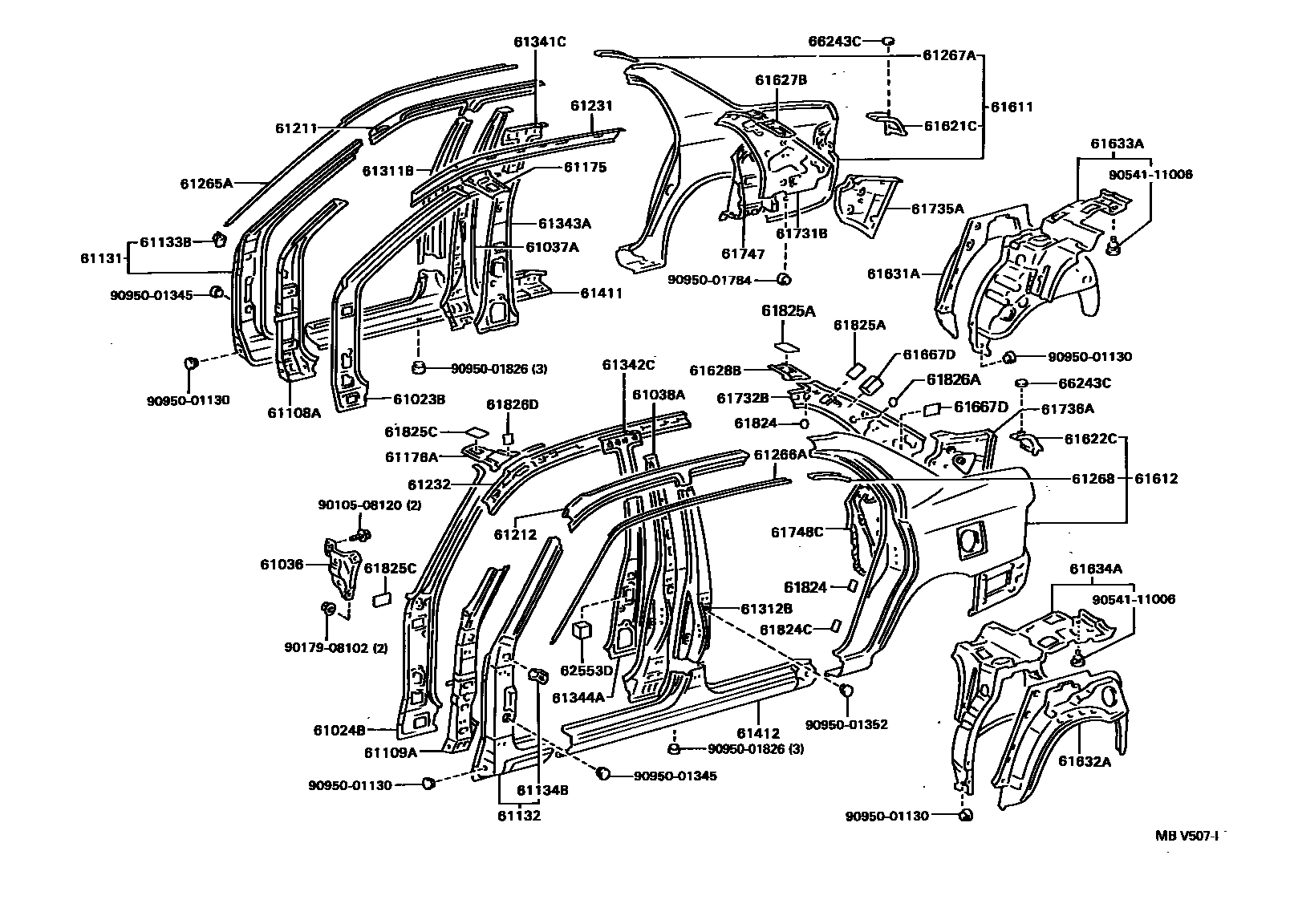

Toyota COROLLA — SIDE MEMBER

0001 1 0002 1 0003 1

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-12050iAE100,101,104,CE100,101,104,EE101199106-200008

main61023-12140iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109-200206

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-12050iAE100,101,104,CE100,101,104,EE101199106-200008

main61024-12140iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-12050iAE10#,CE10#,EE10#199106-199505

sub61036-12090

main61036-12090iAE10#,CE10#,EE10#199505

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-12050iAE10#,CE10#,EE10#..4DS,V,WG199106-200008

main61037-13020iAE109,CE10#,EE10#200008

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-12050iAE10#,CE10#,EE10#..4DS,V,WG199106-200008

main61038-13020iAE109,CE10#,EE10#200008

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-12110iAE10#,CE10#,EE10#199106

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-12100iAE10#,CE10#,EE10#199106

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-12350iAE10#,CE10#,EE10#..BZT,CTD,DX,DXJ,G,GL,L,LT,LX,XE199106-199704

main61131-12360iAE10#,CE100,104,EE101..4DS..(GT,SEG,SEL,XE)199106-199505

main61131-12410iAE101..SJ199205-199505

main61131-12420iAE101..SJ199205-199505

main61131-12420iAE101..3DS..GT199405-199505

main61131-12420iAE101..3DS..GT199205-199405

main61131-13020iAE109,CE106,108,109,EE10#199704-199705

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-12360iAE10#,CE10#,EE10#..4DS,V,WG199106-199704

main61132-12420iAE101..SJ199205-199505

main61132-12430iAE101..3DS..GT199205-199405

main61132-12430iAE101..SJ199205-199505

main61132-12430iAE101..3DS..GT199405-199505

main61132-13020iAE10#,CE10#,EE10#199704-199705

61133BBRACKET, FRONT BODY PILLAR ,OUTER RH

main61133-12190iAE10#,CE10#,EE10#199106

61134BBRACKET, FRONT BODY PILLAR OUTER, LH

main61133-12190iAE10#,CE10#,EE10#199106

61175REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH

main61175-12080iAE10#,CE10#,EE10#199106-199804

61176AREINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH

main61176-12080iAE10#,CE10#,EE10#199106-199804

61211RAIL, ROOF SIDE, OUTER RH

main61211-12290iAE10#,CE100,104,EE101..4DS199106-199505

main61211-12330iAE101..3DS199205-199505

main61211-13050iAE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG199109

61212RAIL, ROOF SIDE, OUTER LH

main61212-12290iAE10#,CE100,104,EE101..4DS199106-199505

main61212-12330iAE101..3DS199205-199505

main61212-13050iAE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG199109

61231RAIL, ROOF SIDE, INNER RH

main61231-12500iAE10#,CE100,104,EE101..4DS199106-199505

sub61231-12680

main61231-12680iAE10#,CE100,104..4DS..(GT,SEG,SEL,XE)199106-199505

main61231-12770iAE101..3DS199205-199505

main61231-12780iAE101..3DS199205-199505

main61231-13130iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109-200008

sub61231-13131

main61231-13131iAE109,CE10#,EE10#200008

sub61231-13181

main61231-13150iAE104,CE101;AE100,101..BZT,LT199109-200008

main61231-13170iCE101199804-200008

main61231-13170iAE100,101,104,CE100199705-200008

main61231-13180iCE102,108,EE104199401-200008

sub61231-13181

main61231-13181iCE102,EE104200008

61232RAIL, ROOF SIDE, INNER LH

main61232-12550iAE10#,CE100,104,EE101..4DS199106-199505

sub61232-12590

main61232-12590iAE10#,CE100,104..4DS..(GT,SEG,SEL,XE)199106-199505

main61232-12650iAE101..3DS199205-199505

main61232-12660iAE101..3DS199205-199505

main61232-13110iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109-200008

sub61232-13111

main61232-13111iAE109,CE10#,EE10#200008

sub61232-13161

main61232-13140iAE100,101,104,CE100..WG199109-200008

main61232-13150iAE100,101,104,CE100199705-200008

main61232-13150iCE101199804-200008

main61232-13160iCE102,108,EE104199401-200008

sub61232-13161

main61232-13161iCE102,EE104200008

61265ACHANNEL, ROOF DRIP SIDE, CENTER RH

main61265-12180iAE10#,CE100,104,EE101..4DS199106-199505

main61265-12200iAE101..3DS199205-199505

main61265-13030iAE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG199109

61266ACHANNEL, ROOF DRIP SIDE, CENTER LH

main61266-12180iAE10#,CE100,104,EE101..4DS199106-199505

main61266-12200iAE101..3DS199205-199505

main61266-13030iAE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG199109

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-12130iAE10#,CE100,104,EE101..4DS199106-199505

main61267-12160iAE101..3DS199205-199505

main61267-13040iAE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG199109

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-12130iAE10#,CE100,104,EE101..4DS199106-199505

main61268-12160iAE101..3DS199205-199505

main61268-13040iAE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG199109

61311BPILLAR, CENTER BODY, OUTER RH

main61311-12190iAE10#,CE10#,EE10#..4DS,V,WG199106

main61311-12220iAE101..3DS199205-199505

61312BPILLAR, CENTER BODY, OUTER LH

main61312-12230iAE10#,CE10#,EE10#..4DS,V,WG199106

main61312-12260iAE101..3DS199205-199505

61341CPILLAR, CENTER BODY, INNER UPPER RH

main61341-12090iAE10#,CE10#,EE10#..4DS,V,WG199106-200008

main61341-12130iAE109,CE10#,EE10#200008

61342CPILLAR, CENTER BODY, INNER UPPER LH

main61342-12090iAE10#,CE10#,EE10#..4DS,V,WG199106-200008

main61342-12130iAE109,CE10#,EE10#200008

61343APILLAR, CENTER BODY, INNER RH

main61343-12090iAE10#,CE10#,EE10#..4DS,V,WG199106-200008

main61343-12200iAE109,CE10#,EE10#200008

61344APILLAR, CENTER BODY, INNER LH

main61344-12090iAE10#,CE10#,EE10#..4DS,V,WG199106-200008

main61344-12200iAE109,CE10#,EE10#200008

61411PANEL, ROCKER, OUTER RH

main61411-12530iAE10#,CE10#,EE10#..4DS,V,WG199106-199704

main61411-12560iAE101..SJ199205-199505

main61411-12570iAE101..SJ199205-199505

main61411-12570iAE101..3DS..GT199405-199505

main61411-12570iAE101..3DS..GT199205-199405

main61411-13020iAE10#,CE10#,EE10#199704-200008

sub61411-13030

sub90950-01130

sub90950-01826

main61411-13030iAE109,CE10#,EE10#200008-200206

61412PANEL, ROCKER, OUTER LH

main61412-12520iAE10#,CE10#,EE10#..4DS,V,WG199106-199704

main61412-12550iAE101..3DS199205-199505

main61412-12560iAE101..SJ199205-199505

main61412-12560iAE101..3DS..GT199205-199405

main61412-12560iAE101..3DS..GT199405-199505

main61412-13020iAE109,CE106,108,109,EE10#199704-200008

sub61412-13030

sub90950-01130

sub90950-01826

main61412-13030iAE109,CE10#,EE10#200008

61611PANEL, QUARTER, RH

main61601-13370iCE106,EE102,106..02S199109-199704

sub61601-13371

sub90950-01890

main61601-13370iCE106,EE102,106..MTM..DX199201-199704

sub61601-13371

sub90950-01890

main61601-13371iAE109,EE103..ATM..DX;CE106,107,EE102..(4F,4FC,5F)..DX199704-199708

sub61601-13401

main61601-13381iAE100,101,104,CE100..WG199109-199704

sub61601-13383

sub90950-01890

main61601-13383iAE100,101,104,CE100,101199705-200008

main61601-13400iCE106,EE102,106..05S;AE109,CE108,109,EE103,104,107,108199109-199704

sub61601-13401

sub90950-01890

main61601-13401iCE106,107,EE102..05S;AE109,CE102,105,108,109,EE103,104199704

main61601-1E915iAE10#,CE100,104,EE101..4DS199106-199505

main61601-1E924iAE101..SJ199205-199505

main61601-1E925iAE101..3DS..GT199205-199505

main61601-1E926iAE101..3DS..GT199205-199505

61612PANEL, QUARTER, LH

main61602-13460iCE106,EE102,106..MTM..DX199201-199704

sub61602-13461

sub90950-01890

main61602-13460iCE106,EE102,106..02S199109-199704

sub61602-13461

sub90950-01890

main61602-13461iCE106,EE102..02S;CE106,EE102..MTM..DX199704-199708

sub61602-13481

main61602-13471iAE100,101,104,CE100..WG199109-199704

sub61602-13473

sub90950-01890

main61602-13473iAE100,101,104,CE100,101199705-200008

main61602-13480iCE106,EE102,106..05S;AE109,CE108,109,EE103,104,107,108199109-199704

sub61602-13481

sub90950-01890

main61602-13481iCE106,107,EE102..05S;AE109,CE102,105,108,109,EE103,104199704

main61602-1E924iAE10#,CE100,104,EE101..4DS199106-199505

sub61602-1E927

main61602-1E930iAE101..3DS199205-199505

main61602-1E931iAE101..SJ199205-199505

main61602-1E932iAE101..3DS..GT199205-199505

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-12360iAE10#,CE100,104,EE101..4DS199106-199505

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-12360iAE10#,CE100,104,EE101..4DS199106-199505

61627BEXTENSION, QUARTER PANEL, UPPER REAR RH

main61627-12070iAE10#,CE100,104,EE101..4DS199106-199505

61628BEXTENSION, QUARTER PANEL, UPPER REAR LH

main61628-12090iAE10#,CE100,104,EE101..4DS199106-199505

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-12210iAE10#,CE100,104,EE101..3DS,4DS199106-199505

main61631-12280iAE101..3DS..GT199205-199505

main61631-13070iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

main61631-13080iAE100,101,104,CE100,101..WG199109-200008

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-12210iAE10#,CE100,104,EE101..3DS,4DS199106-199505

main61632-12300iAE101..3DS..GT199205-199505

main61632-13060iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

main61632-13070iAE100,101,104,CE100,101..WG199109-200008

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-12560iAE101..3DS199205-199505

main61607-12916iAE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE199106-199505

main61607-12917iAE101..4DS..GT199106-199505

main61607-13070iCE106,107,EE102,106..05S;AE109,CE102,105,108,109,EE103,104,107,108199109

main61607-13080iAE100,101,104,CE100..WG199109-199705

main61607-13120iCE106..02S;EE102..4F..02S;CE107,EE102..(4FC,5F)..DX;AE109,CE106,EE103..ATM..DX199708

main61607-13120iCE106,EE102,106..02S199109-199708

main61607-13120iCE106,EE102,106..MTM..DX199201-200008

main61607-13230iAE100,101,104,CE100,101199705-200008

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-12540iAE101..3DS199205-199505

main61608-12914iAE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE199106-199505

main61608-12915iAE101..4DS..GT199106-199505

main61608-13070iCE106,107,EE102,106..05S;AE109,CE102,105,108,109,EE103,104,107,108199109

main61608-13080iAE100,101,104,CE100..WG199109-199705

main61608-13120iCE106..02S;EE102..4F..02S;CE107,EE102..(4FC,5F)..DX;AE109,CE106,EE103..ATM..DX199708

main61608-13120iCE106,EE102,106..02S199109-199708

main61608-13120iCE106,EE102,106..MTM..DX199201-200008

main61608-13220iAE100,101,104,CE100,101199705-200008

61667DSEAL, QUARTER PANEL

main61667-12050iAE101..3DS199205-199505

61731BPANEL, ROOF SIDE, INNER RH

main61731-12590iAE101..3DS..GT199205-199505

main61731-12610iAE101..3DS199205-199505

main61731-12910iAE10#,CE100,104,EE101..4DS199106-199505

main61731-13260iAE109,CE105,106,107,109,EE102,103,106,107199109

main61731-13280iAE100,104,CE100,101..LT199109-200008

main61731-13280iAE100..G199201-199804

main61731-13300iCE102,108,EE104,108199109

sub61731-13260

main61731-13320iAE100..LT199109-200008

main61731-13330iCE108,EE104199401

61732BPANEL, ROOF SIDE, INNER LH

main61732-12550iAE101..3DS199205-199505

main61732-12570iAE101..3DS..GT199205-199505

main61732-12570iAE101..3DS..GT199205-199505

main61732-12910iAE10#,CE100,104,EE101..4DS199106-199505

main61732-13260iAE109,CE105,106,107,109,EE102,103,106,107199109

main61732-13280iAE100..G199201-199804

main61732-13280iAE100,104,CE100,101..LT199109-200008

main61732-13310iCE102,108,EE104,108199109

sub61732-13260

main61732-13320iAE104,CE100..LT199109-200008

main61732-13330iEE106..4F199109-199401

main61732-13340iCE102199401

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-12904iAE10#,CE100,104,EE101..4DS199106-199505

sub61735-12906

main61735-13060iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

main61735-13070iAE100,101,104,CE100,101..WG199109-200008

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-12905iAE10#,CE100,104,EE101..4DS199106-199505

main61736-13060iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

main61736-13070iAE100,101,104,CE100,101..WG199109-200008

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61083-13010iAE100,101,104,CE100,101..WG199109-200008

main61747-12180iAE10#,CE100,104,EE101..4DS199106-199505

main61747-12901iAE101..3DS199205-199505

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61084-13010iAE100,101,104,CE100,101..WG199109-200008

main61748-12180iAE10#,CE100,104,EE101..4DS199106-199505

main61748-12901iAE101..3DS199205-199505

61824PLATE, NOISE CONTROL, NO.1

main61824-12040iAE10#,CE100,104..4DS..(GT,SEG,SEL,XE)199106-199505

61824CPAD, NOISE SHUTTER, NO.1

main61815-32020iAE100,101,104,CE100,101..WG199206-199905

110X70

main61824-12040iAE100,101,104,CE100,101..WG199206-199905

OD=60

main61824-12040iAE100..WG199205-199905

main61826-12020iAE101..3DS199106-199505

main61826-50010iAE100..WG199109-199205

main61827-12030iAE10#,CE100,104,EE101..4DS199401-199505

61825APLATE, NOISE CONTROL, NO.2

main61815-32020iAE100,104,CE100,104,EE101..DX,LX199106-199505

main61825-12010iAE100,101,104,CE100,101..WG199109-200008

main61825-12040iAE101..3DS199205-199505

61825CPAD, NOISE SHUTTER, NO.2

main61815-32020iAE10#,CE10#,EE10#..4DS,V,WG199106-199705

61826APLATE, NOISE CONTROL, NO.3

main61824-12040iAE10#,CE100,104..4DS..(GT,SEG,SEL)199106-199505

main61824-12040iAE10#,CE100,104,EE101..4DS199106-199505

main61826-12020iAE100,101,104,CE100,101..WG199109-200008

61826DPLATE, NOISE CONTROL, NO.3

main61824-12040iAE10#,CE10#,EE10#..(4DS,V,WG)..(CTD,DX,GL,GT,L,LX,SEG,SEL,XE)199106-199401

main61824-12040iAE101..3DS199205-199505

main61826-50010iAE100..WG199109-199705

62553DPAD, PILLAR, NO.3

main61667-12050iAE100,101,104,CE100199205-199705

150X50X50

main62151-12130iAE109,CE106,108,109,EE10#199704-200008

85X85X85

main62553-12120iAE10#,CE10#,EE10#..4DS,V,WG199106-200008

70X70X70

main62553-12120iAE109,CE10#,EE10#200008

main67812-12050iAE10#,CE10#,EE10#199106-199205

80X80X80

66243CPROTECTOR, REAR BODY, NO.1

main66243-13010iAE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG199109

main66243-20010iAE10#,CE100,104,EE101..4DS199106-199505

9010508120

main90105-08120

9017908102

main90179-08102

9054111006

main90541-11006

9095001130

main90950-01130

9095001345

main90950-01345

9095001352

main90950-01352

9095001784

main90950-01784

9095001826

main90950-01826

62 parts on this diagram · 3 diagrams in section
