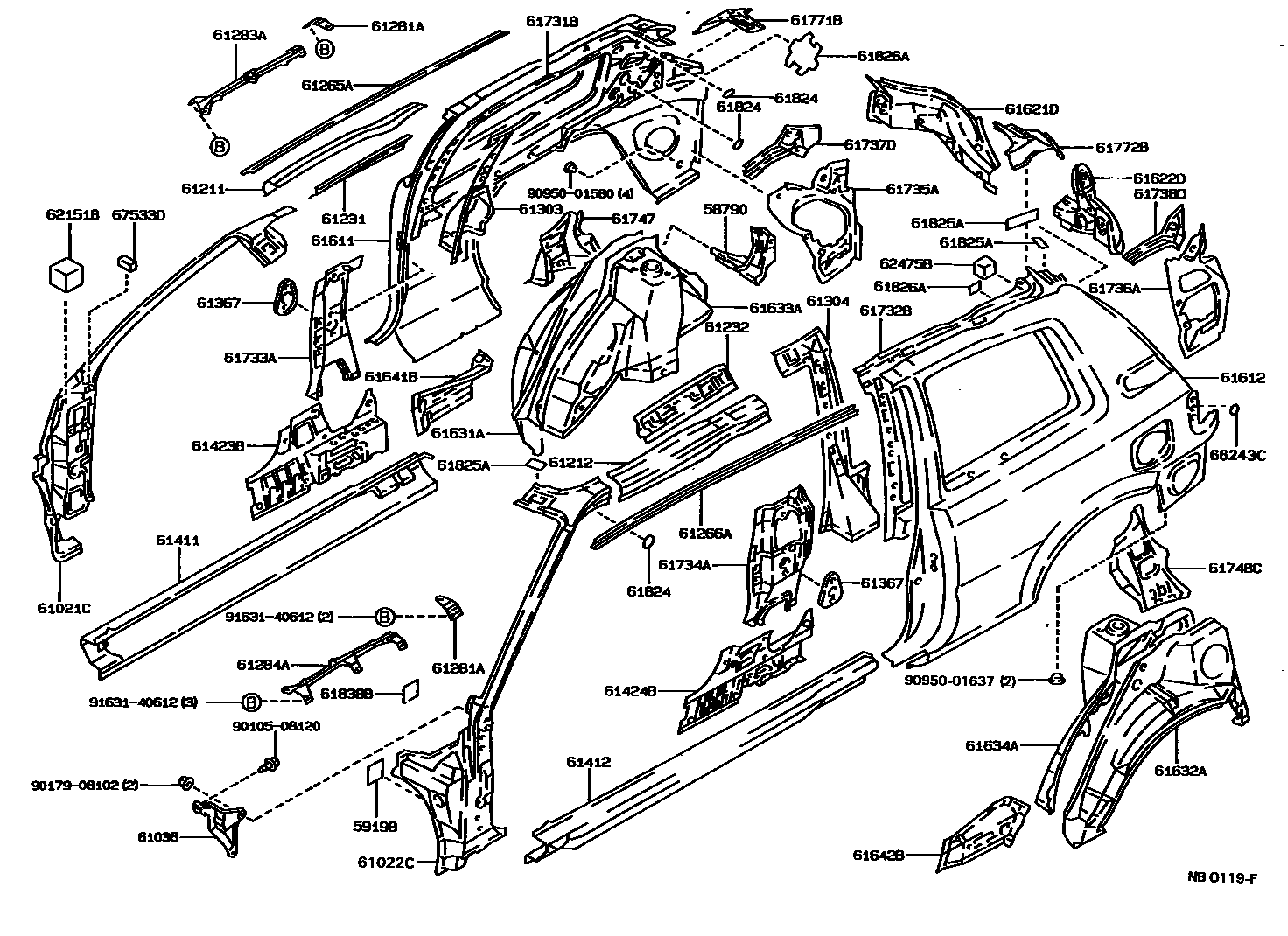

Toyota COROLLA — SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

58790CARRIER ASSY, JACK

main58790-12050iAE91,92,EE90..3D,5D198705-199205

main58790-13010iAE91,CE96,97,EE96,97,98..V,WG198708-199109

59198SEAL, NOISE SHUTTER

main59198-12010iAE9#,CE97,EE97199108-199205

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61021-12780iAE91..FXZI;AE91,CE90..(3D,4D,5D)..(CBR,DSL);AE92,95,EE90..DX,FXD,FXGT,FXL,GT,TX,XE198811-198905

main61021-13010iCE96,97,EE96,97,98198708-199109

main61021-13120iAE91..WG198708-199109

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61022-12790iAE9#,CE90,95,EE90..3D,4D,5D198905-199205

main61022-13010iCE96,97,EE96,97,98198708-199109

main61022-13120iAE91..WG198708-199109

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-12040iAE9#,CE9#,EE9#199108-199205

61211RAIL, ROOF SIDE, OUTER RH

main61211-12220iAE9#,CE90,95,EE90..4D198705-199106

main61211-12240iAE91,92,EE90..3D198705-199205

main61211-12250iAE91,EE90..5D198705-199205

main61211-13040iAE91,CE96,97,EE96,97,98..V,WG198708-199109

61212RAIL, ROOF SIDE, OUTER LH

main61212-12220iAE9#,CE90,95,EE90..4D198705-199106

main61212-12240iAE91,92,EE90..3D198705-199205

main61212-12250iAE91,EE90..5D198705-199205

main61212-13040iAE91,CE96,97,EE96,97,98..V,WG198708-199109

61231RAIL, ROOF SIDE, INNER RH

main61231-12430iAE9#,CE90,95,EE90..4D198705-199106

main61231-12470iAE91,92,EE90..3D198705-199205

main61231-12490iAE91,EE90..5D198705-199205

main61231-13060iCE96,97,EE96,97,98198708-199109

main61231-13080iAE91..WG198708-199109

61232RAIL, ROOF SIDE, INNER LH

main61232-12330iAE9#,CE90,95,EE90..4D198705-199106

main61232-12390iAE91,EE90..5D198705-199205

main61232-12400iAE91,92,EE90..3D198705-199205

main61232-13040iCE96,97,EE96,97,98198708-199109

main61232-13060iAE91..WG198708-199109

61265ACHANNEL, ROOF DRIP SIDE, CENTER RH

main61265-12110iAE9#,CE90,95,EE90..4D198705-199106

main61265-12130iAE91,92,EE90..3D198705-199205

main61265-12140iAE91,EE90..5D198705-199205

main61265-13020iAE91,CE96,97,EE96,97,98..V,WG198708-199109

61266ACHANNEL, ROOF DRIP SIDE, CENTER LH

main61266-12110iAE9#,CE90,95,EE90..4D198705-199106

main61266-12130iAE91,92,EE90..3D198705-199205

main61266-12140iAE91,EE90..5D198705-199205

main61266-13020iAE91,CE96,97,EE96,97,98..V,WG198708-199109

61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-12030×2iAE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE198705-199205

61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH

main61283-12030iAE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE198705-199205

61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH

main61284-12030iAE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE198705-199205

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-12070iAE91,92,EE90..3D198705-199205

main61303-12090iAE91,92..3D..(4FC,5F)198705-199205

61304REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH

main61304-12060iAE91,92,EE90..3D198705-199205

main61304-12080iAE91,92..3D..(4FC,5F)198705-199205

61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER

main61367-14010iAE91,92,EE90..3D198705-199205

61411PANEL, ROCKER, OUTER RH

main61411-12370iAE91,CE9#,EE9#..5D,V,WG199108-199205

main61411-12380iAE91,92,EE90..3D198705-199205

main61411-12390iAE91,92..3D..(4FC,5F)198705-198905

main61411-12440iAE91,92..3D198905-199205

61412PANEL, ROCKER, OUTER LH

main61412-12360iAE91,CE9#,EE9#..5D,V,WG199108-199205

main61412-12370iAE91,92,EE90..3D198705-199205

main61412-12380iAE91,92..3D..(4FC,5F)198705-198905

main61412-12430iAE91,92..3D198905-199205

61423BREINFORCEMENT, ROCKER PANEL, NO.3 RH

main61423-12040iAE91,92,EE90..3D198705-199205

61424BREINFORCEMENT, ROCKER PANEL, NO.3 LH

main61424-12030iAE91,92,EE90..3D198705-199205

61611PANEL, QUARTER, RH

main61601-13905iCE96,97,EE96,97,98198708-198908

sub61525-13010

main61601-13906iAE91..WG198708-199109

main61601-13908iCE96,97,EE96,97,98198908-199109

main61601-1A900iAE9#,CE90,95,EE90..4D198705-199106

main61611-12925iAE91,92,EE90..3D198705-199205

main61611-12926iAE91,92..3D..(4FC,5F)198705-198905

main61611-12927iAE91,EE90..5D198705-199205

main61611-1A900iAE91,92..3D198905-199205

61612PANEL, QUARTER, LH

main61602-13903iCE96,97,EE96,97,98198708-198908

sub61526-13010

main61602-13904iCE96,97,EE96,97,98..GL198708-198908

sub61526-13010

main61602-13907iAE91..WG198708-199109

main61602-13911iCE96,97,EE96,97,98..CTD,DX,L,STD198908-199109

main61602-13912iCE96,EE96,98..GL198908-199109

main61602-1E912iAE91,CE90,EE90..DX198705-199106

main61602-1E913iAE9#,CE90,95,EE90..GT,SE,TX,XE198705-199106

main61612-12907iEE90..FXD198705-198905

main61612-12908iAE91,92,EE90..3D..(FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS)198705-199205

main61612-12909iEE90..FXD198710-198905

main61612-12910iAE91,92..3D198908-199205

main61612-12911iAE91,92..3D..(4FC,5F)198705-198905

main61612-12912iAE91,92..3D..(4FC,5F)198710-198905

main61612-12914iAE91,EE90..5D198705-199205

main61612-12915iAE91..5D..FXZI;AE91,EE90..5D..CBR198710-198908

main61612-1A900iAE91,92..3D198905-199205

main61612-1A901iAE91,92..3D198905-199205

61621DTROUGH, BACK DOOR OPENING, RH

main61621-12901iAE91,92,EE90..3D,5D198705-198910

main61621-12905iAE91,92..3D,5D198910-199205

main61621-13010iAE91,CE96,97,EE96,97,98..V,WG198708-199109

61622DTROUGH, BACK DOOR OPENING, LH

main61622-12901iAE91,92,EE90..3D,5D198705-198910

main61622-12905iAE91,92..3D,5D198910-199205

main61622-13010iAE91,CE96,97,EE96,97,98..V,WG198708-199109

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-12230iAE9#,CE90,95,EE90..3D,4D,5D198705-199205

main61631-13040iCE96,EE96,98198708-199109

main61631-13050iCE97,EE97198708-199109

main61631-13060iAE91..WG198708-199109

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-12230iAE91,92,CE90,EE90..3D,4D,5D198705-199205

main61632-12280iAE95,CE95198710-199106

main61632-13030iCE96,EE96,98198708-199109

main61632-13040iCE97,EE97198708-199109

main61632-13050iAE91..WG198708-199109

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-12210iAE91,92,EE90..FXD,FXGTV,FXL,FXV,FXVS198705-199205

main61607-12220iAE91,92..FXG,FXGT,FXZI,FXZS198705-199205

main61607-12909iAE92..GT198705-199106

main61607-12911iAE91,CE90,EE90..4D198705-199106

main61607-12913iAE95,CE95198710-199106

main61607-13030iCE97,EE97,98;CE96,EE96..05S198708-199109

main61607-13040iCE96,EE96..02S198708-199109

main61607-13050iAE91..WG198708-199109

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-12220iAE91,92,EE90..FXD,FXGTV,FXL,FXV,FXVS198705-199205

main61608-12230iAE91,92..FXG,FXGT,FXZI,FXZS198705-199205

main61608-12907iAE92..GT198705-199106

main61608-12909iAE91,CE90,EE90..4D198705-199106

main61608-12911iAE95,CE95198710-199106

main61608-13030iCE97,EE97,98;CE96,EE96..05S198708-199109

main61608-13040iCE96,EE96..MTM..DX..05S199003-199109

main61608-13050iAE91..WG198708-199109

61641BGUSSET, QUARTER WHEEL HOUSE, RH

main61641-12040iAE9#,CE9#,EE9#..4D,5D,V,WG198705-199205

main61641-12050iAE91,92,EE90..3D198705-199205

61642BGUSSET, QUARTER WHEEL HOUSE, LH

main61642-12040iAE9#,CE9#,EE9#..4D,5D,V,WG198705-199205

main61642-12050iAE91,92,EE90..3D198705-199205

61731BPANEL, ROOF SIDE, INNER RH

main61731-12420iAE9#,CE90,95,EE90..4D198705-199106

main61731-12908iAE91,92,EE90..3D198705-199205

sub61731-12907

main61731-12909iAE91,EE90..5D198705-199205

main61731-13240iCE97,EE97,98;CE96,EE96..05S199003-199006

main61731-13250iAE91..WG198708-199109

61732BPANEL, ROOF SIDE, INNER LH

main61732-12380iAE9#,CE90,95,EE90..4D198705-199106

main61732-12908iAE91,92,EE90..3D198705-199205

sub61732-12907

main61732-12909iAE91,EE90..5D198705-199205

main61732-13240iCE97,EE97,98;CE96,EE96..05S199003-199006

main61732-13250iAE91..WG198908-199109

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-12130iAE91,92,EE90..3D198705-199205

61734APANEL, ROOF SIDE, INNER FRONT LH

main61734-12130iAE91,92,EE90..3D198705-199205

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-12270iAE91,92..3D,5D198905-198910

main61735-12271iAE91,92..3D,5D198910-199205

main61735-12902iAE9#,CE90,95,EE90..4D198705-199106

main61735-13040iCE96,97,EE96,97,98198708-199109

main61735-13050iAE91..WG198708-199109

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-12240iAE91,92,EE90..3D,5D198705-198905

main61736-12241iAE91,92..3D,5D198910-199205

main61736-12902iAE91,92,CE90,EE90..4D198705-199106

main61736-12904iAE95,CE95198710-199106

main61736-13040iAE91,CE96,97,EE96,97,98..(V,WG)..(CBR,DSL)198708-199109

main61736-13050iAE91..WG198908-199109

61737DREINFORCEMENT, ROOF SIDE, INNER RH

main61737-12100iAE91..FXG..EFI;AE91..3D..(FXG,FXZI);AE91,92,EE90..FXD,FXGT,FXGTV,FXL,FXV,FXVS,FXZS198705-199205

61738DREINFORCEMENT, ROOF SIDE, INNER LH

main61738-12110iAE91,92,EE90..3D,5D198705-199205

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-12100iAE9#,CE90,95,EE90..4D198705-199106

main61747-12120iAE91,92,EE90..3D198705-199205

main61747-12130iAE91,EE90..5D198705-199205

main61747-13010iAE91..WG198708-199109

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-12100iAE9#,CE90,95,EE90..4D198705-199106

main61748-12120iAE91,92,EE90..3D198705-199205

main61748-12130iAE91,EE90..5D198705-199205

main61748-13040iAE91..WG198708-199109

61771BFRAME, BACK DOOR OPENING UPPER CORNER, RH

main61771-12010iAE91,92,EE90..3D,5D198705-199205

61772BFRAME, BACK DOOR OPENING UPPER CORNER, LH

main61772-12010iAE91,92,EE90..3D,5D198705-199205

61824PLATE, NOISE CONTROL, NO.1

main61824-12020×4iAE9#,CE90..GT,SE198705-198710

main61824-12040×4iAE9#,CE90,95,EE90..4D198808-199106

61825APLATE, NOISE CONTROL, NO.2

main61825-12010×2iAE9#,CE90,95,97,EE90,97198705-199108

main61825-12020×2iAE91,92..(3D,5D)..(4FC,5F)198705-198808

90 X 65

61826APLATE, NOISE CONTROL, NO.3

main61826-12010×2iAE9#,CE90,95,EE90..4D198705-199106

main61826-12020×2iAE91..WG199008-199205

40 X 65

main61826-12030×2iAE91,92,EE90..3D,5D198705-198905

180X196

61838BPLATE, NOISE CONTROL, NO.5

main61838-12010×2iAE9#,CE90,95,97,EE90,97198705-199108

62151BPAD, COWL SIDE SILENCER

main62151-12100×4iAE9#,CE90,95,97,EE90,97198705-199106

main62151-12130×4iAE91,CE97,EE97..5D,WG199106-199205

85X85

62475BSEAL, ROOF SIDE, INNER

main62475-12040×2iAE91,92,EE90..3D,5D198705-199205

66243CPROTECTOR, REAR BODY, NO.1

main53393-12020×2iAE91,CE96,97,EE96,97,98..V,WG198908-199109

main66243-20010×4iAE9#,CE90,EE90..4D198905-198909

67533DPAD, FRONT DOOR LOWER FRAME GARNISH, RH

main67533-12010×2iAE9#,CE90,95,97,EE90,97198705-199108

9010508120

main90105-08120

9017908102

main90179-08102

9095001580

main90950-01580

9095001637

main90950-01637

9163140612

main91631-40612

56 parts on this diagram · 4 diagrams in section
