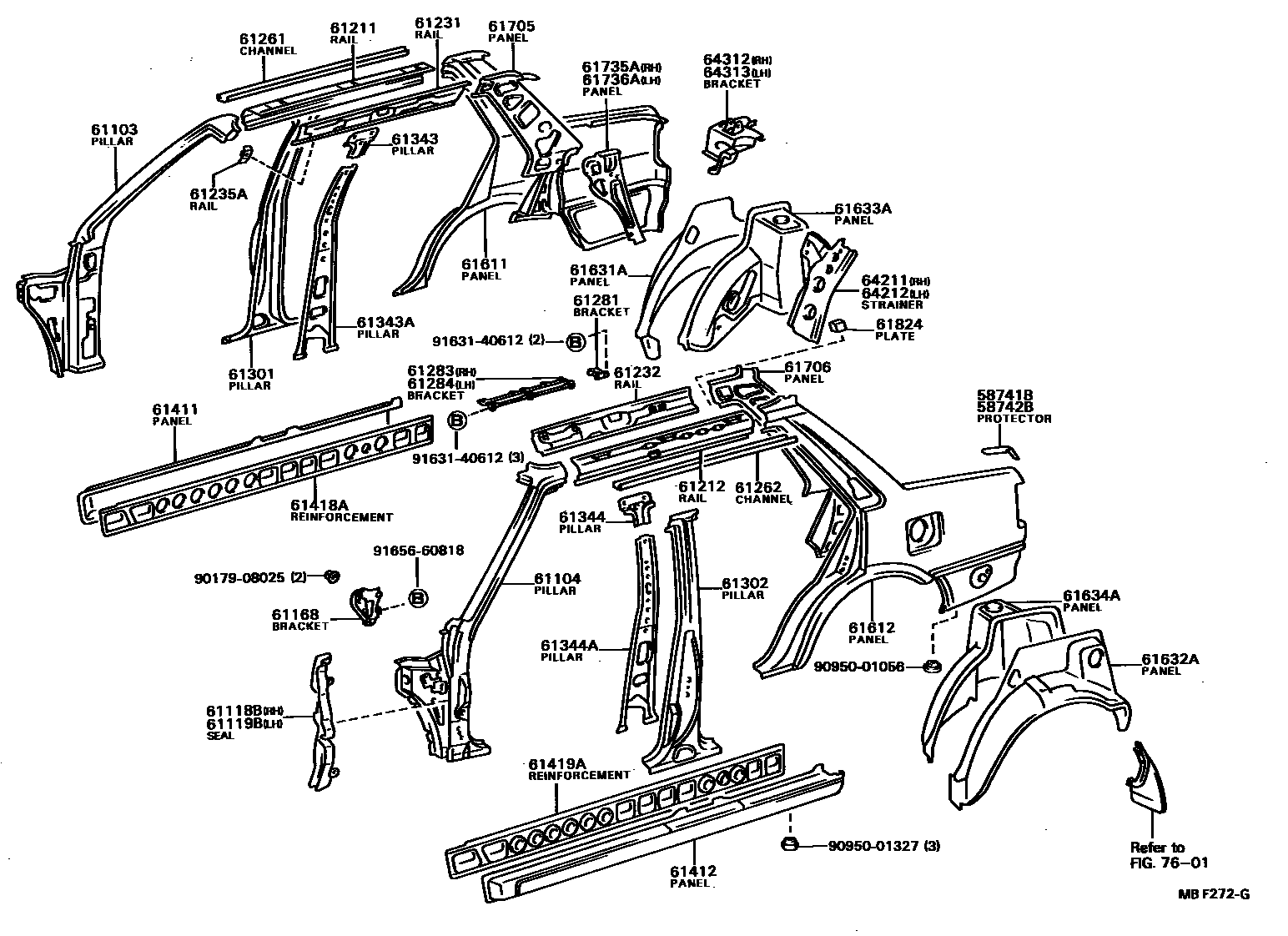

Toyota COROLLA — SIDE MEMBER

58741BPROTECTOR, QUARTER PANEL, RH

main58741-12020i198505-198704

58742BPROTECTOR, QUARTER PANEL, LH

main58742-12020i198505-198704

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-12390i198305-198704

main61021-12400i198401-198608

W/*PW OR ELECTRIC *DM

main61021-12460i198305-198505

main61021-12470i198401-198505

W/ELECTRIC *DM

main61021-12520i198511-198704

*TECS1,W/ELECTRIC *FM

main61021-12580i198605-198704

*TECS 1,W/ELECTRIC *DM

main61021-12600i198401-198605

*TECS 1,W/ELECTRIC *DM

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-12450i198305-198704

main61022-12460i198505-198608

LIME,W/ELECTRIC *DM; W/ELECTRIC *DM

main61022-12520i198305-198505

main61022-12530i198401-198505

W/ELECTRIC *DM

61118BSEAL, FRONT BODY PILLAR TO FRONT FENDER, RH

main61118-12020i198602-198704

61119BSEAL, FRONT BODY PILLAR TO FRONT FENDER, LH

main61119-12020i198602-198704

61168BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-12030i198305-198704

61211RAIL, ROOF SIDE, OUTER RH

main61211-12190i198305-198704

main61211-12200i198305-198704

main61211-12210i198410-198704

61212RAIL, ROOF SIDE, OUTER LH

main61212-12190i198305-198704

main61212-12200i198305-198704

main61212-12210i198410-198704

61231RAIL, ROOF SIDE, INNER RH

main61231-12330i198305-198512

W/O SUN ROOF

main61231-12340i198505-198512

W/SUN ROOF

main61231-12370i198305-198512

W/O SUN ROOF

main61231-12380i198305-198512

W/SUN ROOF

main61231-12540i198308-198704

*TECS 1

main61231-12570i198410-198704

61232RAIL, ROOF SIDE, INNER LH

main61232-12230i198305-198704

W/O SUN ROOF

main61232-12240i198305-198505

W/SUN ROOF

main61232-12270i198305-198512

W/O SUN ROOF

main61232-12280i198305-198512

W/SUN ROOF

main61232-12420i198410-198704

61235ARAIL, ROOF SIDE, INNER NO.3 RH

main61235-12040i198308-198704

*TECS 1

61261CHANNEL, ROOF DRIP, RH

main61265-12060i198305-198704

main61265-12080i198305-198704

main61265-12090i198410-198704

main61265-12100i198410-198704

61262CHANNEL, ROOF DRIP, LH

main61266-12060i198305-198704

main61266-12080i198305-198704

main61266-12090i198410-198704

main61266-12100i198410-198704

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-12020×2i198305-198505

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-12020i198505-198704

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-12020i198505-198704

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-12150i198305-198411

main61301-12160i198305-198411

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-12180i198305-198505

W/O *PW

main61302-12190i198305-198505

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-12060i198305-198704

61343APILLAR, CENTER BODY, INNER RH

main61343-12900i198305-198704

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-12060i198305-198704

61344APILLAR, CENTER BODY, INNER LH

main61344-12900i198305-198704

61411PANEL, ROCKER, OUTER RH

main61411-12290i198305-198704

main61411-12320i198410-198704

W/O ROCKER MOULDING

main61411-12330i198410-198704

W/ROCKER MOULDING

main61411-12340i198410-198704

61412PANEL, ROCKER, OUTER LH

main61412-12290i198305-198704

main61412-12310i198410-198704

W/O ROCKER MOULDING

main61412-12320i198410-198704

W/ROCKER MOULDING

main61412-12330i198410-198704

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-12070i198305-198704

main61418-12090i198410-198704

61419AREINFORCEMENT, ROCKER PANEL, LH

main61419-12070i198305-198704

main61419-12090i198410-198704

61611PANEL, QUARTER, RH

main61601-12905i198410-198606

main61601-12906i198606-198704

main61601-12907i198410-198704

W/ROCKER MOULDING

main61601-12909i198410-198704

W/O ROCKER MOULDING

main61601-12910i198410-198704

main61601-12912i198501-198609

main61601-12914i198609-198704

main61601-1A780i198305-198704

main61601-1A830i198305-198501

main61601-1E200i198410-198704

61612PANEL, QUARTER, LH

main61602-12905i198410-198606

W/O FUEL LID OPENER

main61602-12906i198410-198606

W/FUEL LID OPENER

main61602-12907i198606-198704

W/FUEL LID OPENER

main61602-12908i198410-198704

W/ROCKER MOULDING

main61602-12910i198410-198704

W/O ROCKER MOULDING

main61602-12911i198606-198704

W/O FUEL LID OPENER

main61602-12913i198410-198608

main61602-12915i198608-198704

main61602-12916i198501-198609

main61602-12920i198609-198704

main61602-1A360i198305-198704

W/O FUEL LID OPENER

main61602-1A370i198305-198401

W/FUEL LID OPENER

main61602-1A460i198305-198501

main61602-1A800i198410-198704

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-12160i198508-198704

main61631-12170i198305-198508

main61631-12180i198410-198704

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-12160i198508-198704

main61632-12170i198305-198508

main61632-12180i198410-198704

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-12900i198505-198704

main61607-12901i198505-198704

main61607-12902i198410-198704

main61607-12903i198305-198401

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-12900i198305-198505

main61608-12901i198505-198704

main61608-12902i198305-198505

W/O *FFS

main61608-12903i198401-198505

W/*FFS

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-12939i198305-198704

main61705-12941i198305-198704

main61705-12947i198410-198704

main61705-12948i198410-198704

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-12941i198305-198704

main61706-12943i198305-198704

main61706-12952i198410-198704

main61706-12953i198410-198704

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-12190i198305-198704

main61735-12220i198410-198601

main61735-12230i198601-198704

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-12160i198305-198704

main61736-12190i198410-198601

main61736-12200i198601-198704

61824PLATE, NOISE CONTROL, NO.1

main61824-12010×4i198305-198704

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-12060i198305-198704

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-12060i198305-198704

64312BRACKET, PACKAGE TRAY, RH

main64312-12900i198305-198704

64313BRACKET, PACKAGE TRAY, LH

main64313-12900i198305-198704

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9017908025

main90179-08025

9095001056

main90950-01056

9095001327

main90950-01327

9163140612

main91631-40612

9165660818

main91656-60818

48 parts on this diagram · 4 diagrams in section

SIDE MEMBER for Toyota COROLLA

This section contains 68 genuine Toyota parts for the SIDE MEMBER system of the Toyota COROLLA. Key components include: PROTECTOR, QUARTER PANEL, RH, PROTECTOR, QUARTER PANEL, LH, PILLAR SUB-ASSY, FRONT BODY, RH, PILLAR SUB-ASSY, FRONT BODY, LH, SEAL, FRONT BODY PILLAR TO FRONT FENDER, RH.
