Toyota COROLLA — SHORT BLOCK ASSEMBLY

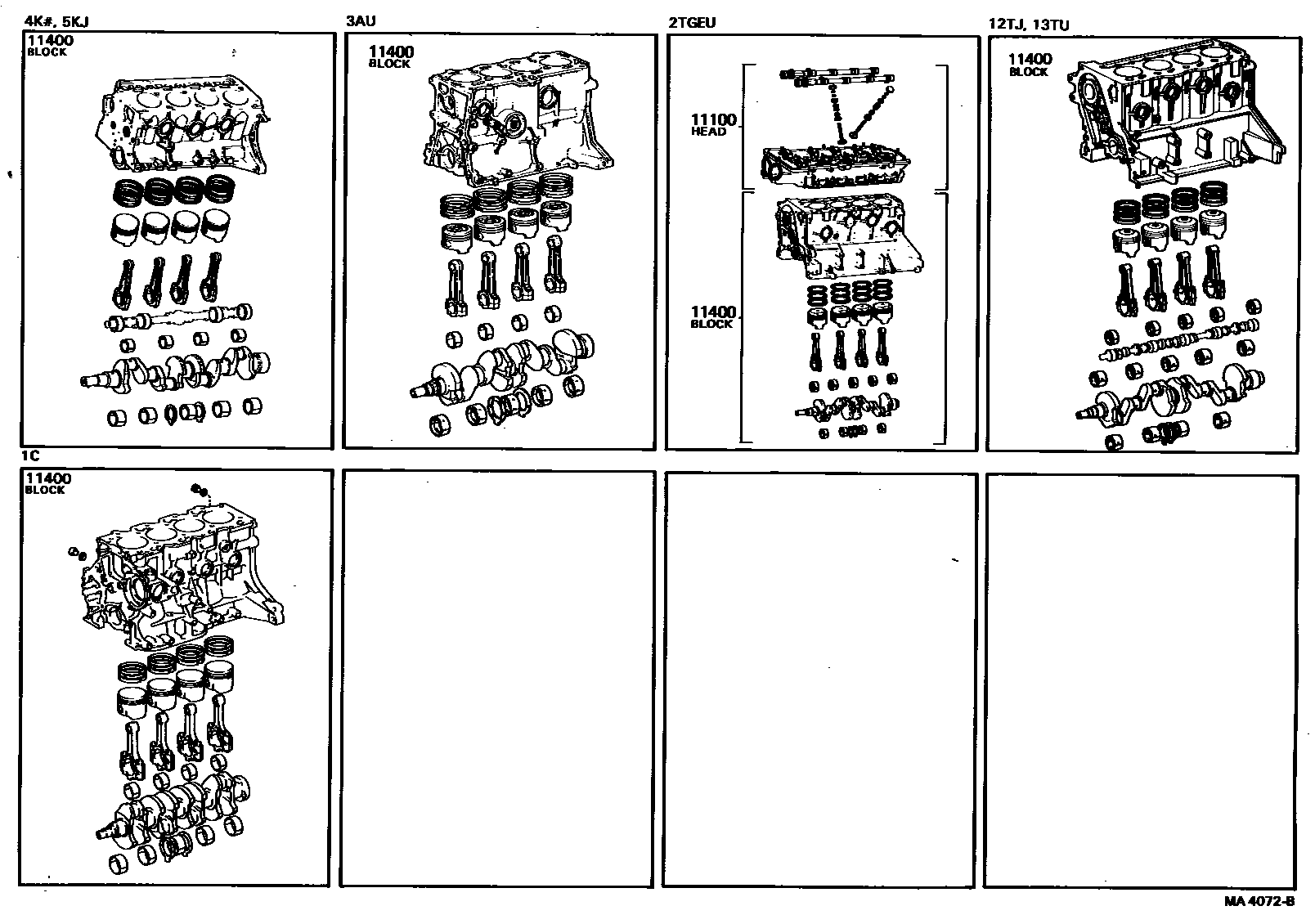

Parts diagram

11100HEAD ASSY, SHORT

main11100-27031i197903-198108

main11100-27040i198108-198304

11400BLOCK ASSY, SHORT

main11400-13010i197903-198108

main11400-13020i198108-198207

main11400-13030i198207-198411

main11400-13031i198411-198707

main11400-13040i198308-198411

main11400-13041i198411-198707

main11400-15020i197903-198303

main11400-15040i198303-198304

main11400-18011i197908-198108

main11400-27051i197903-198108

main11400-27070i197908-198108

main11400-27080i198108-198207

main11400-27081i198207-198308

main11400-27090i198108-198207

main11400-27091i198207-198304

main11400-64020i198202-198303

main11400-64021i198303-198307

main11400-64022i198307-198508

main11400-64100i198508-198608

main11400-64101i198608-198707

main11400-64110i198508-198608

main11400-64111i198608-198707

2 parts on this diagram · 1 diagram in section

SHORT BLOCK ASSEMBLY for Toyota COROLLA

This section contains 2 genuine Toyota parts for the SHORT BLOCK ASSEMBLY system of the Toyota COROLLA. Key components include: HEAD ASSY, SHORT, BLOCK ASSY, SHORT.
