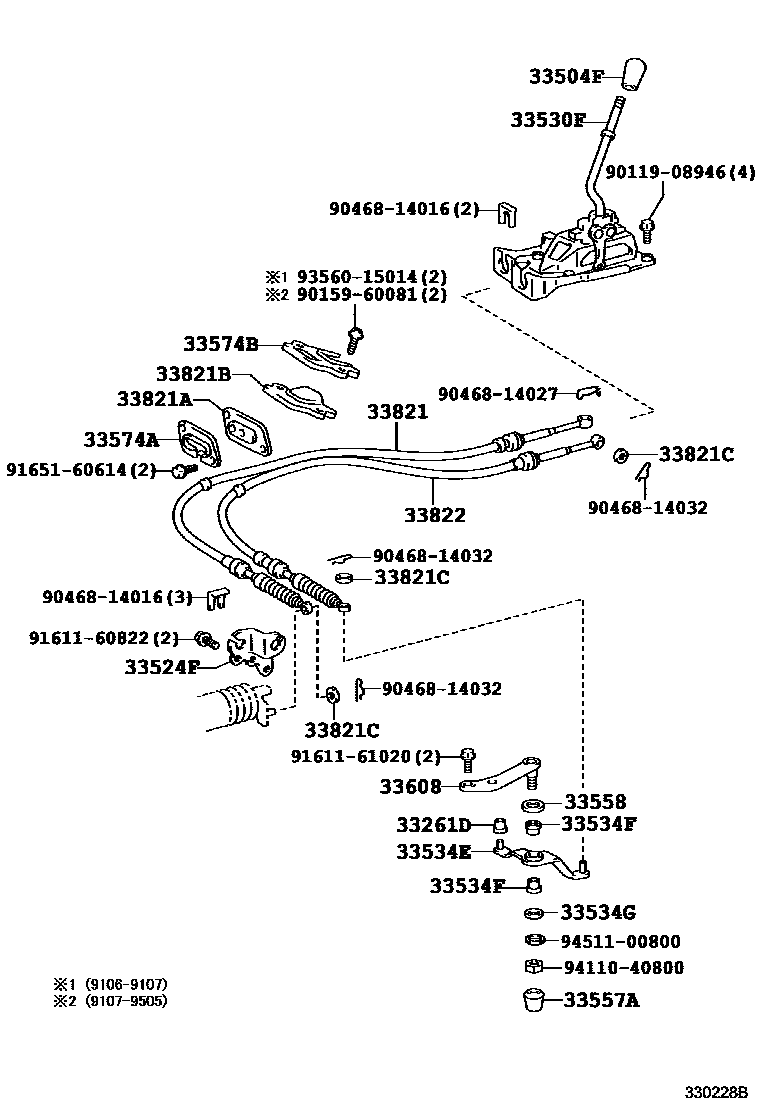

Toyota COROLLA — SHIFT LEVER & RETAINER
33261DBUSH (FOR SHIFT & SELECT LEVER)
33504FKNOB SUB-ASSY, SHIFT LEVER
DK.CHARCOAL,TRIM1#
DARK BLUE,TRIM8#
TAUPE,TRIM9#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
BLACK,TRIM1#
GRAY,TRIM1#
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
DARK SMOKE GRAY,TRIM1#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
TAUPE,TRIM9#
DK.CHARCOAL,TRIM1#
33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33534ECRANK, SELECTING BELL, NO.2
33534FBUSH (FOR SELECTING BELLCRANK NO.2)
33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)
33557ACOVER, SELECTING BELLCRANK DUST, NO.1
33558COVER, SELECTING BELLCRANK DUST, NO.2
33574ARETAINER, SHIFT CABLE GROMMET, NO.1
main33574-12040iAE100,101,CE100,106,108,EE10#..ATM..(CTD,DX,G,GL,L,LT,LX,SEG,SEL,SJ,XE)199106-199305
33574BRETAINER, SHIFT CABLE GROMMET, NO.2
33608SUPPORT SUB-ASSY, SELECTING BELLCRANK
33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
NIPPON CABLE
33821AGROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33821BGROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE)
33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
main90201-08077×2iEE102,103..4F;EE103..5F..GL;AE10#,CE100,104,106,108,109,EE101,104,106,107,108..MTM199106
main90201-10042iEE102,103..4F;EE103..5F..GL;AE10#,CE100,104,106,108,109,EE101,104,106,107,108..MTM199106
SHIFT LEVER SIDE
33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
9011908946
main90119-08946
9015960081
main90159-60081
9046814016
main90468-14016
9046814027
main90468-14027
9046814032
main90468-14032
9161160822
main91611-60822
9161161020
main91611-61020
9165160614
main91651-60614
9356015014
main93560-15014
9411040800
main94110-40800
9451100800
main94511-00800
28 parts on this diagram · 11 diagrams in section
SHIFT LEVER & RETAINER for Toyota COROLLA
This section contains 112 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota COROLLA. Key components include: MOUNTING, BRACKET SUB-ASSY, SHIFT LOCK SOLENOID, BUSH (FOR SHIFT & SELECT LEVER), PIN, LEVER LOCK (FOR CONTROL SHIFT LEVER), PLATE SUB-ASSY, SHIFT LEVER.
