Toyota COROLLA — RADIATOR GRILLE

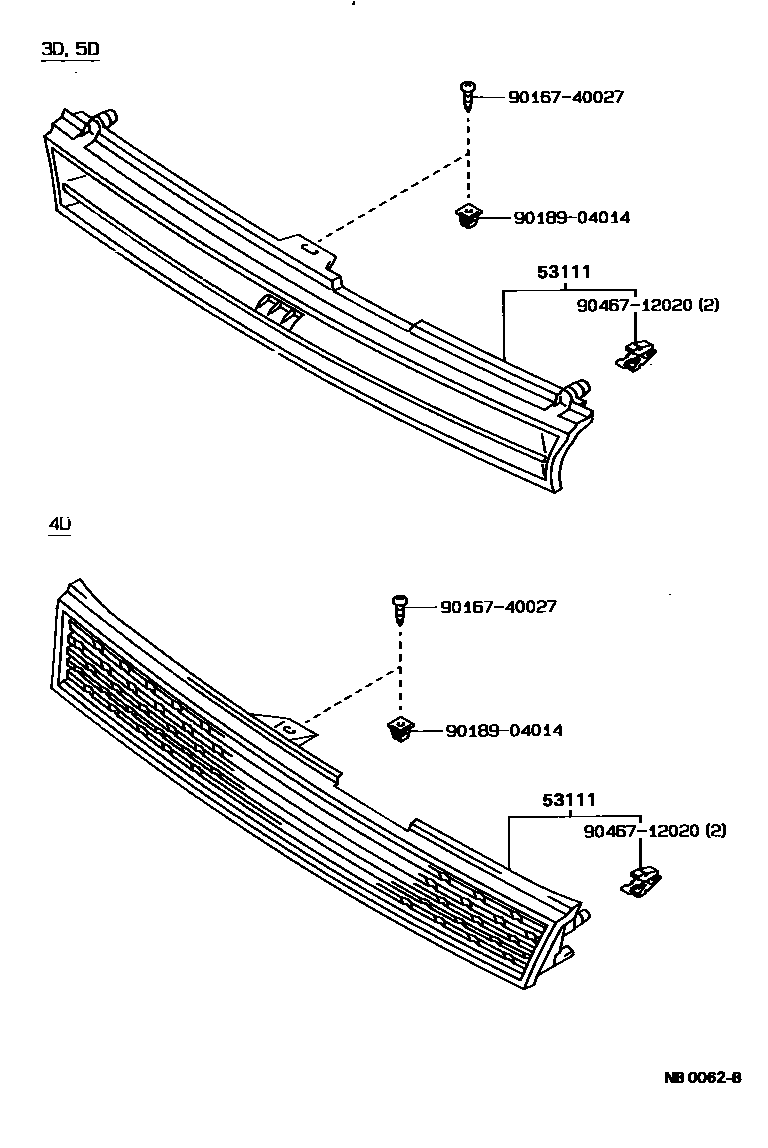

Parts diagram

53111GRILLE, RADIATOR

main53101-12610i198705-198905

main53101-12620i198705-198905

main53101-12660i198705-198905

main53101-12710-02i198705-198905

main53101-12710-03i198705-198905

main53101-12710-04i198705-198905

main53101-12710-08i198705-198905

main53101-12770i198905-199205

main53101-12780i198905-199109

main53101-12790i198905-199205

main53101-13010i198708-198908

main53101-13011i198908-199109

9016740027

main90167-40027

9018904014

main90189-04014

9046712020

main90467-12020

4 parts on this diagram · 2 diagrams in section

RADIATOR GRILLE for Toyota COROLLA

This section contains 14 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota COROLLA. Key components include: GRILLE, RADIATOR, DOOR, HEADLAMP, RH, DOOR, HEADLAMP, LH, GARNISH FRONT FENDER, RH, GARNISH FRONT FENDER, LH.
